Model No: TRJD0115BHNL

10 Base-T RJ45 Ethernet connector with magnetic

minimum order :

2 pieces

Stock Time :

7Day

Quantity :

add to cart

Contact Now

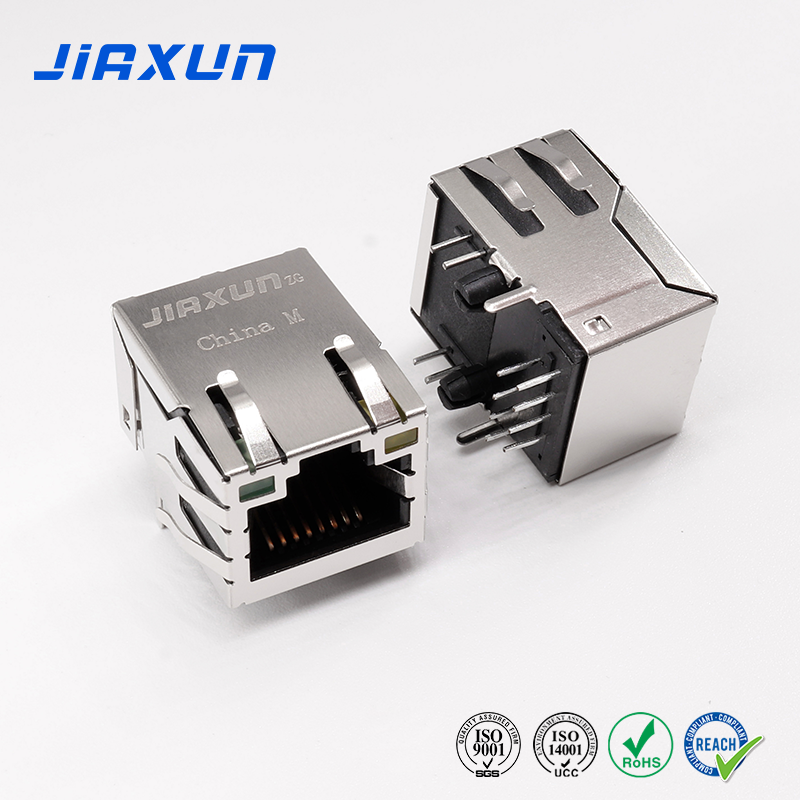

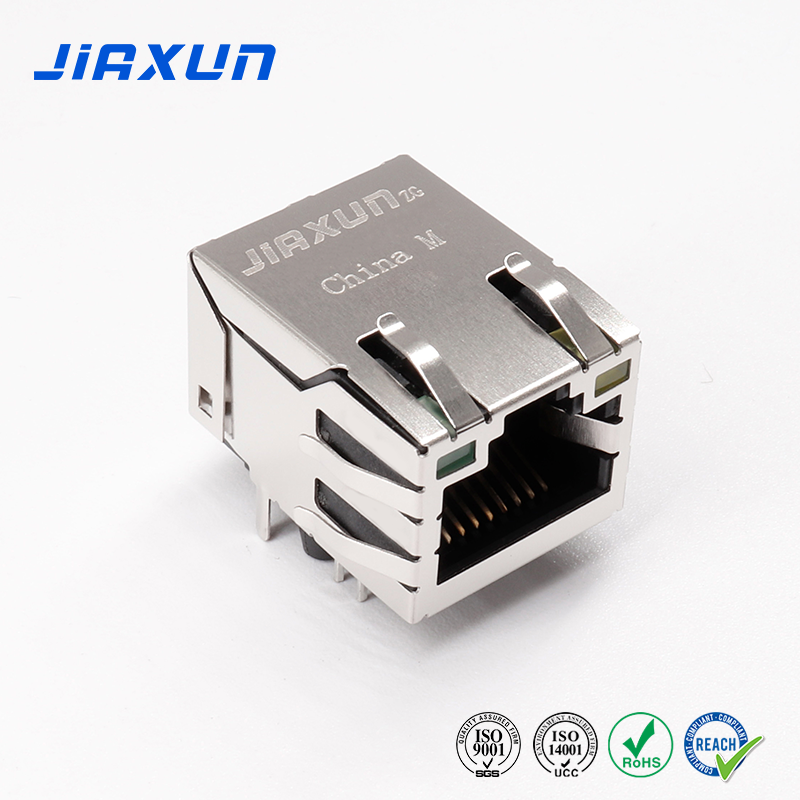

Model Number:TRJD0115BHNL
Type:RJ45 Female Connector
Place of Origin:Guangdong, China
Brand:Jiaxun
Packaging:Tray package
Description:RJ45 Female Connector
Speed:10/100M
Tab:Up
Port:1X1
Left Led:Green
Right Led:Yellow
Trxcom p/n:TRJD0115BHNL
Pin type:THT Soldering
UL:E321120
Sample:Free sample supported

Product Description

Product Name	Factory 10 Base-T RJ45 Ethernet connector TRJD0115BHNL with magnetic
Jiaxun p/n	TRJD0115BHNL
Cross p/n	51F-1201GYD2
Package	1000pcs in one carton

ELECTRICAL SPECFICATIONS @25C

Electrical Specifications @25℃
1.Turns Ratios: Pri:Sec = 1CT:1CT
2.OCL(@100KHz,0.1V,8mA DC Bias):
350uH MIN
3.Insertion Loss:
0.5～100MHz:-1.1dB MAX
4.Return Loss:
0.5～40MHz:-18dB MIN
40.1～100MHz:-12-20LOG(f/80)dB MIN.
5.Crosstalk:
0.5～40MHz:-35dB MIN
40.1～100MHz:-33-20LOG(f/50)dB MIN.
6.Common Mode Rejection Ratio:
0.5～100MHz:-30dB MIN
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: -40℃～+85℃.

RJ45 Female Connector

Details Images

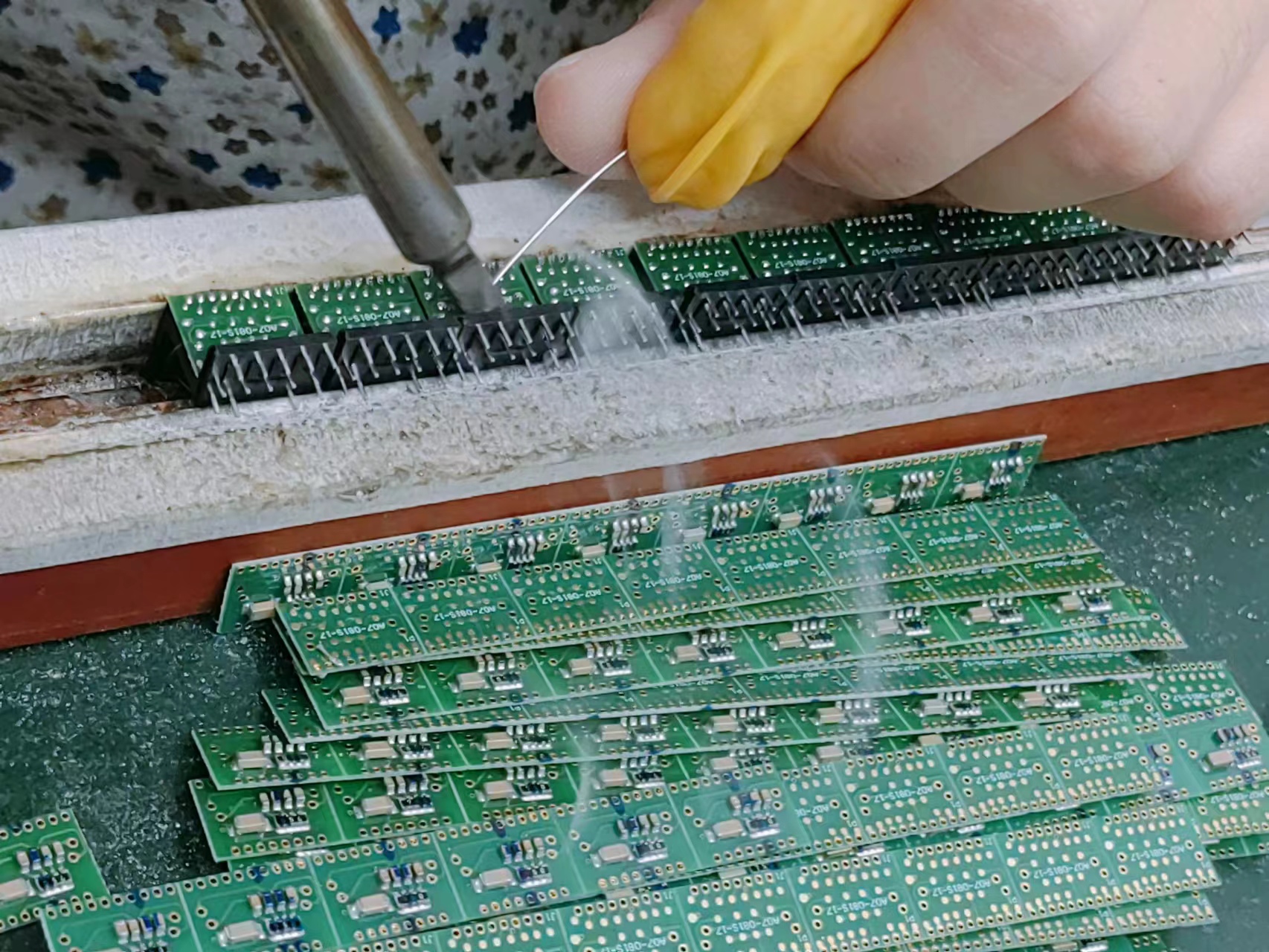

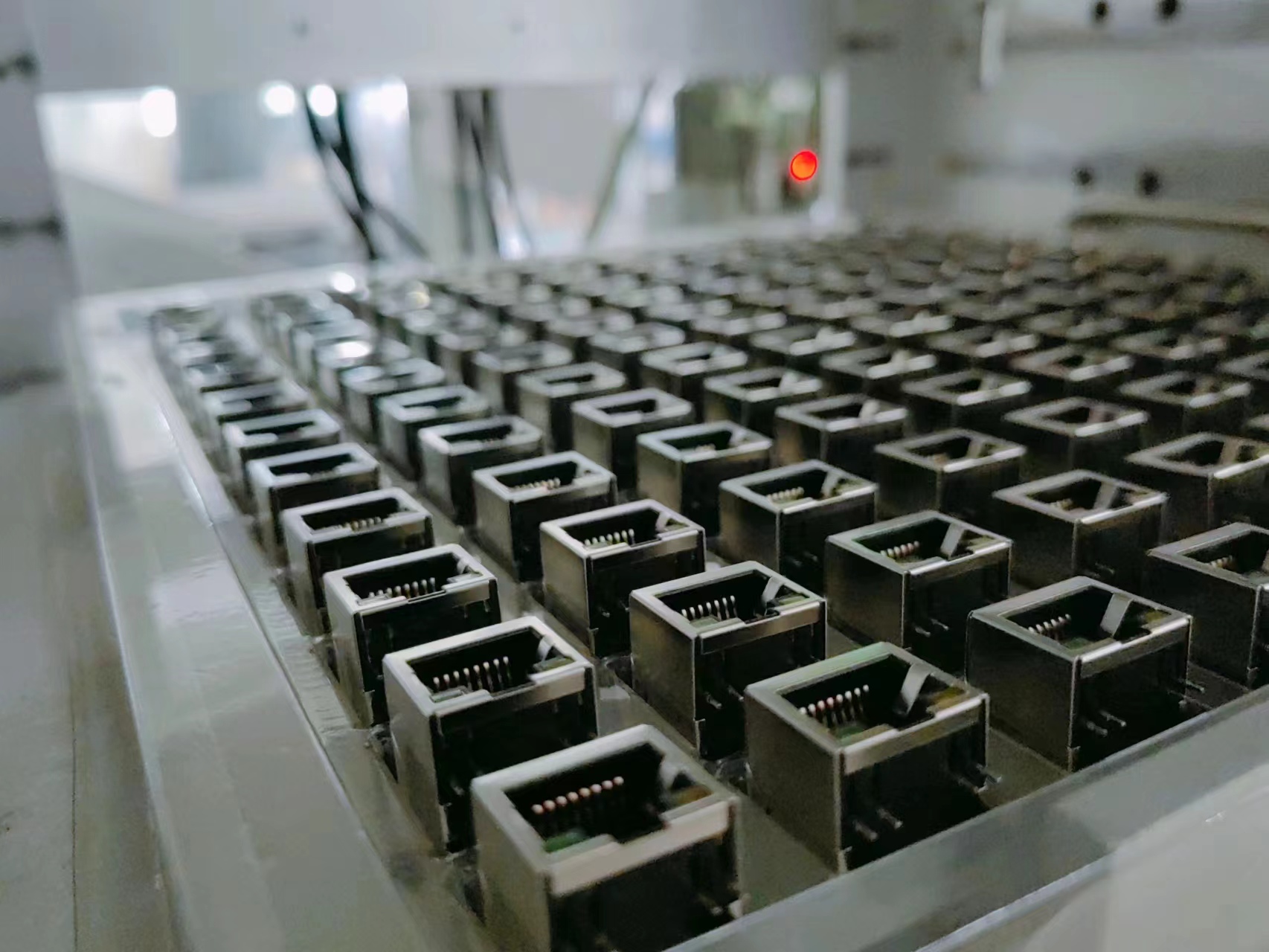

For mass order. we will use the auto machine for soldering.

But for small order or sample, we will solder by hand.

Auto Led assembly with plastic case.

Auto machine to cut the Led, so they can be auto assemblied with plastic case.

Product Usage

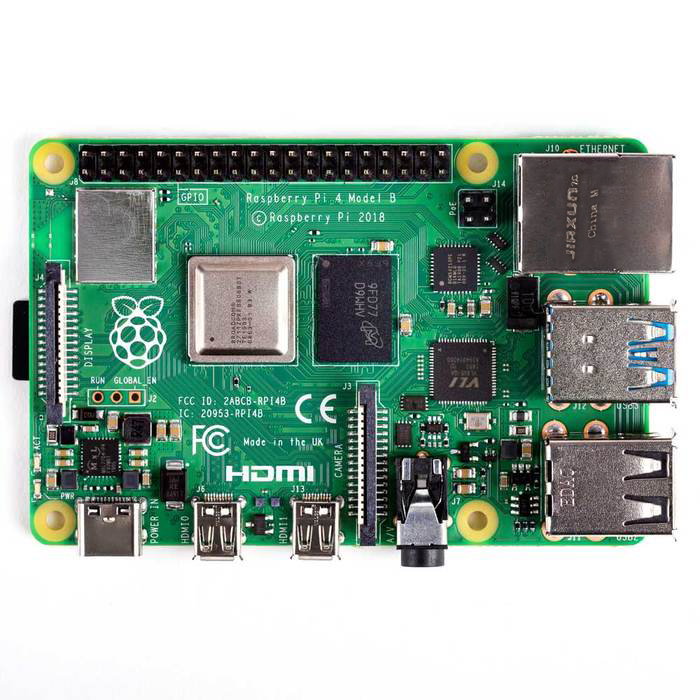

- PoE RJ45 used for Raspberry Pi board

The speed and performance of the new Raspberry Pi 4 is a step up from earlier models, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.

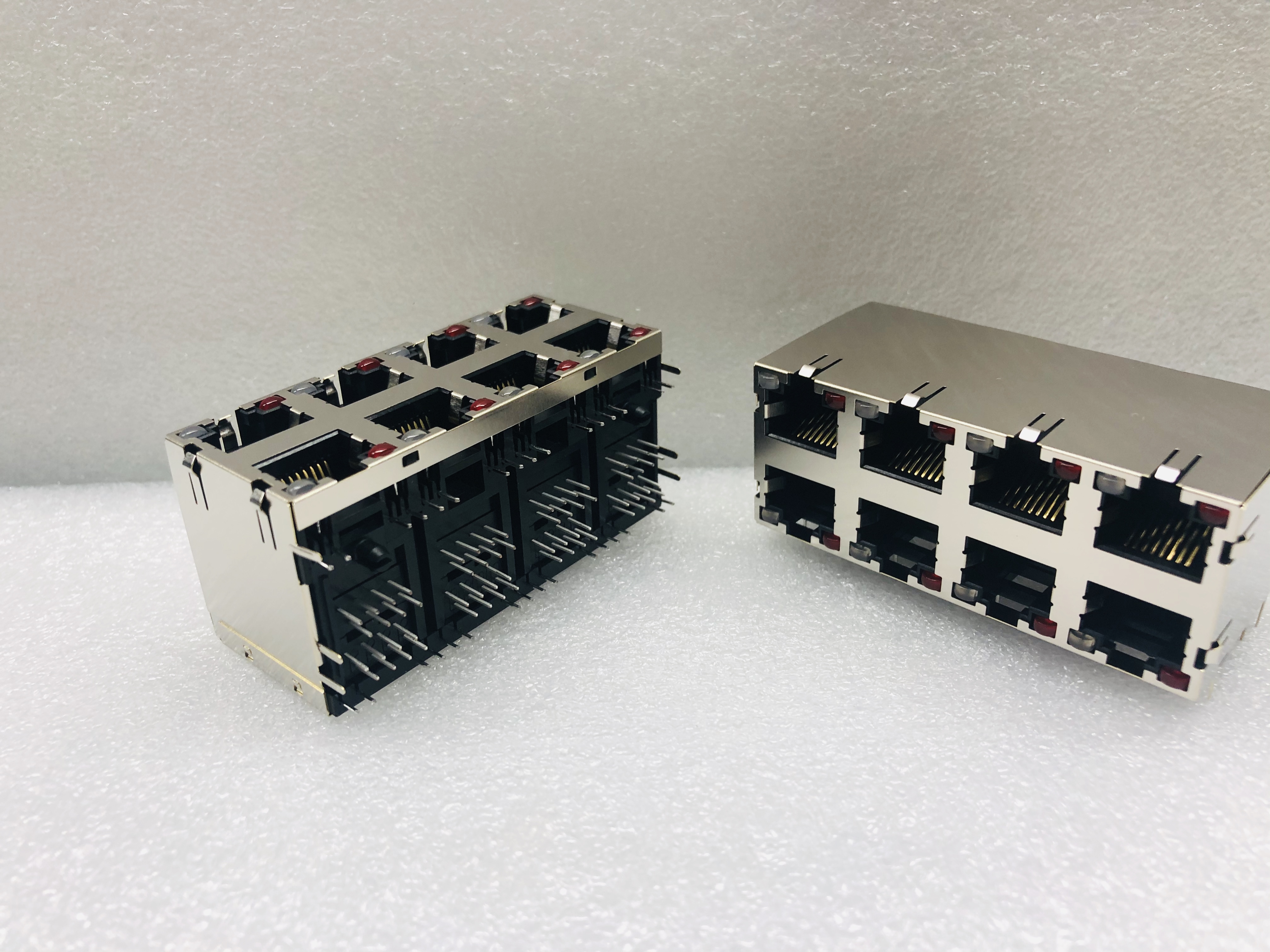

2x4 multiple ports stacked RJ45 connector

The products are widely used in networking and communication equipments.

RJ45 Ethernet Connector

Related Products

Packing&Shipping

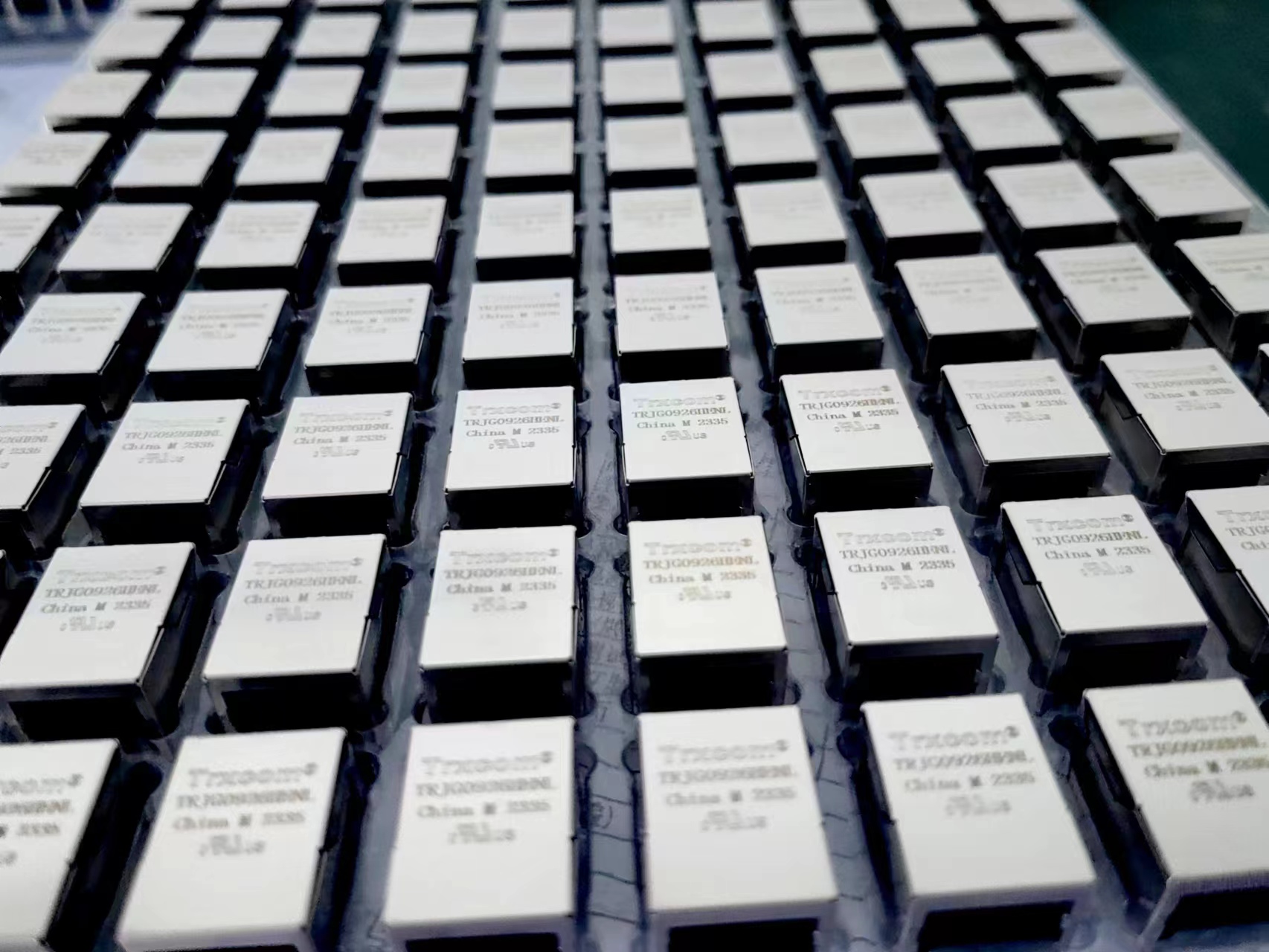

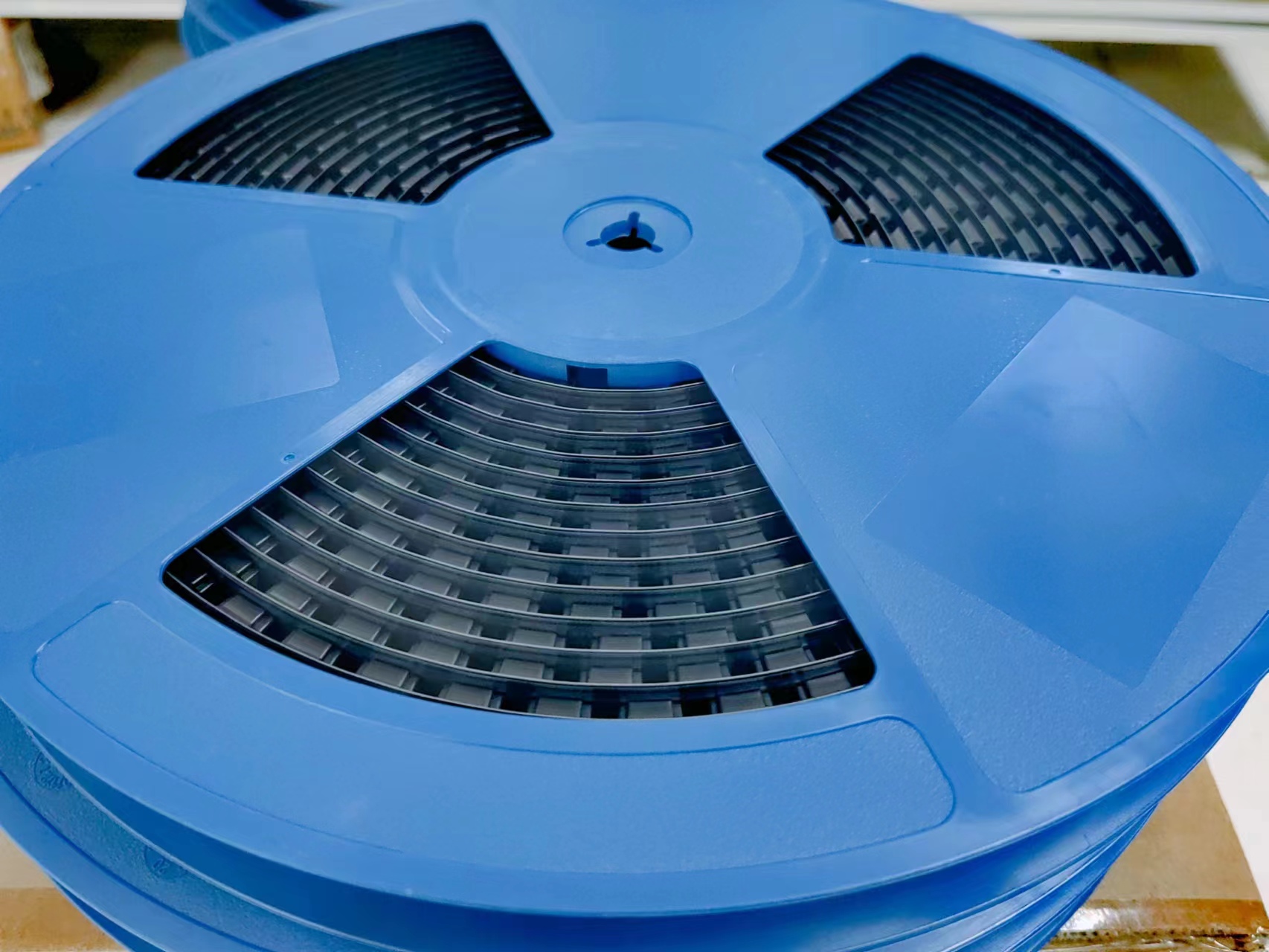

Usually we have standard Tray and T&R package for RJ45 Ethernet connector.
