15km light controller for street lighting 0-10V/PWM IP66 power line communication intelligent light control system

minimum order :

2 pieces

Stock Time :

7Day

Quantity :

add to cart

Contact Now

Warranty(Year):3-Year
Lighting solutions service:Lighting and circuitry design
Product Weight（kg）:0.6
Place of Origin:Guangdong, China
Brand Name:Micro Nature
Type:Remote Control
Max. Load Power:800W

Product Overview

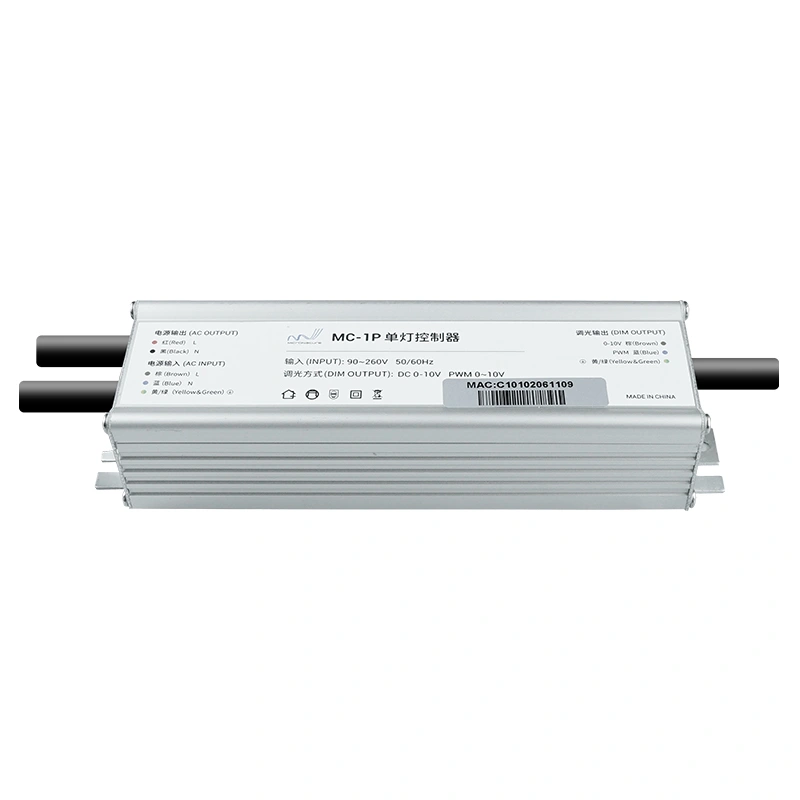

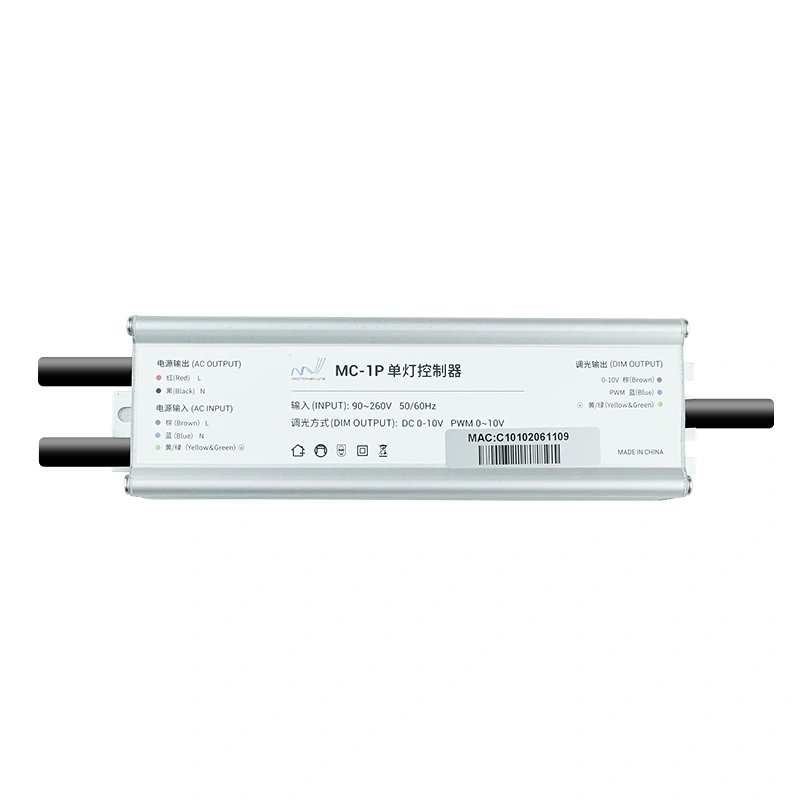

MC-1P Single Light Controller

A lamp controller linked with an LED driver, communicates by High-Speed Power Line Communication (HPLC). Remotely turn ON/OFF, dimming (0-10V/PWM), data collection, 90-264VAC, 2W, IP66, lightning protection.

PRODUCT SPECIFICATIONS

Electrical Parameters
Input Voltage	85~305VAC
Frequency	50~60Hz
Maximum Power Consumption	800W
Power Consumption of Controller	＜2W
Functional Parameters
Waterproof Grade	IP66
Lightning Protection Grade	±6KV
Dimming Type	0-10V/PWM
Data Collection	Current, Voltage, Active Power, PF, Electricity
Fault Warning	Overvoltage, Undervoltage, Overcurrent, Overload
Edge Computing	Local strategy, can work offline.
Measuring Range & Accuracy
Current	0~5A ±5%
Voltage	0~220V ±2%
Rated Power	1W~800W ±5%
Temperature	-40~85°C
Communication Type	High-speed Power Line Communication( HPLC )
Working Frequency	0.507Mbit/s
Bandwidth	Support"0.5-3.7M"&"2.5-5.7M"
Sensitivity	≤-80dbm

What Is PLC-IoT?

Power Line Communication Internet of Thing (PLC-IoT) is an HPLC/IEEE 1901.1-compliant mid-band Power Line Communication (PLC) technology launched for industrial IoT scenarios to transmit data over power lines on low-voltage networks. PLC-IoT eliminates the need to roll out additional communication lines and delivers reliable, secure, and efficient communication in the"last mile"of IoT.

PLC-IoT establishes an accurate power line communication channel transmission model and determines the optimal signal transmission frequency based on the physical characteristics of power lines. Based on a large amount of measured data, PLC-IoT determines the channel characteristics of power lines, including the attenuation, impedance, and noise characteristics of signals. Based on these characteristics, PLC-IoT effectively mitigates noise and attenuation, significantly improving the communication performance of power lines and achieving high-speed, reliable, and real-time long-distance communication.

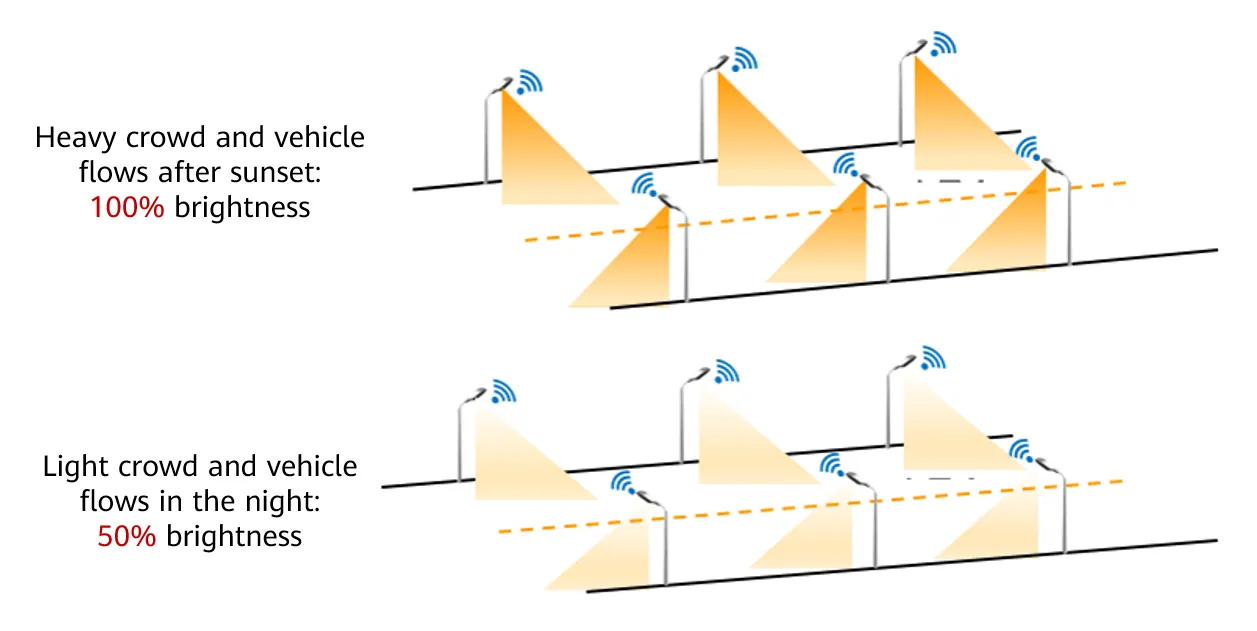

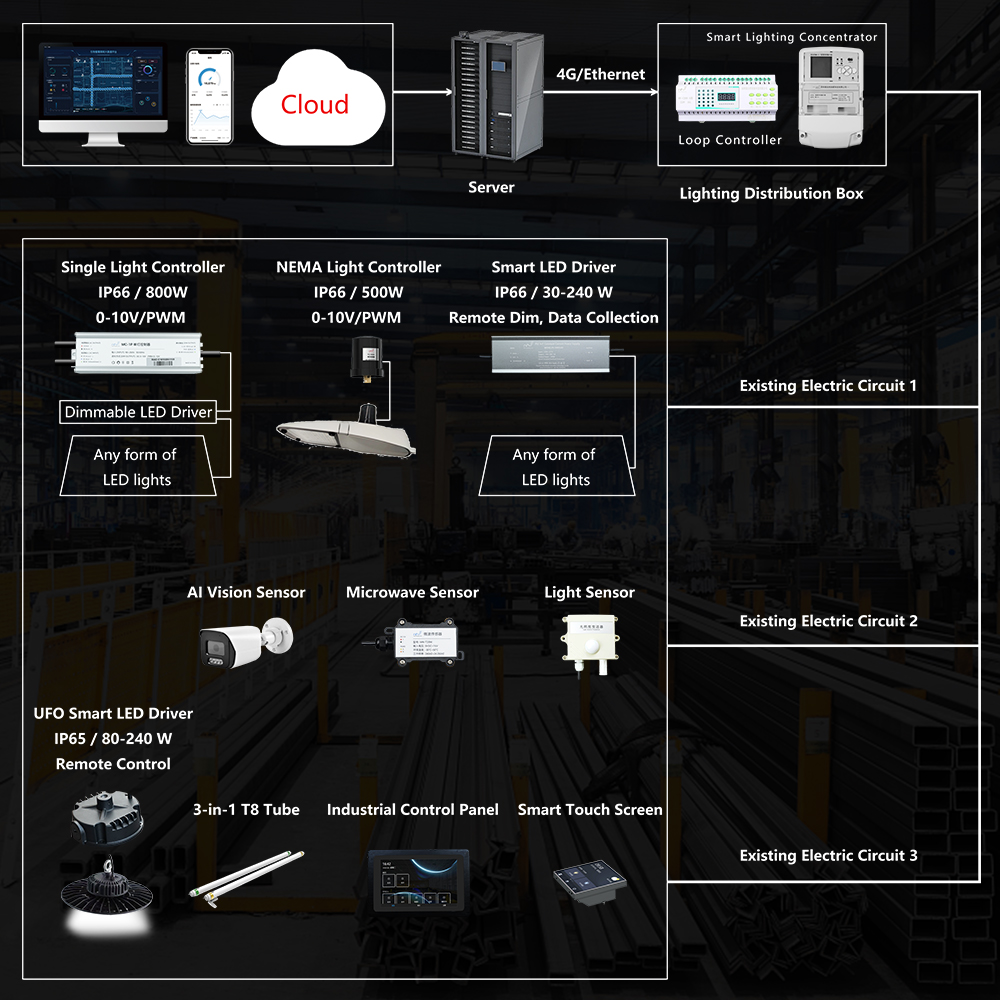

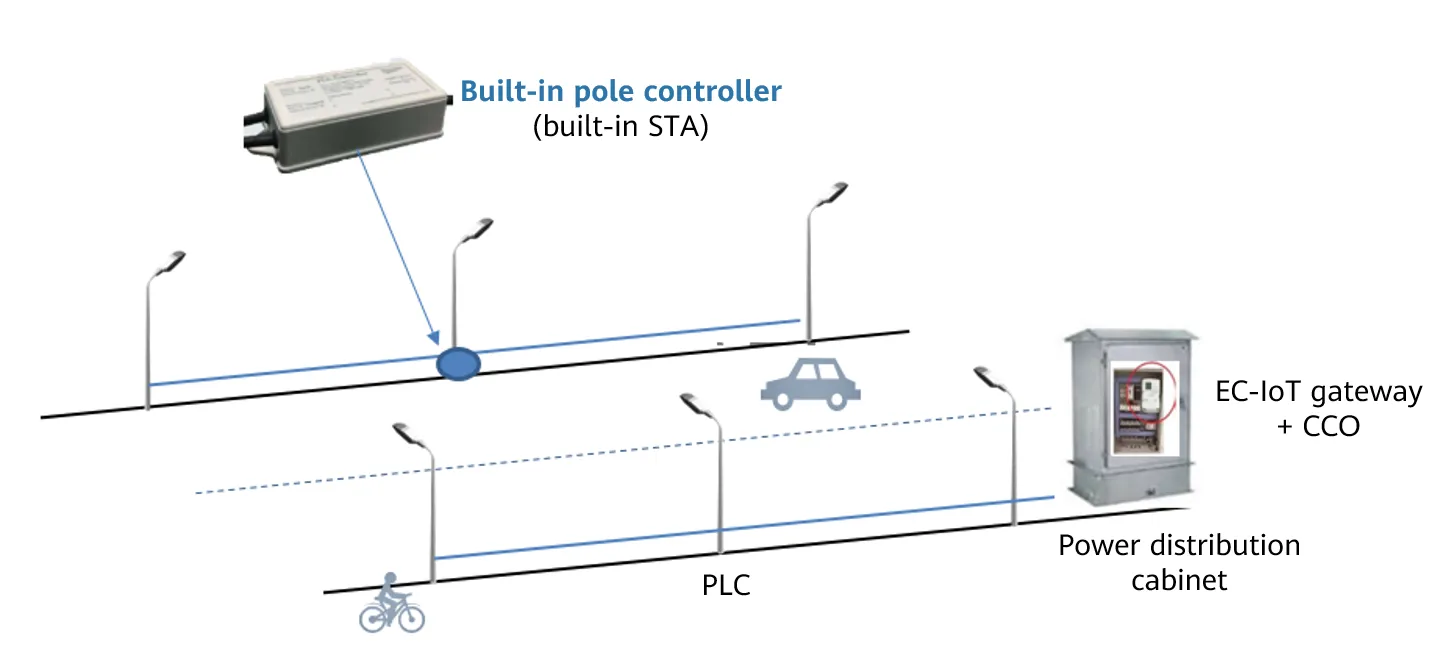

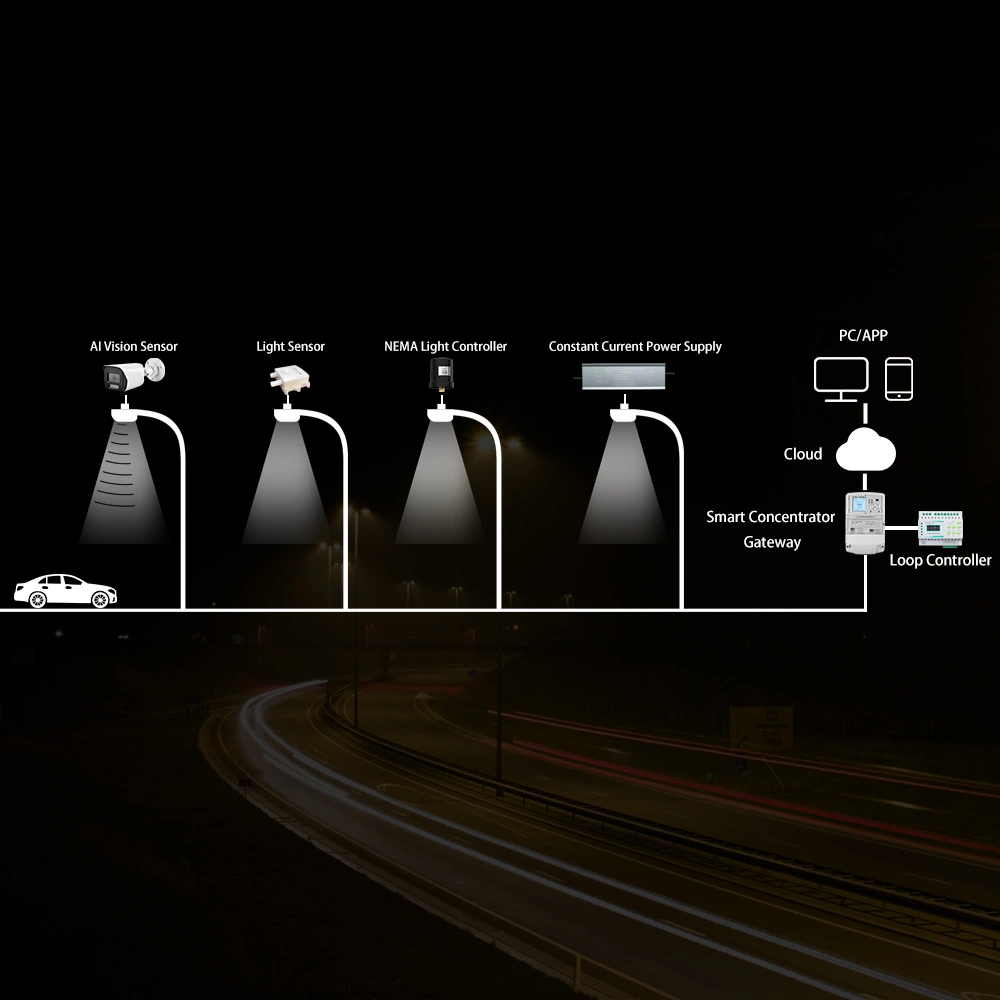

A smart city is characterized by an unprecedented level of intelligence, which drives traditional street lamps to transform toward intelligence. Smart lamp poles have become the best choice of IoT. With PLC-IoT and edge computing technologies, the smart street lamp solution intelligently adjusts the brightness of street lamps based on the time, surrounding environment, as well as longitude and latitude, reducing energy consumption.
