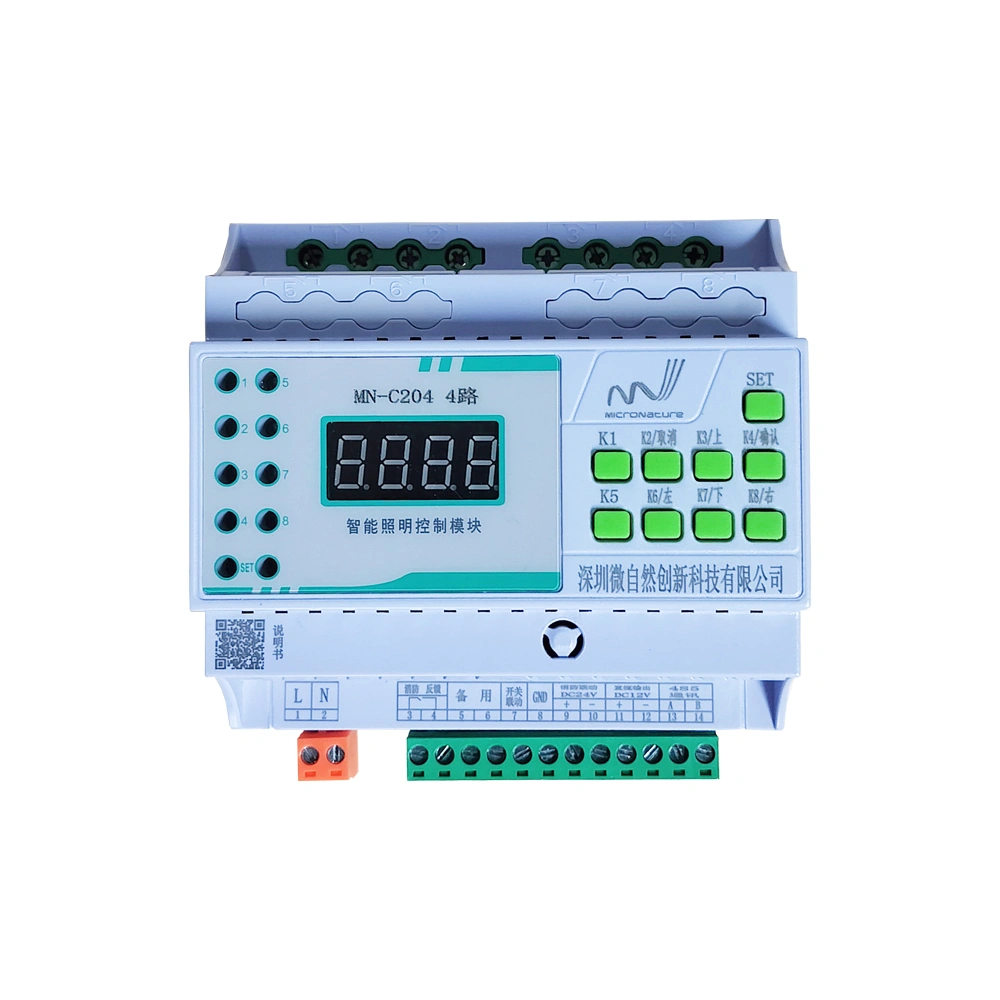

Model No: MN-C2012

16KM Long Distance PLC-IoT 4/6/8/12/14/16 Outdoor Street Lighting Remote Switch Dim Meter Energy Analysis Relay Loop Controller

minimum order :

2 pieces

Stock Time :

7Day

Quantity :

add to cart

Contact Now

Place of Origin:Shenzhen
Brand Name:MicroNature
Model Number:MN-C2012
Application:Smart Street Lighting
Voltage - Output:12VDC
Voltage - Input:220VAC
Current - Input:40A
Mounting Type:Rail Installation
Description:4/6/8/12/14/16 Channel
Operating System:PLC-IoT
Warranty:5 Years
Control Method:Remote & Local Control

PRODUCT OVERVIEW

The loop controller caters to various decoration styles and intelligent control needs, integrating the user-friendly and flexible features of the Intelligent Lighting System. It enables easy modification, operation, and maintenance, providing comprehensive solutions for smart lighting control. Supporting multiple control methods, it boasts powerful load capacity and features scene control, remote control, and radar sensing capabilities.

Product Features

Easy Installation: Standard rail design, compact appearance, easy to install inside distribution boxes.

Remote Control: Built-in 485 interface, standard Modbus protocol, supports remote control.

Specifications: Supports 4/6/8/12 channels, with each circuit independently controllable.

Safety Protection: Supports overload, short circuit, leakage detection functions.

Application Scenarios: Municipal road lighting, tunnel lighting, industrial lighting.

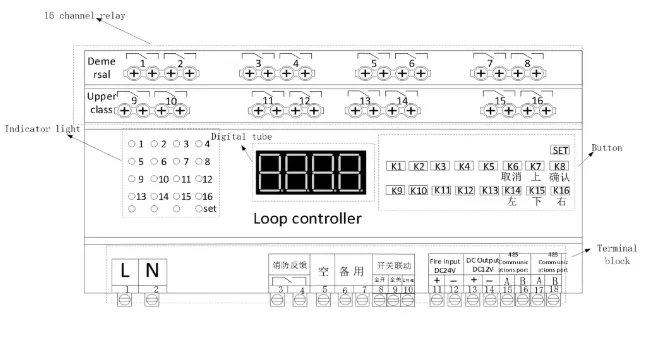

Panel Description

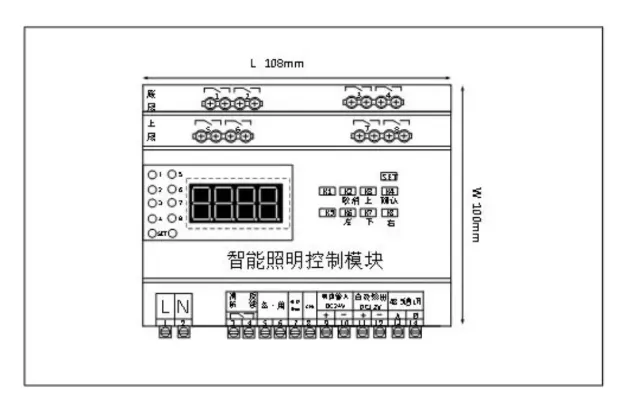

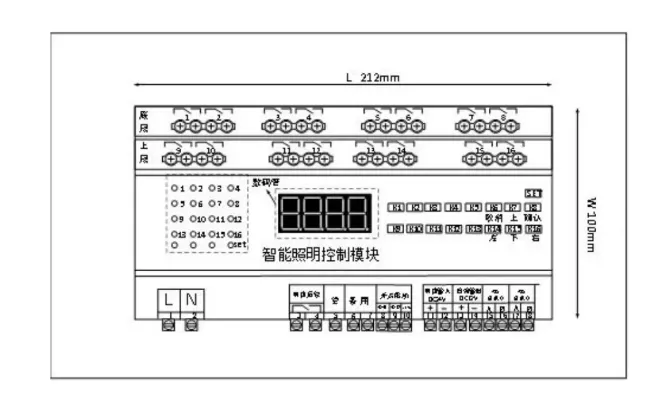

Dimension Structure

Model No.	Specification	L	W	H	W1	W2
MN-C204	4-channel	108	100	72	47	35.5
MN-C206	6-channel	108	100	72	47	35.5
MN-C208	8-channel	108	100	72	47	35.5
MN-C2012	12-channel	212	100	72	47	35.5

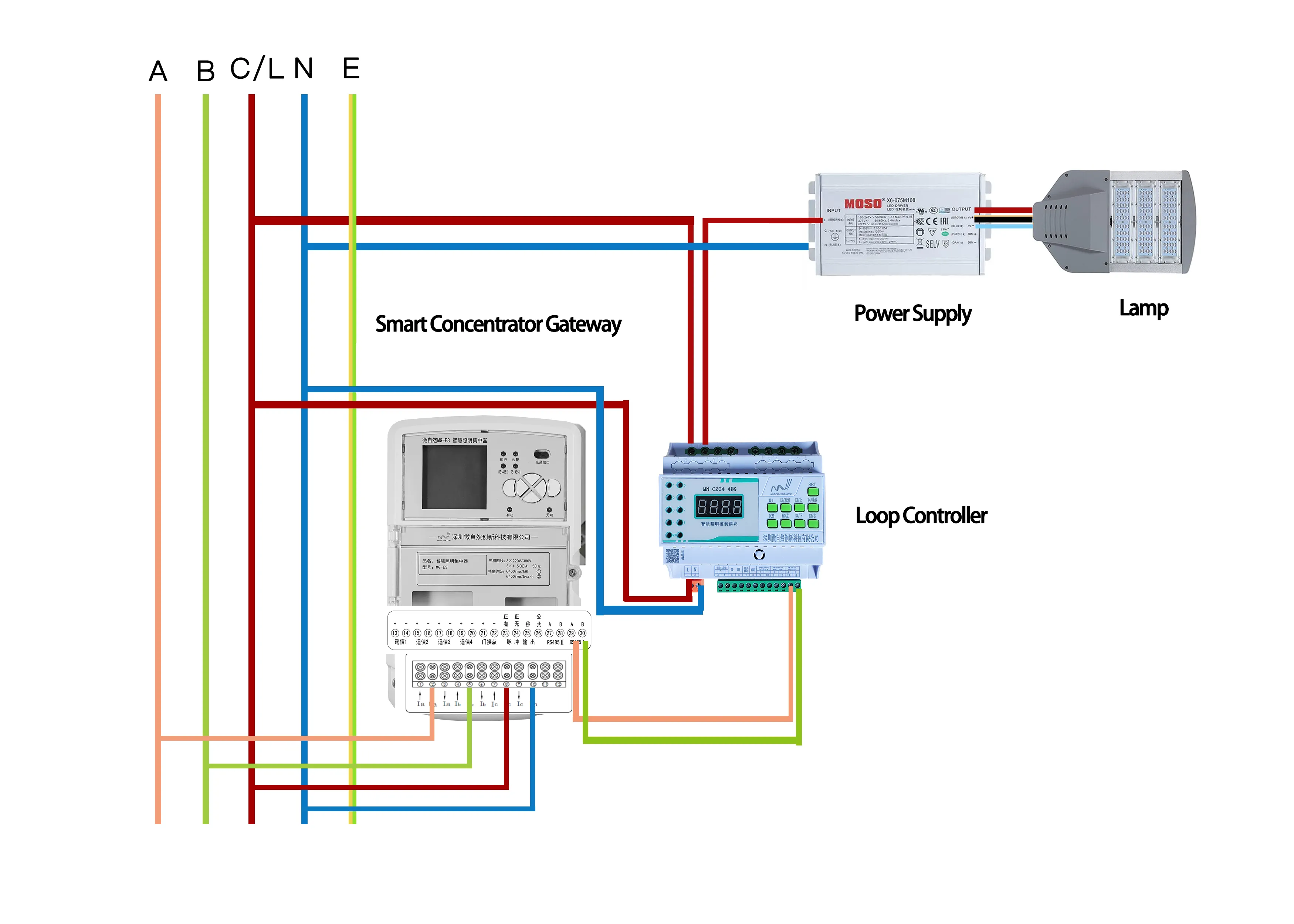

Wiring Diagram

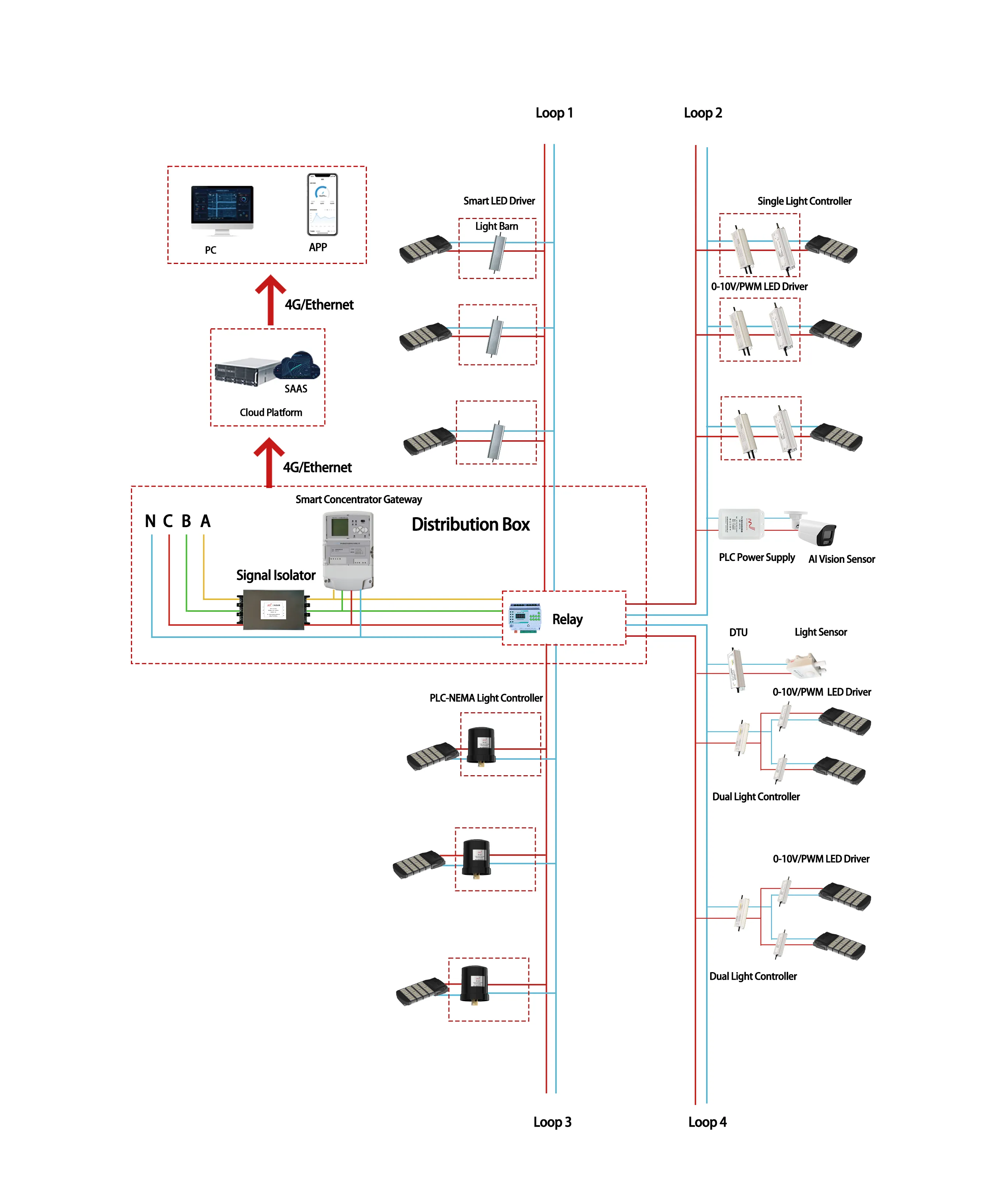

Wiring Topology

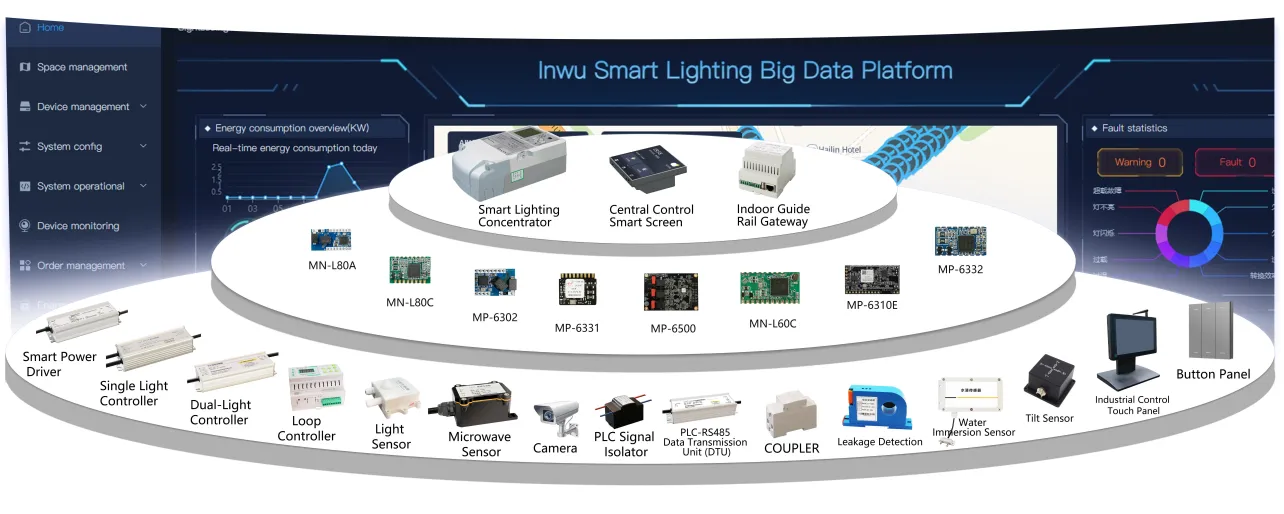

SUPPORTING PRODUCTS

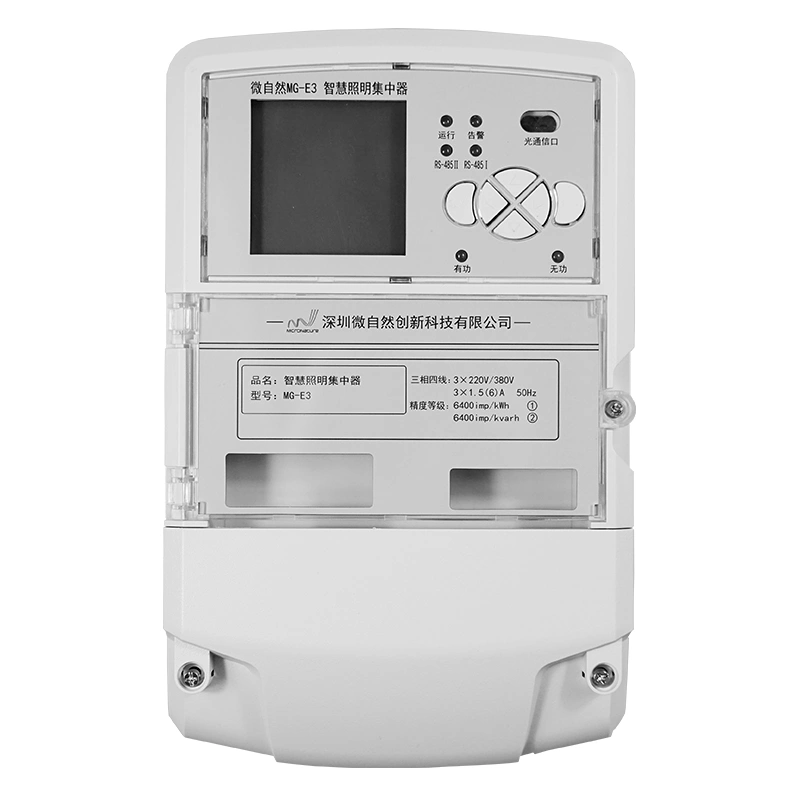

Smart Concentrator Gateway

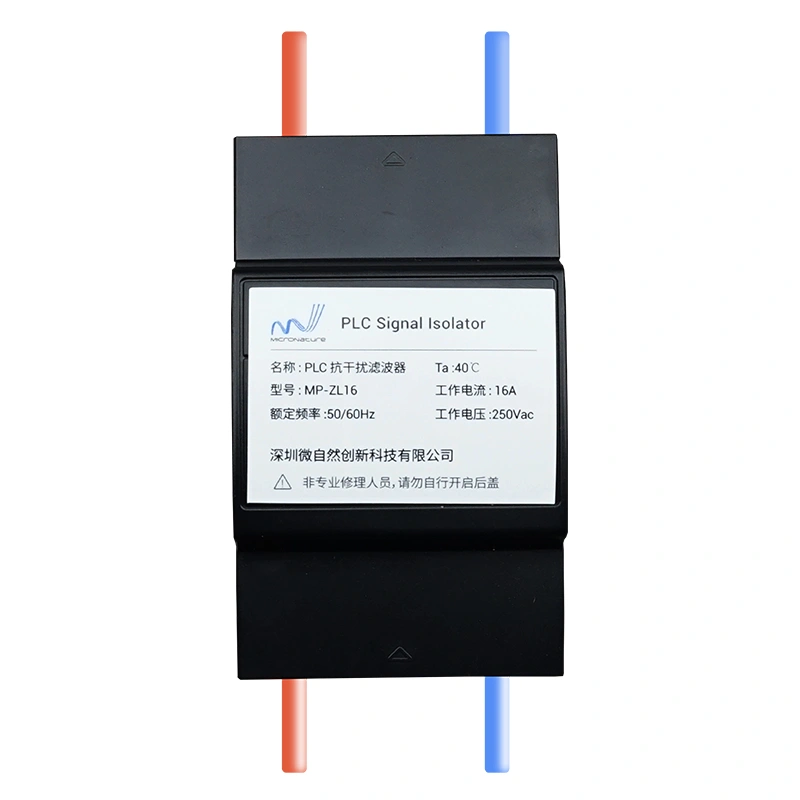

Signal Isolator

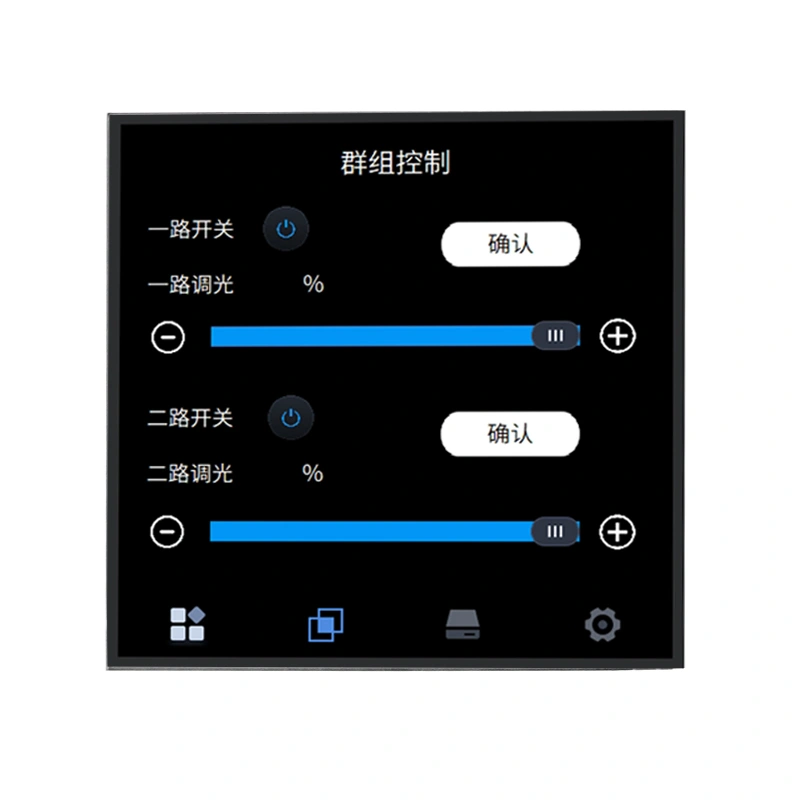

Central Control Smart Screen

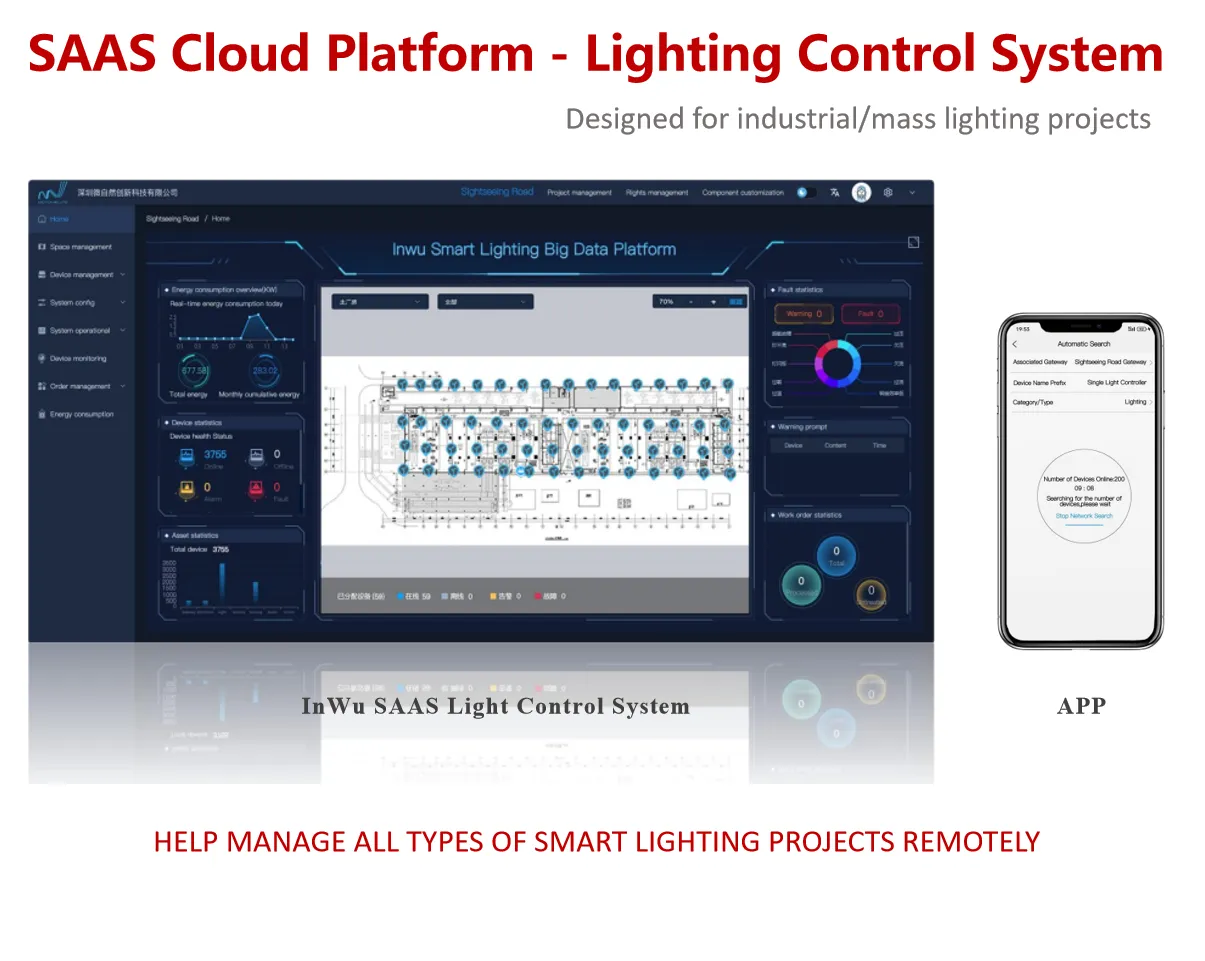

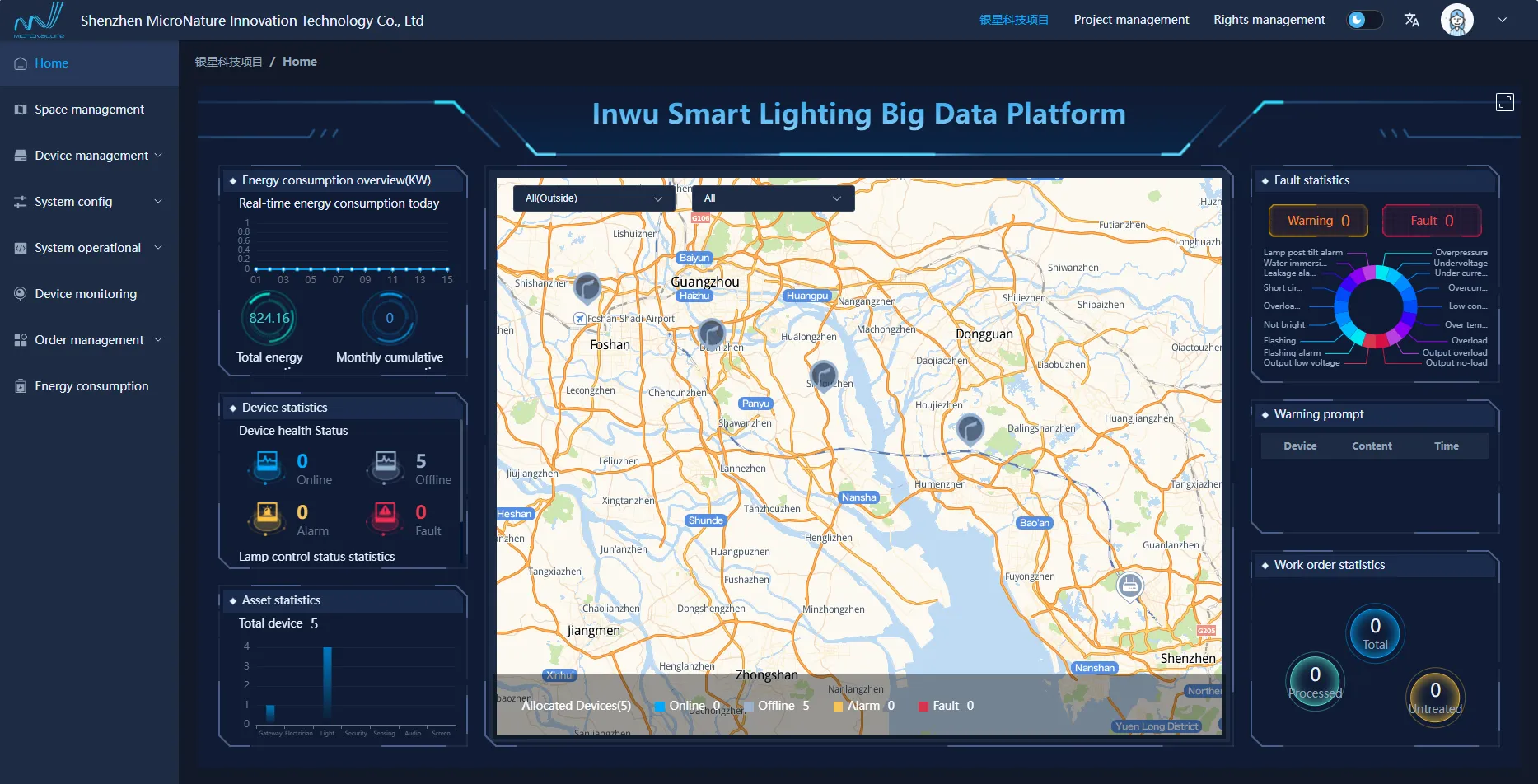

SAAS CLOUD PLATFORM

• Real-Time Energy Consumption

• Fault Statistics

• Devices Health Monitoring

• Warning Notifications

• Devices Asset Statistics

• Work Order Statistics

• Device Type Selection

COMPANY PROFILE

About Company

Established in 2015, Shenzhen MicroNature Innovation Technology Co., Ltd. collaborates with renowned domestic research institutions and operates as a national high-tech enterprise engaged in design R&D, manufacturing and marketing. With cutting-edge HPLC communication technology, an open SAAS light control system, a full range of intelligent hardware, and extensive project implementation experience, Micronature has operations all over the world, helping integrators, engineering firms, lighting suppliers, and power suppliers to realize lighting intelligence.

Advantages of Power Line Communication (PLC) Technology

• 2 km point-to-point communication distance

•99.99% stable communication

•1 gateway controls 499 devices

• No rewiring required

Cooperation Mode

• Private cloud development

• Language customization

• API, UI, Modbus, MQTT integration

• Co-management of multiple projects

• Sub-account-privilege management

• Professional technological support and service
