Model No: RJ45+USB

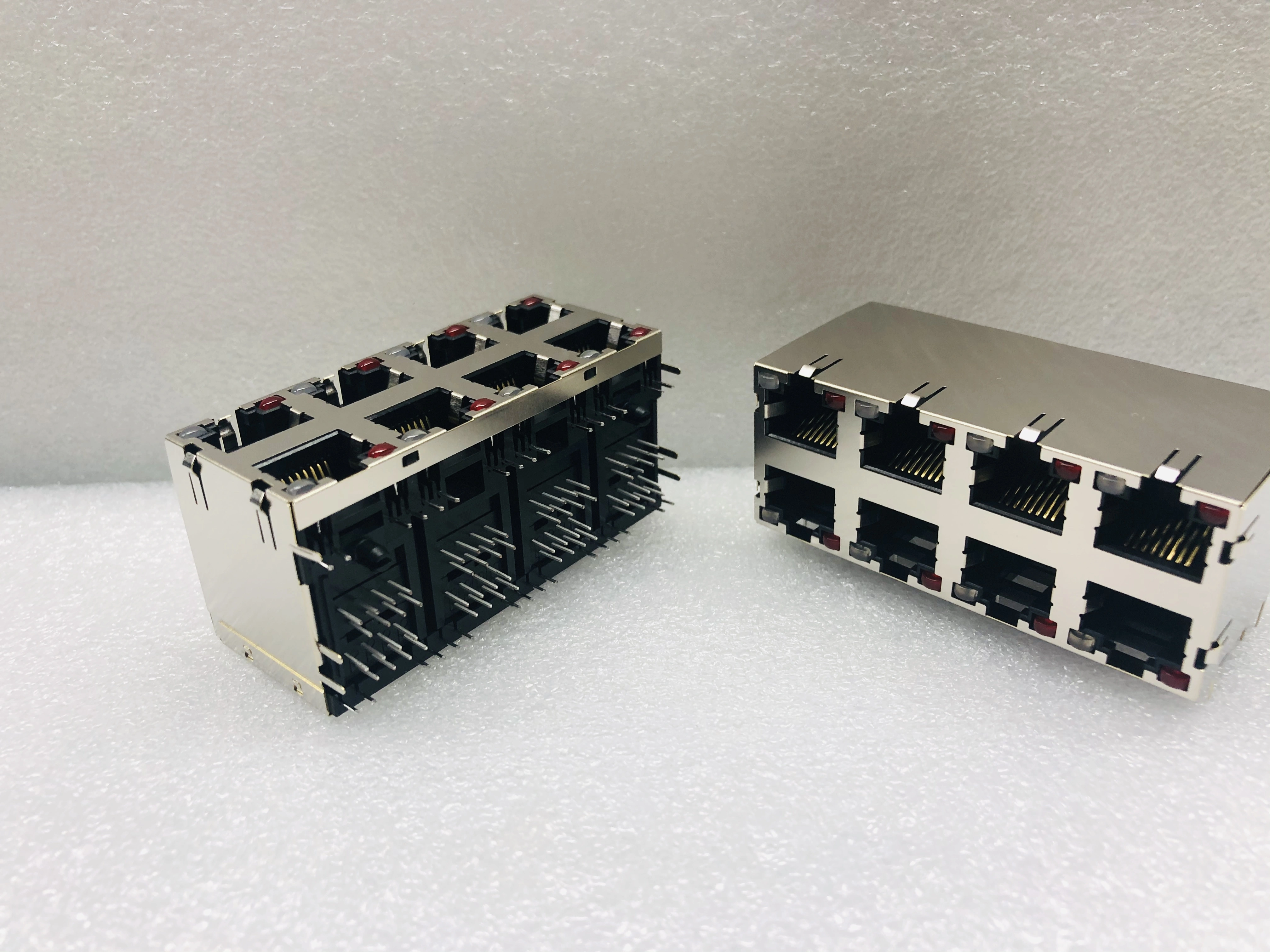

2.5G/5G Gigabit RJ45 Ethernet Connector with USB Interface Built-in LAN Transformer with LED Strip and Spring Contact
2.5G/5G Gigabit RJ45 Ethernet Connector integrates USB interface and built-in LAN transformer for high-speed networking. Features include an LED strip for status indication and spring contacts for reliable mounting. UL certified for safety
minimum order :
2 pieces
Stock Time :
7Day
Quantity :
- Model Number:/
- Type:RJ45
- Place of Origin:Guangdong, China
- Brand:Jiaxun
- Packaging:Tray
- Description:RJ45
- D/C:integration
- Application:PCB/ Industrial Switches/ Motherboard
- Gender:Female
- Shielding:Shielded/ EMI Finger/ Without Shield
- Number of Ports:Single Port, Multi-port, Stacked
- LED Color:Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
- Certificate:ISO-9001, UL, Reach and RoHs
- Orientation:Tab Down/Up
- Contact Finish:Gold
PRODUCT DESCRIPTION
Product Type | RJ45 Female Conncetor |
Connector Type | RJ45 |
Speed | 1000M/ 2.5G/ 5G/ 10G |
Orientation | 90° Angle (Right)/180° Angle |
Termination | Solder |
LED Color | Green-Yellow/ Yellow-Green |
Number of Cores per Jack | 4/6/8/12 |
Shielding | With Shielded/ EMI Finger |
Number of Ports | Single port, Multi-ports, |
Features | Board Guide |
Tab Direction | Down/Up |
Contact Finish | Gold |
Configuration RX/TX | T,C |
Turns Ratio RX/TX | 1CT:1CT |
Operating Temperature | 0°C ~ 70°C/-40°C ~ +85°C |
PRODUCT OVERVIEW
DETAIL IMAGES
For mass order. we will use the auto machine for soldering.

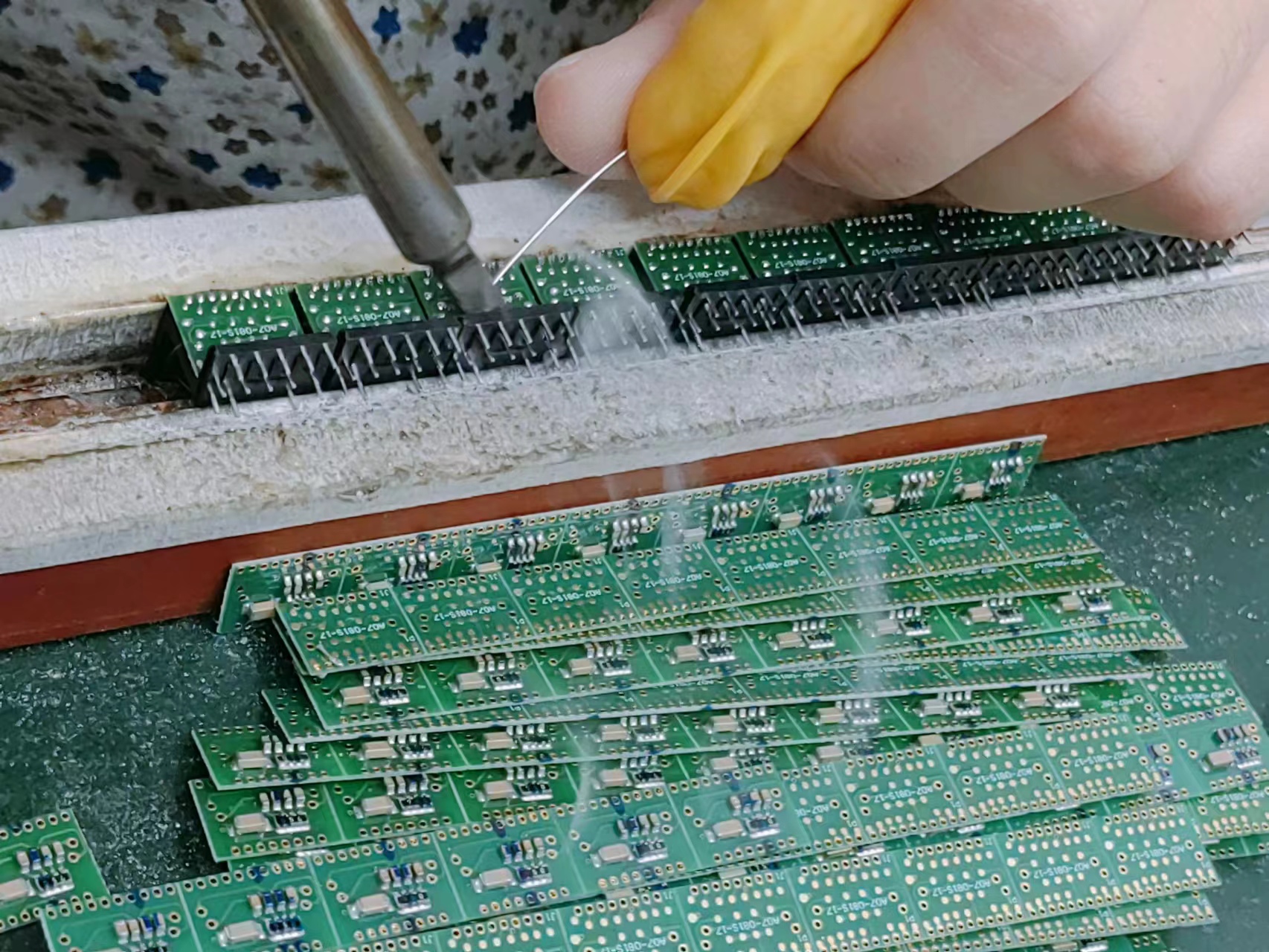

But for small order or sample, we will solder by hand.
But for small order or sample, we will solder by hand.

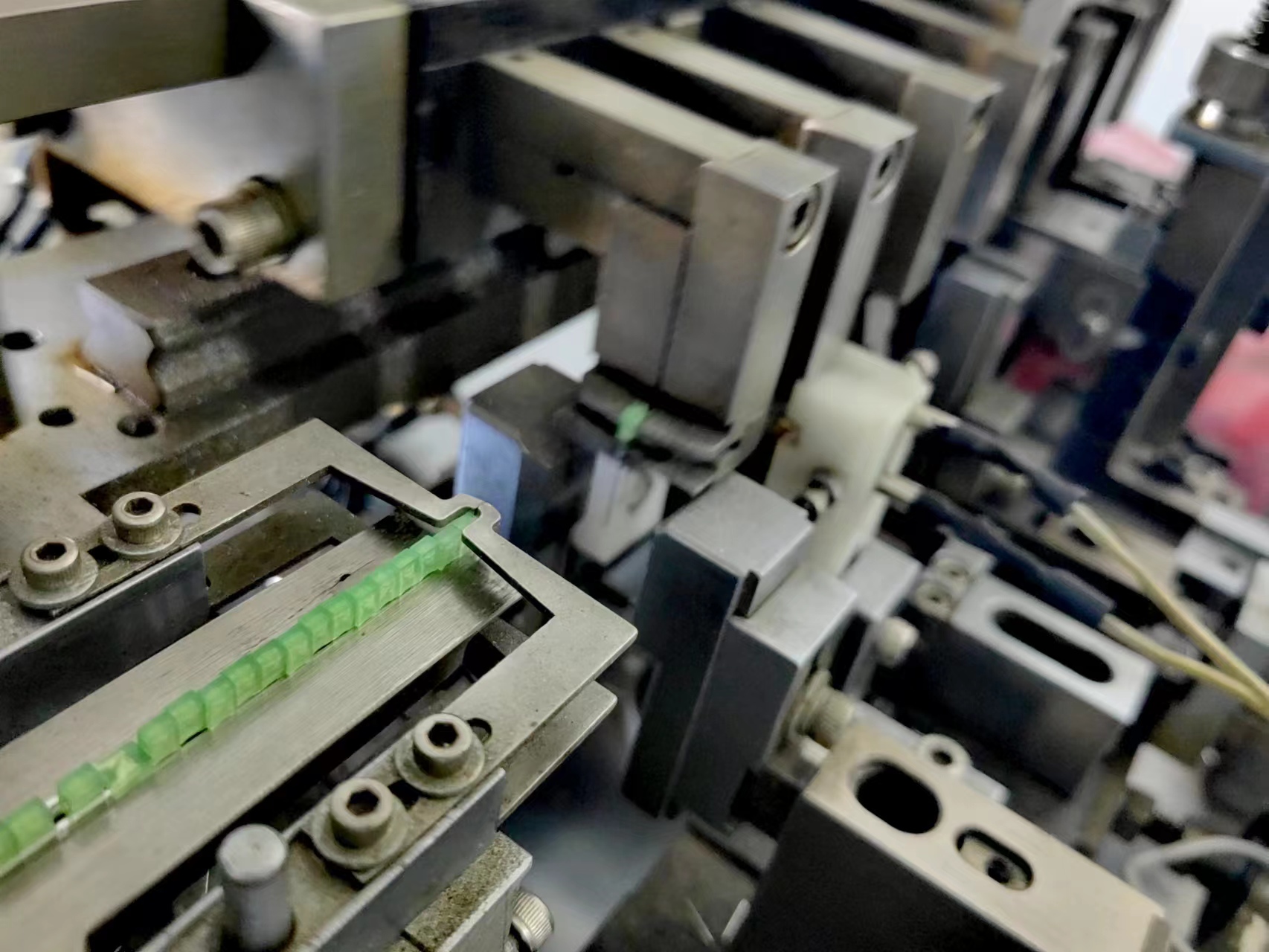

Auto Led assembly with plastic case

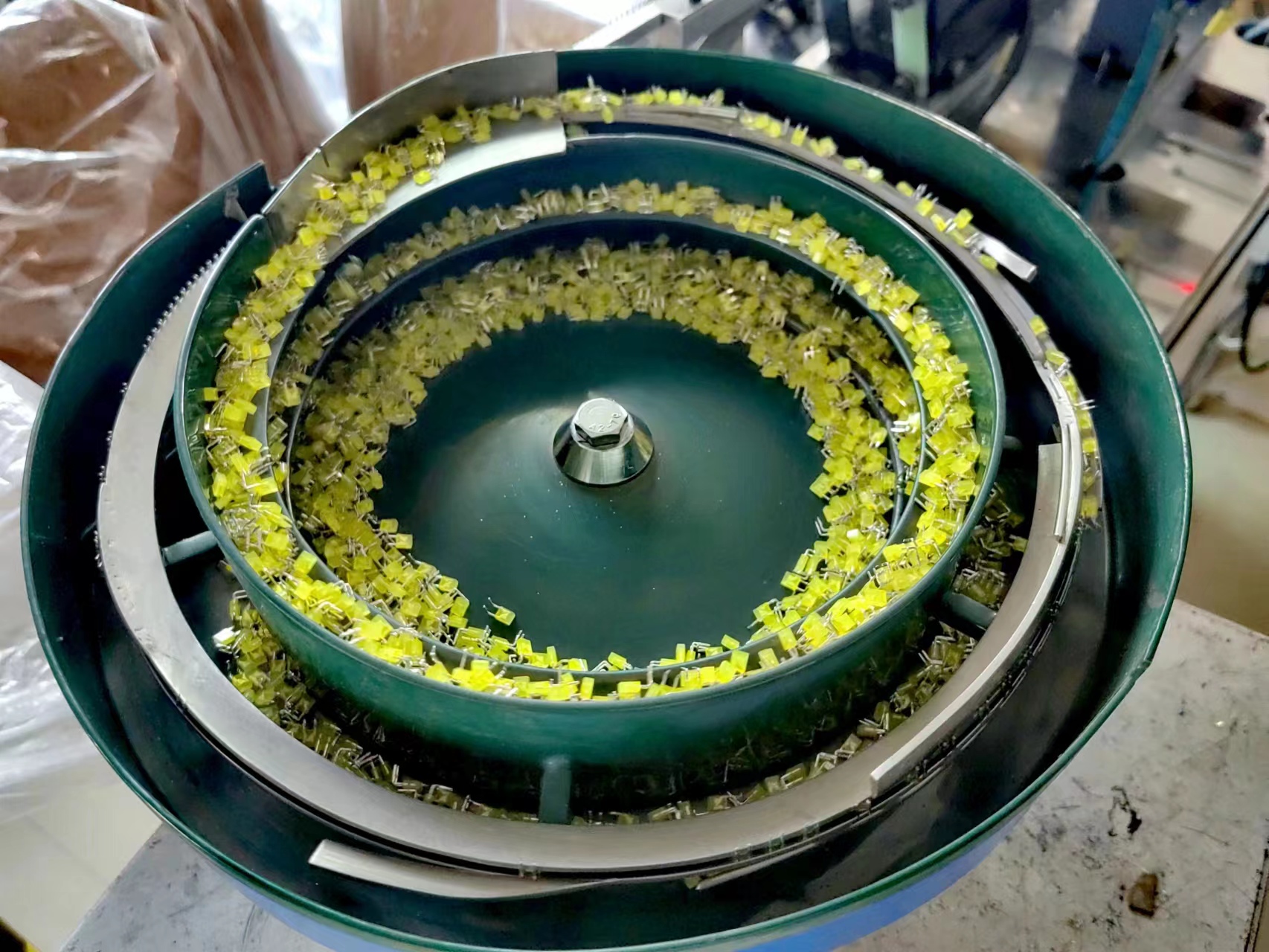

Auto machine to cut the Led, so they can be auto assemblied with plastic case.
PRODUCY USAGE
PoE RJ45 used for Raspberry Pi board
The speed and performance of the new Raspberry Pi 4 is a step up from earlier models, you'll find the experience smooth and very
recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.The products are widely used in networking and communication equipments.
PACKING&SHIPPING

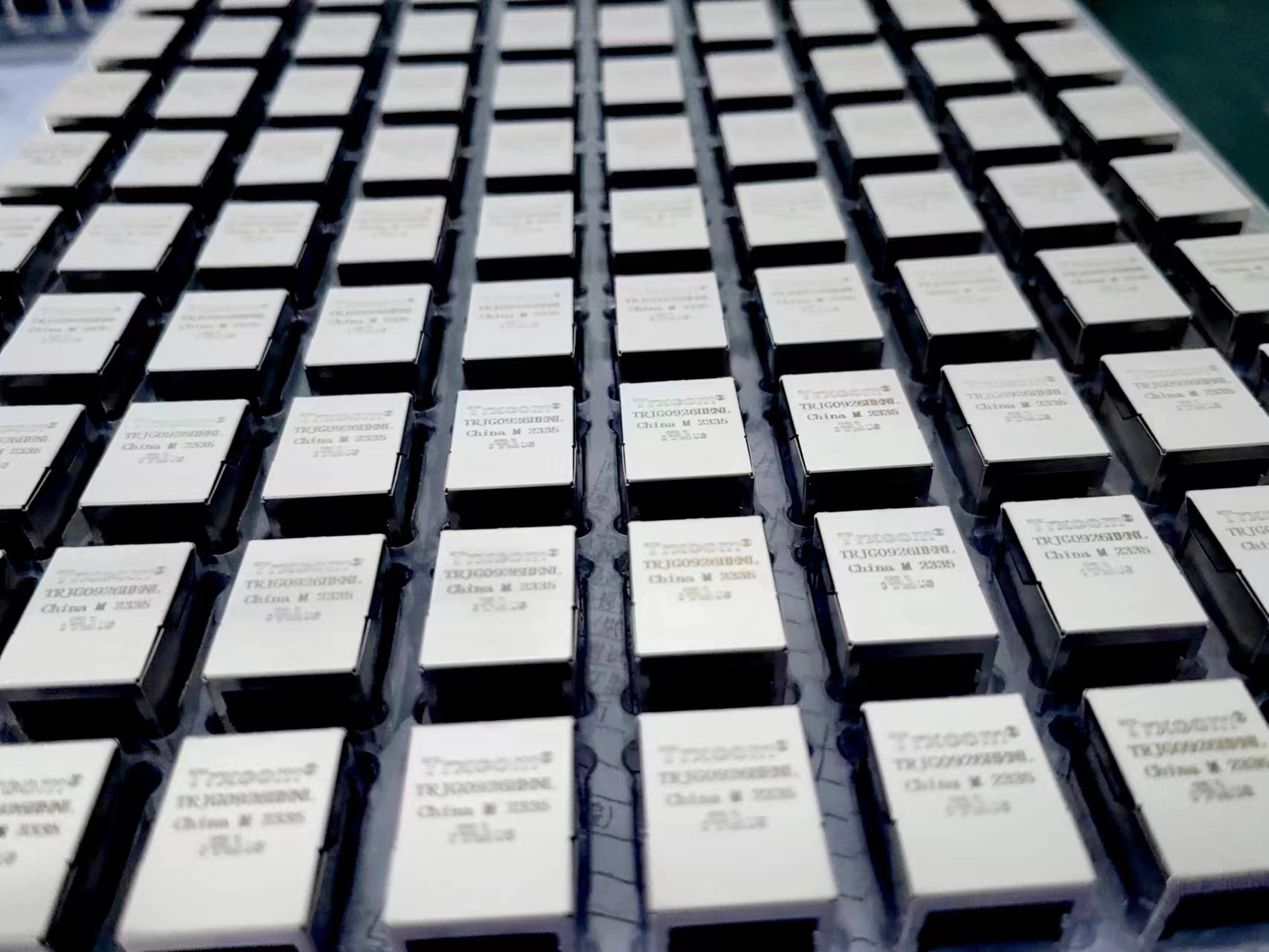

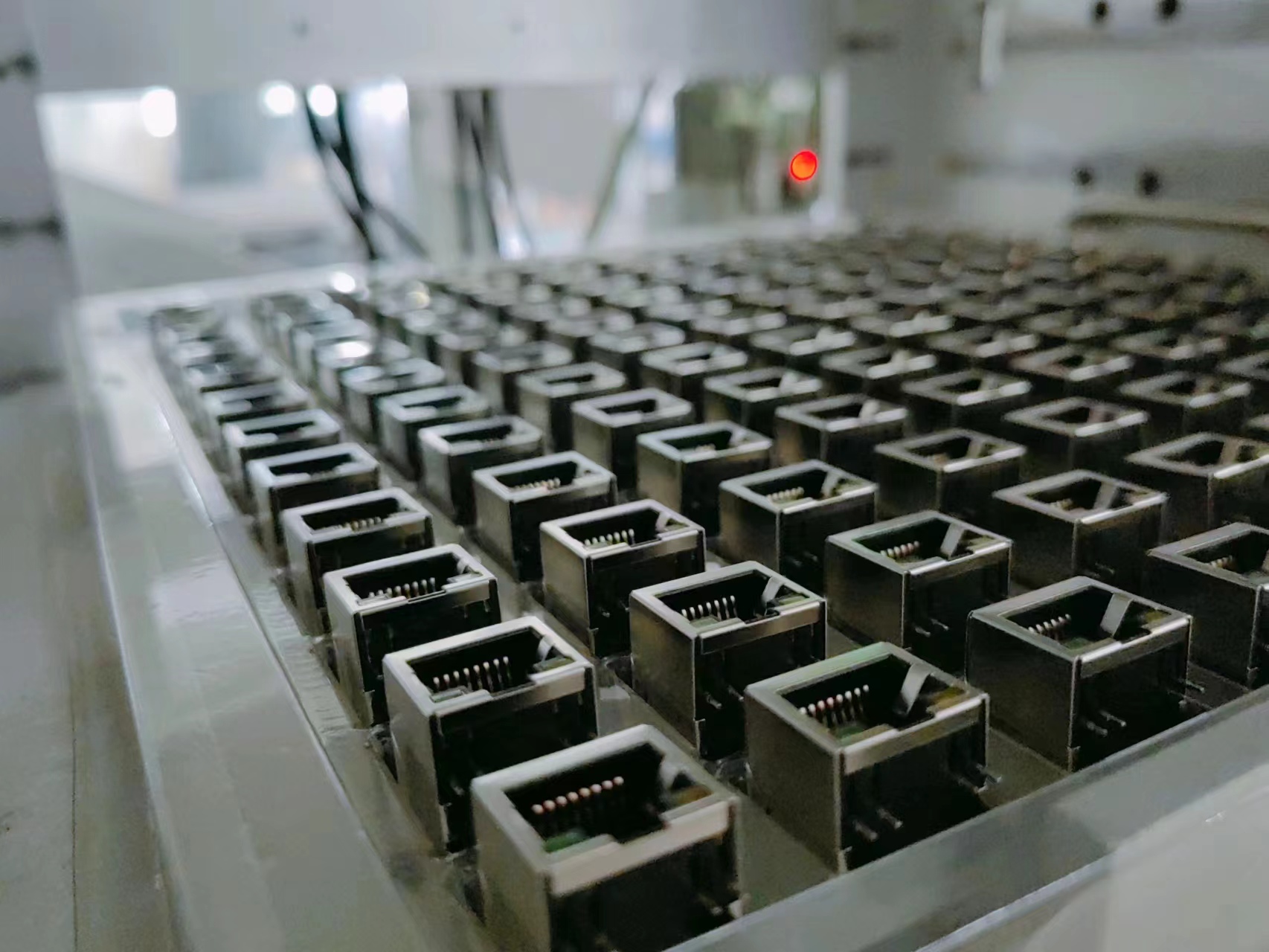

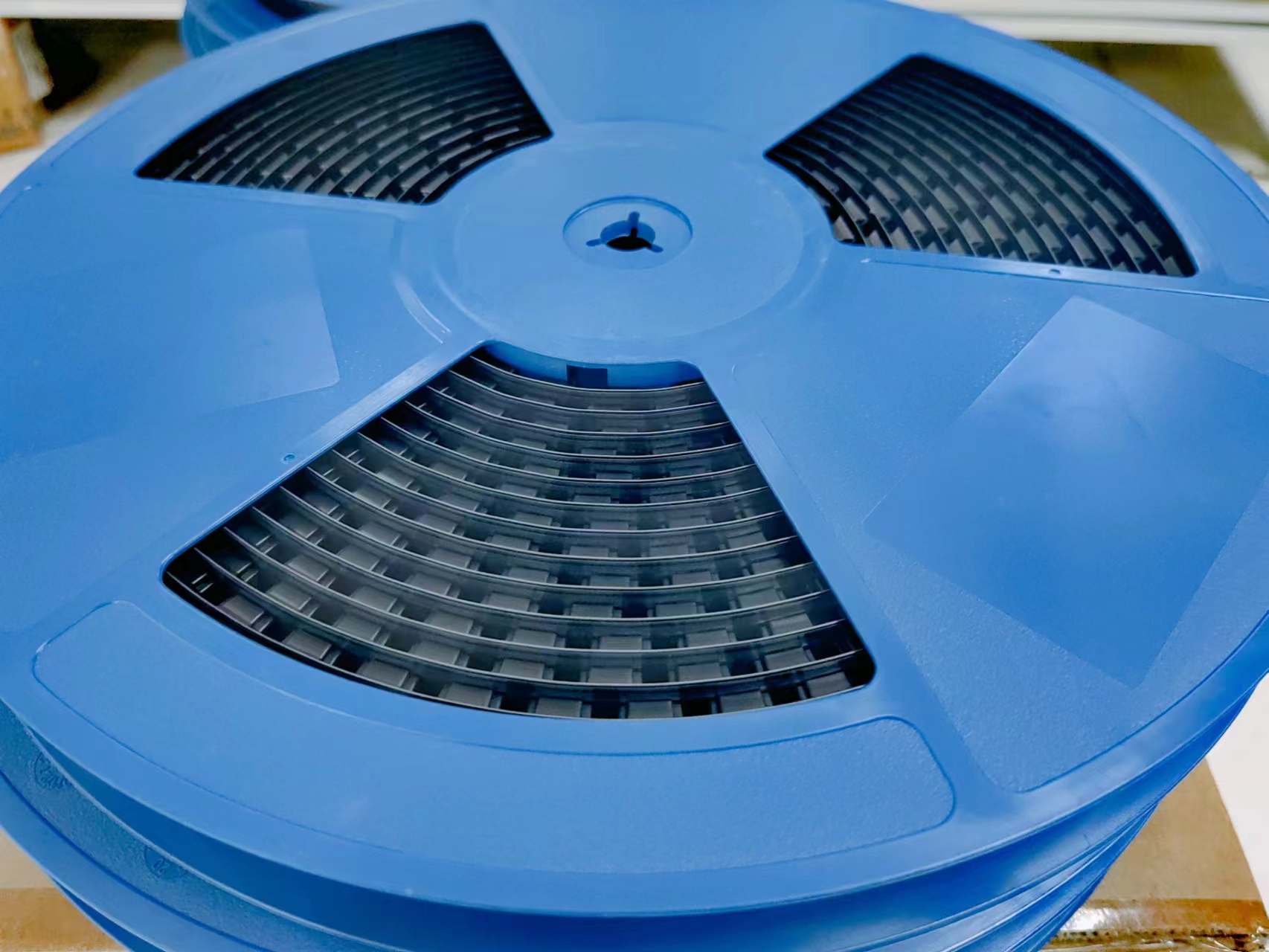

Usually we have standard Tray and T&R package for RJ45 Ethernet connector.
COMPANY INTRODUCTION
Established in 2020, Jiaxun is a leading manufacturer of RJ45 connector with magnetics, lan transformer, Audio transformer in the world. We have 1000 staff at present, all products are RoHs, UL, ISO9000, ISO9001:2008 approved. With the abundant productive capacity of 5000K per month, advanced manufacturing facilities and test equipments imported from abroad, powerful research and development team, highly controlled quality management system, competitive price, we are able to deliver the goods within the
short time.
Moreover, we can provide the professional complete solution for magnetic components and strong technical supports as well. Trxcomis a global supplier magnetic telecom and networking components, the OEM and ODM are welcome.
short time.
Moreover, we can provide the professional complete solution for magnetic components and strong technical supports as well. Trxcomis a global supplier magnetic telecom and networking components, the OEM and ODM are welcome.
Our Services & Strength
1. With professional R&D team, we can recommend suitable products for your new project new design.2. We have compatible
alternatives for most brands like Pulse, Halo, Bothhand, Belfuse, Wurth, Amphenol, Molex, TE, XFMRS,UDE…..
alternatives for most brands like Pulse, Halo, Bothhand, Belfuse, Wurth, Amphenol, Molex, TE, XFMRS,UDE…..
FAQ
1. Are you the original factory?
Yes our Jiaxun factory is located in Huizhou, China.
2. How long have you been in field of electronic components?
Our brand Trxcom have been in producing RJ45 conenctor and Lan transformer since 1999.
3. Can we get free samples for proto?
Yes we provide free samples for testing, and support small quantity at the early design stage.
4. How to place the order:
-Please send your demand datasheet to us.
-We will provide drop in alternative and price for refer.
-If price ok, then we will send you some free sample for testing.
-After testing, you can place the mass order and process the payment.
-The lead time for mass order usually is about 4 weeks.
-When the order is ready, we will ship out and send you the shipping details for tracking.
2. How long have you been in field of electronic components?
Our brand Trxcom have been in producing RJ45 conenctor and Lan transformer since 1999.
3. Can we get free samples for proto?
Yes we provide free samples for testing, and support small quantity at the early design stage.
4. How to place the order:
-Please send your demand datasheet to us.
-We will provide drop in alternative and price for refer.
-If price ok, then we will send you some free sample for testing.
-After testing, you can place the mass order and process the payment.
-The lead time for mass order usually is about 4 weeks.
-When the order is ready, we will ship out and send you the shipping details for tracking.
