Model No: RJ45

Factory Wholesale 2xN Ports Green/Yellow Led Light RJ45 Female Connectors With Magnetics For Industrial Motherboard

minimum order :

2 pieces

Stock Time :

7Day

Quantity :

add to cart

Contact Now

Model Number:/
Type:RJ45
Place of Origin:Guangdong, China
Brand:Jiaxun
Packaging:Tray
Description:Magnetic RJ45 Connector
D/C:integration
Application:PCB/ Industrial Switches/ Motherboard
Gender:Female
Shielding:Shielded/ EMI Finger/ Without Shield
Number of Ports:Single Port, Multi-port, Stacked
LED Color:Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Certificate:ISO-9001, UL, Reach and RoHs
Orientation:Tab Down/Up
Contact Finish:Gold

PRODUCT DESCRIPTION

Product Type	RJ45 Female Conncetor/RJ45 Ethernet Jack/Magjack RJ45/RJ45 Modular Jack
Connector Type	RJ45
Speed	1000M/ 2.5G/ 5G/ 10G
Orientation	90° Angle (Right)/180° Angle
Termination	Solder
LED Color	Green-Yellow/ Yellow-Green
Number of Cores per Jack	4/6/8/12
Shielding	With Shielded/ EMI Finger
Number of Ports	Single port, Multi-ports,
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

PRODUCT OVERVIEW

DETAIL IMAGES

For mass order. we will use the auto machine for soldering.

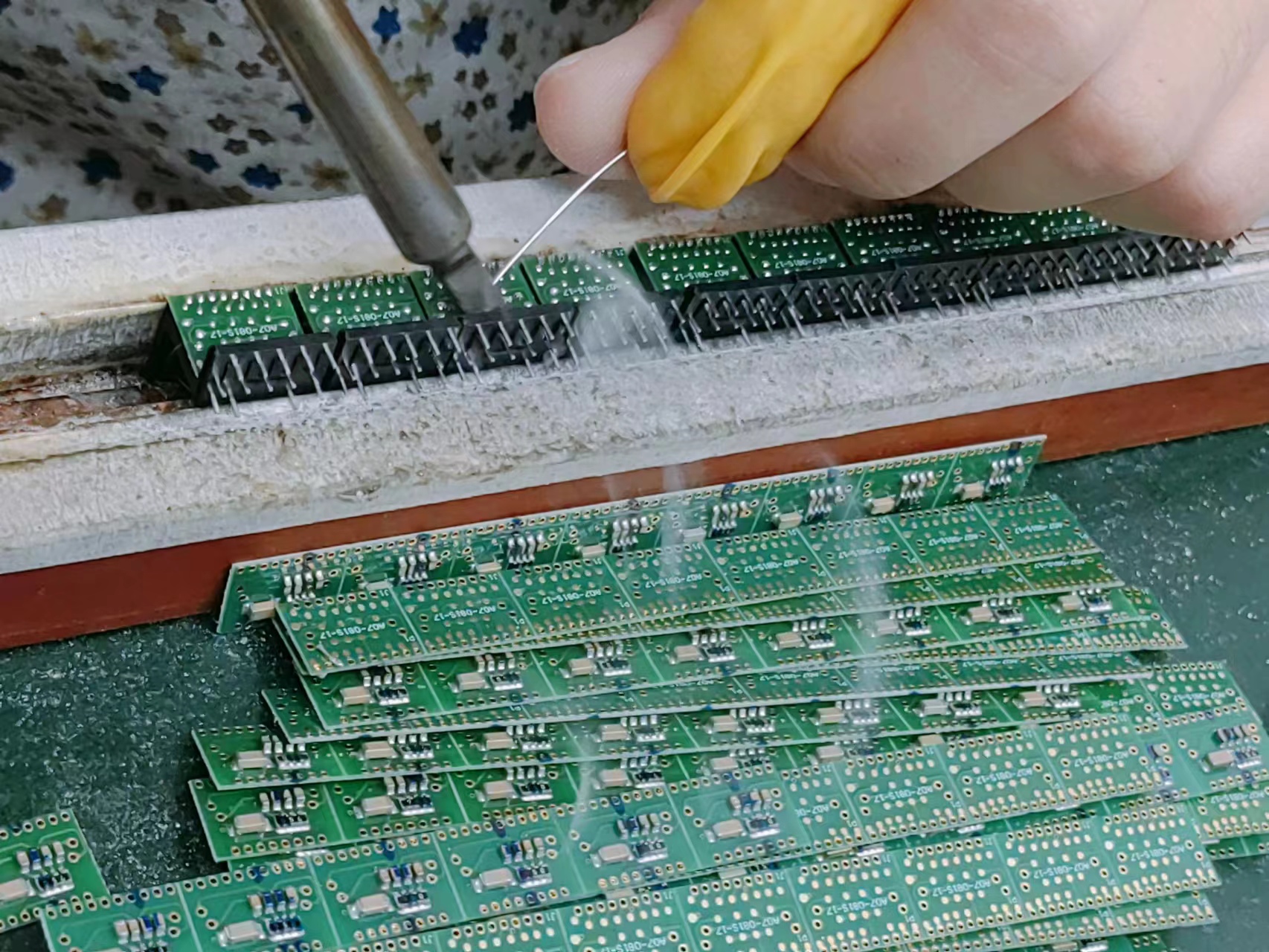

But for small order or sample, we will solder by hand.

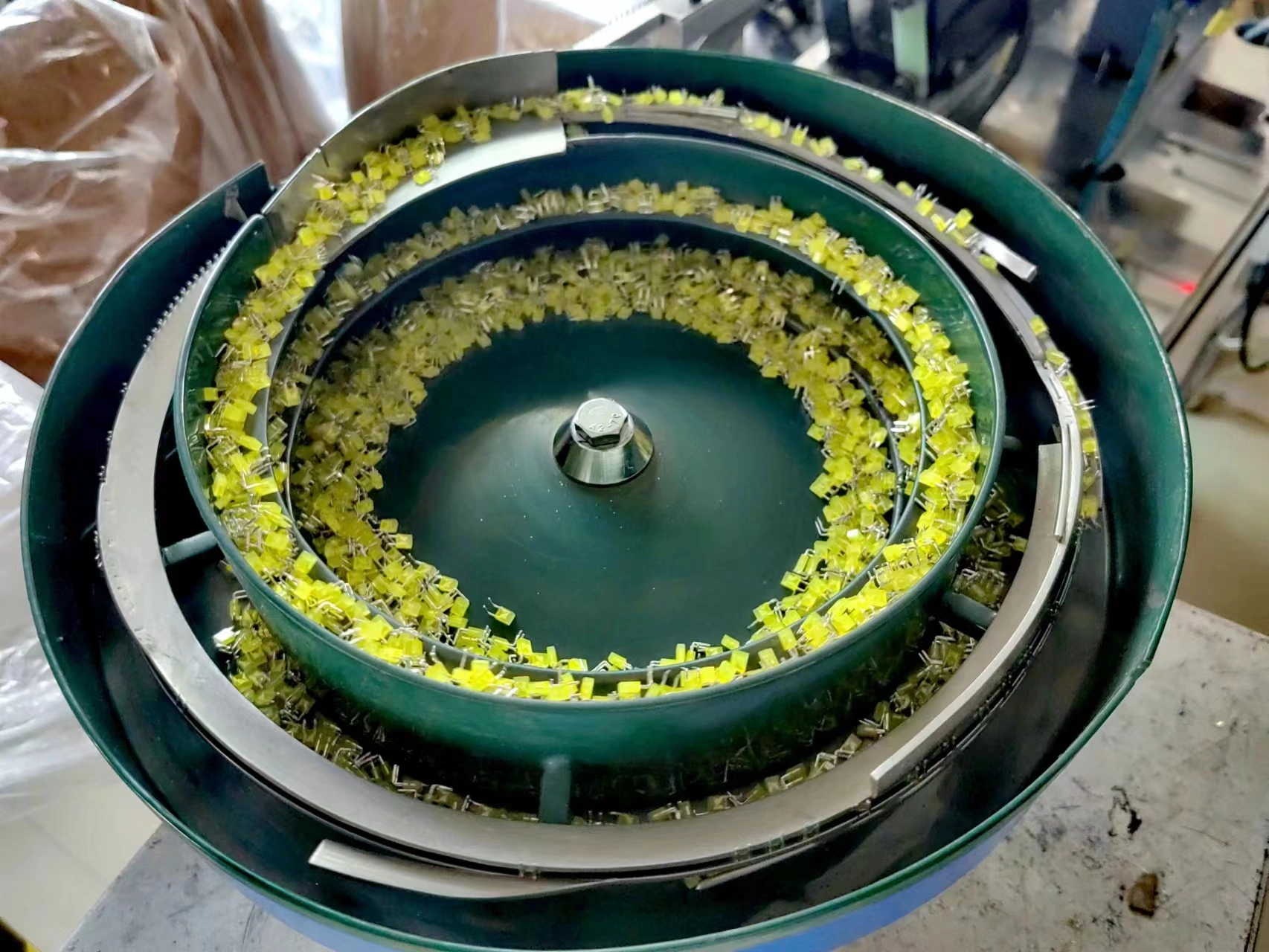

Auto Led assembly with plastic case

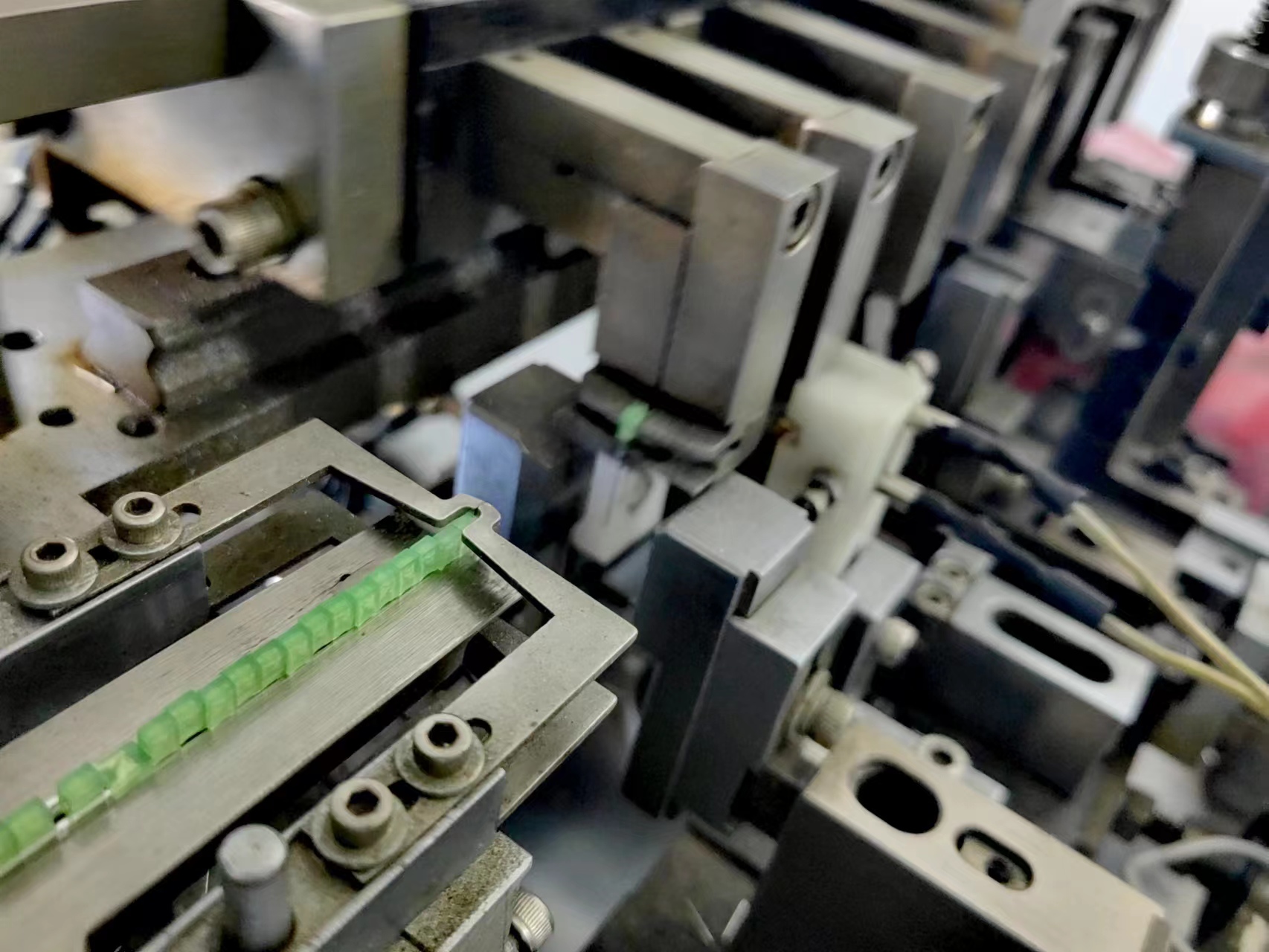

Auto machine to cut the Led, so they can be auto assemblied with plastic case.

PRODUCY USAGE

PoE RJ45 used for Raspberry Pi board

The speed and performance of the new Raspberry Pi 4 is a step up from earlier models, you'll find the experience smooth and very

recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.

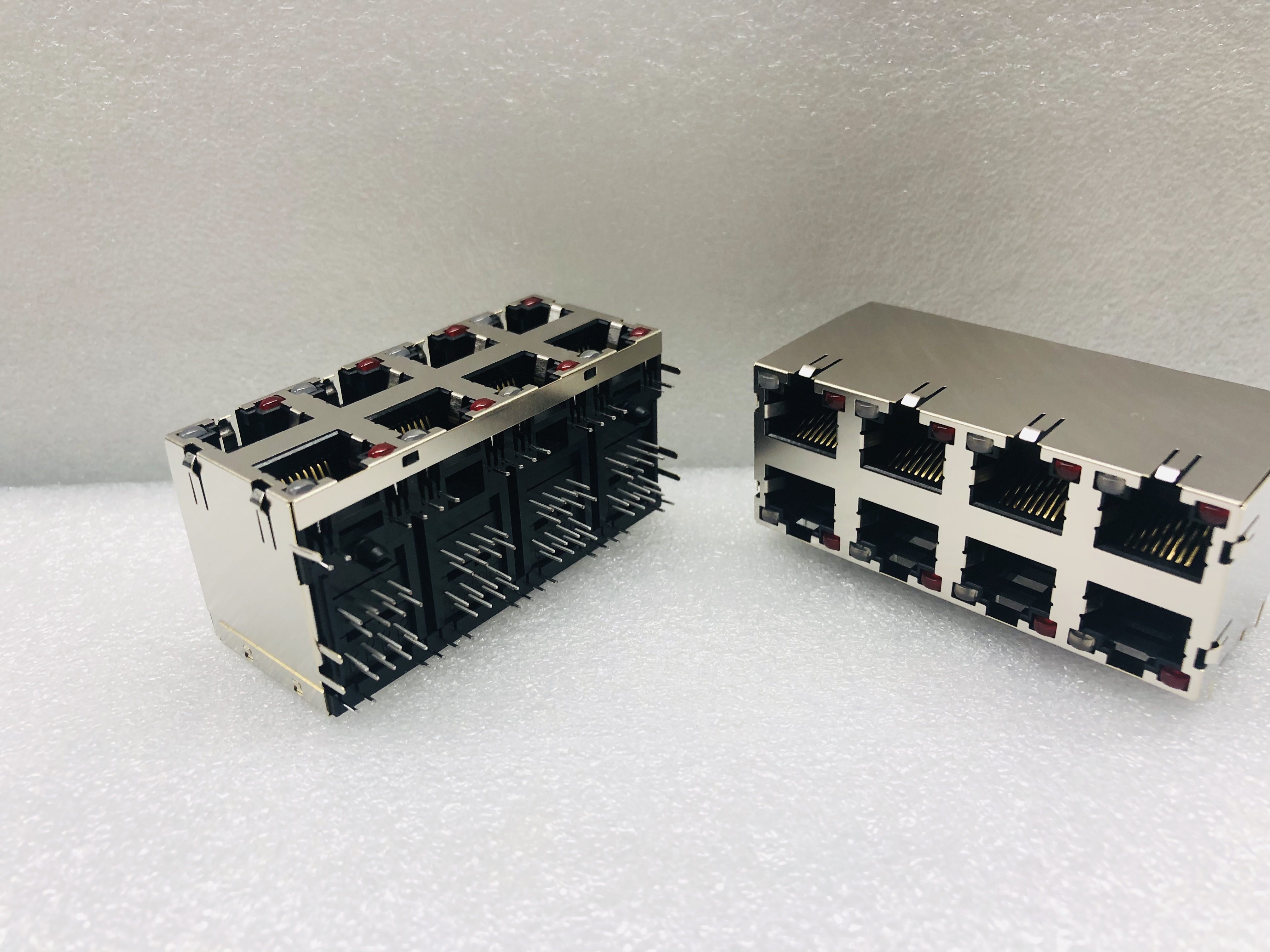

2x4 multiple ports stacked RJ45 Ethernet Connector

The products are widely used in networking and communication equipments.

PACKING&SHIPPING

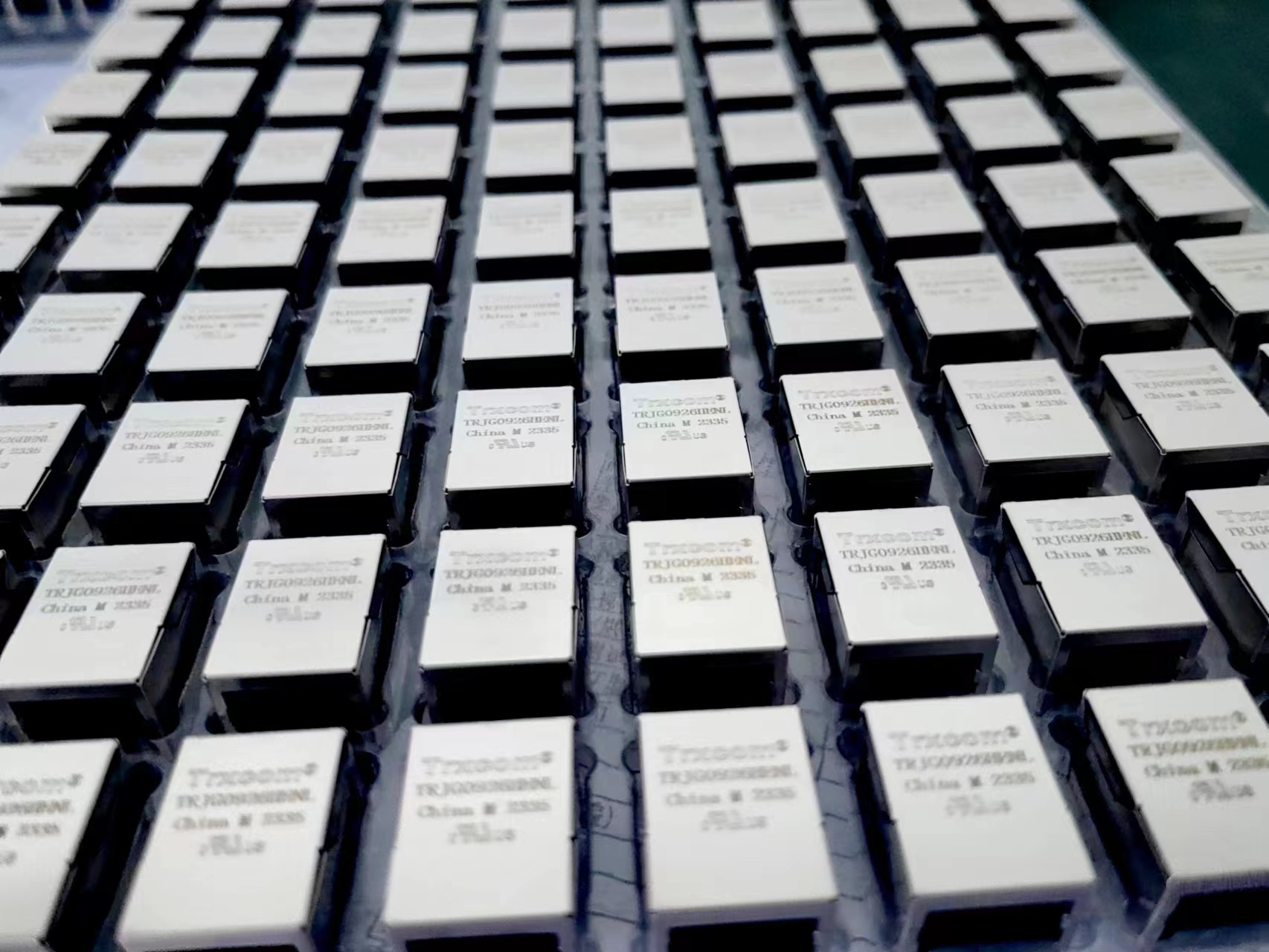

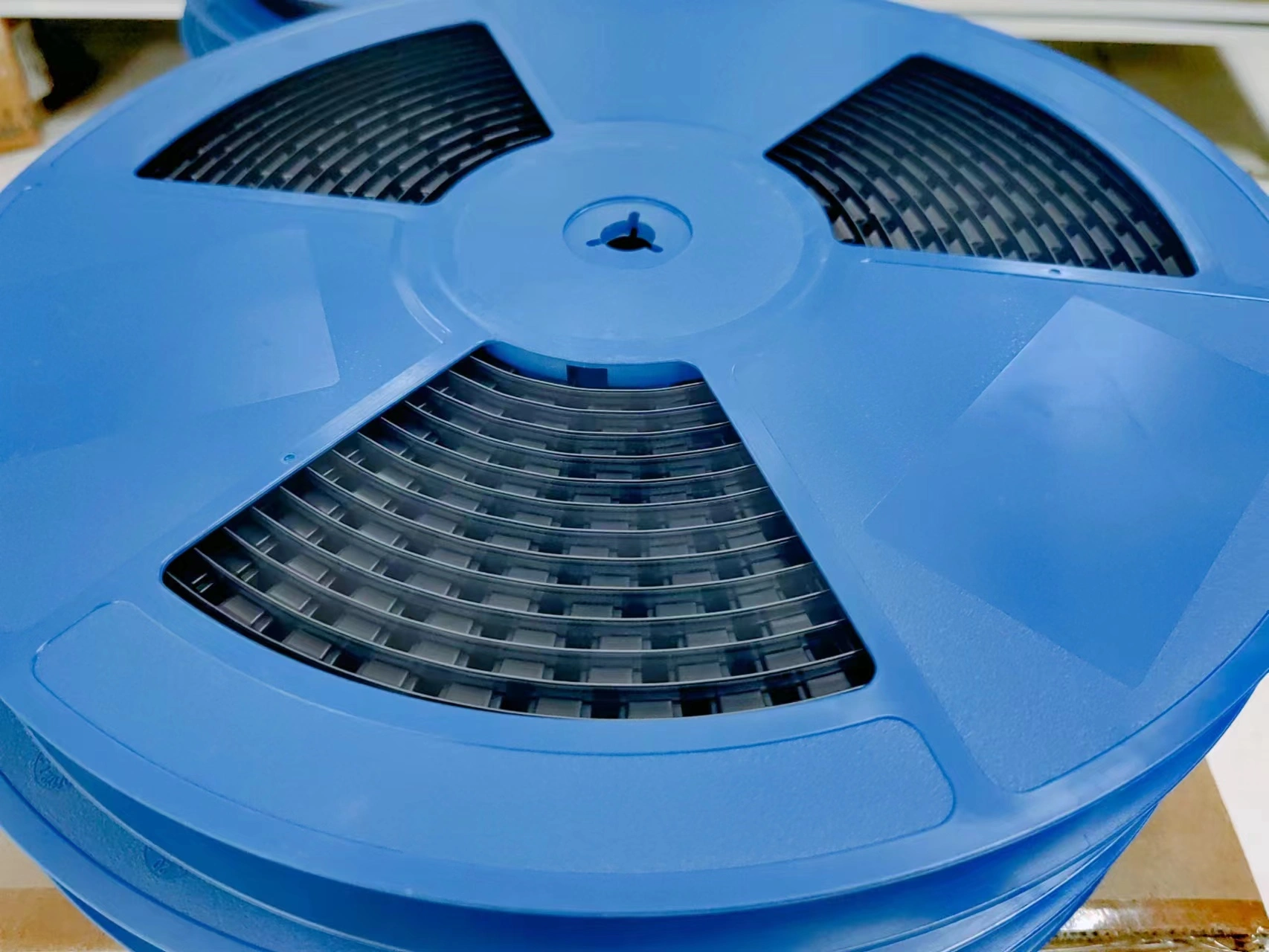

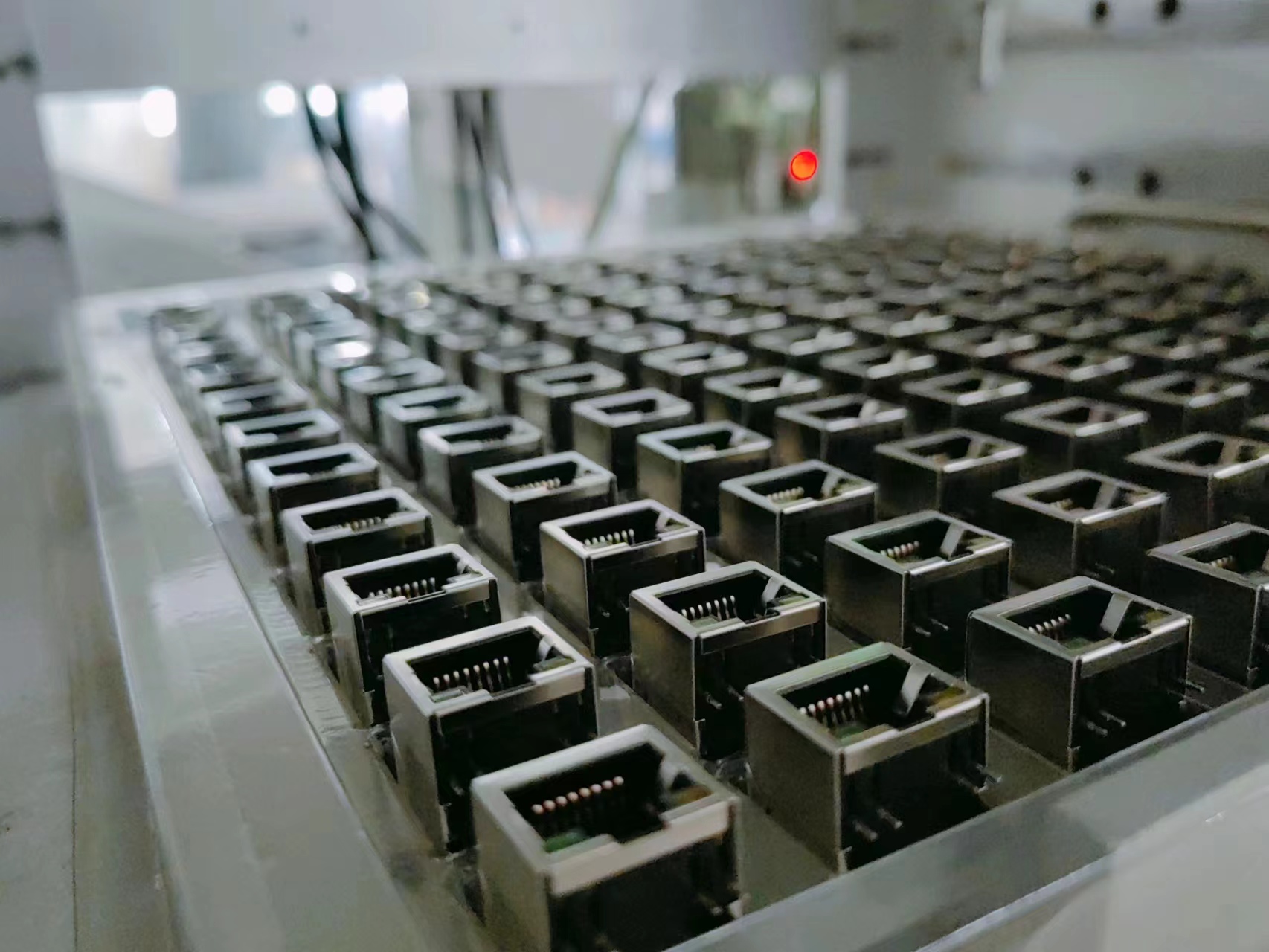

Usually we have standard Tray and T&R package for RJ45 Ethernet connector.

COMPANY INTRODUCTION

Established in 2020, Jiaxun is a leading manufacturer of RJ45 connector with magnetics, lan transformer, Audio transformer in the world. We have 1000 staff at present, all products are RoHs, UL, ISO9000, ISO9001:2008 approved. With the abundant productive capacity of 5000K per month, advanced manufacturing facilities and test equipments imported from abroad, powerful research and development team, highly controlled quality management system, competitive price, we are able to deliver the goods within the
short time.
Moreover, we can provide the professional complete solution for magnetic components and strong technical supports as well. Trxcomis a global supplier magnetic telecom and networking components, the OEM and ODM are welcome.

Our Services & Strength

1. With professional R&D team, we can recommend suitable products for your new project new design.2. We have compatible
alternatives for most brands like Pulse, Halo, Bothhand, Belfuse, Wurth, Amphenol, Molex, TE, XFMRS,UDE…..

FAQ

1. Are you the original factory?

Yes our Jiaxun factory is located in Huizhou, China.

2. How long have you been in field of electronic components?
Our brand Trxcom have been in producing RJ45 conenctor and Lan transformer since 1999.

3. Can we get free samples for proto?
Yes we provide free samples for testing, and support small quantity at the early design stage.

4. How to place the order:
-Please send your demand datasheet to us.
-We will provide drop in alternative and price for refer.
-If price ok, then we will send you some free sample for testing.
-After testing, you can place the mass order and process the payment.
-The lead time for mass order usually is about 4 weeks.
-When the order is ready, we will ship out and send you the shipping details for tracking.
