Model No: RJ45 Ethernet Connector
1×2 Dual-port RJ45 Ethernet Connector with Built-in LAN Transformer UL Certification
This compact 1×2 dual-port RJ45 connector features integrated magnetics (LAN transformers) within each port for robust Ethernet signal conditioning. It provides reliable LAN connectivity in a space-saving design and carries UL Certification, ensuring compliance with essential North American safety standards for electronic components.
minimum order :
2 pieces
Stock Time :
7Day
Quantity :
- Model Number:TRJD5049BENL
- Type:Electronic component, Vertical
- Place of Origin:Guangdong, China
- Brand:Jiaxun
- Packaging:Tray package
- Description:RJ45 Connector
- Speed:10/100M
- Tab:Up
- Port:1X1
- Left Led:Green
- Right Led:Yellow
- Cross p/n:7499210123A
- Pin type:THT Soldering
- UL:E321120
- Sample:Free sample supported
Product Description

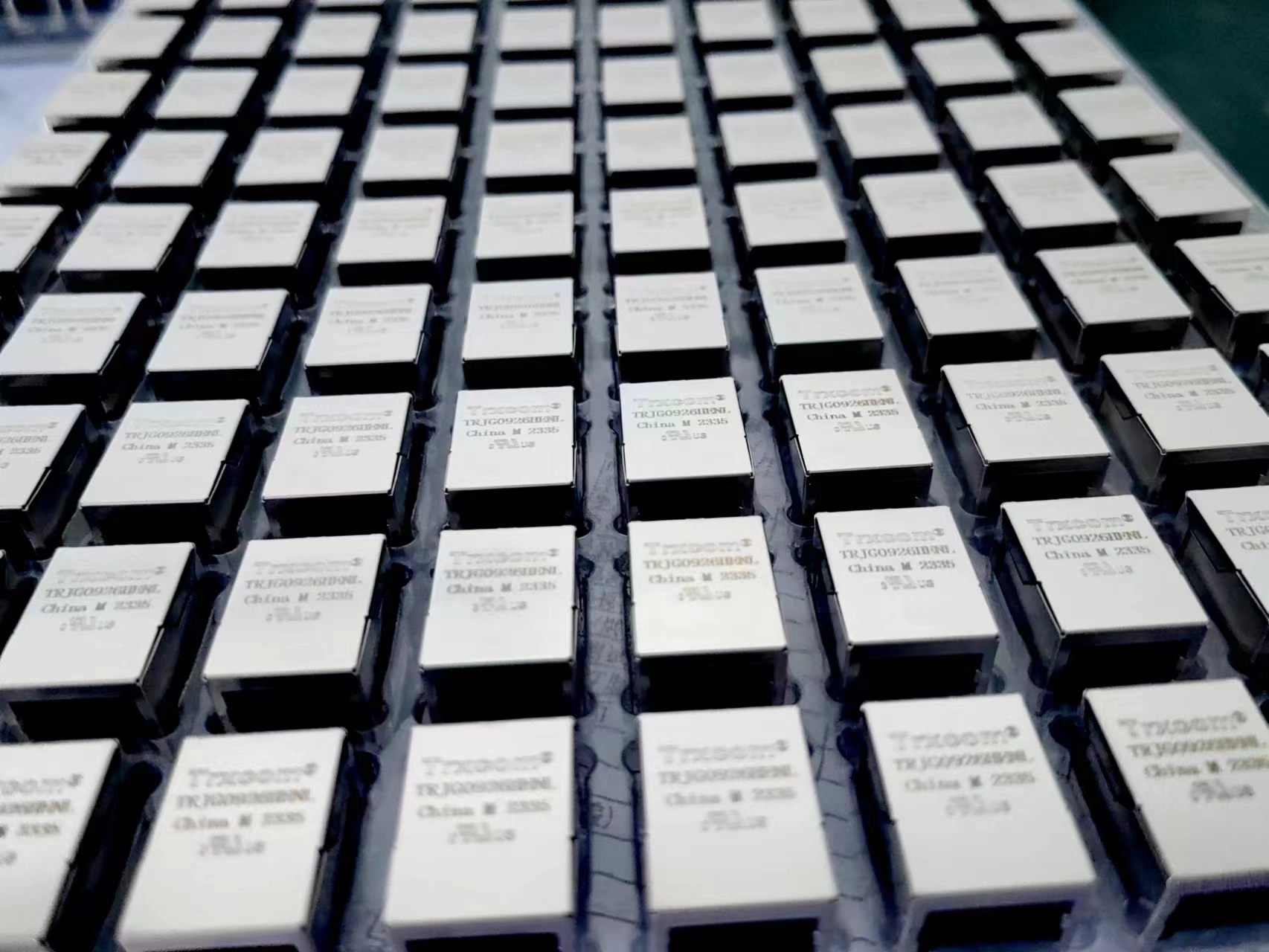

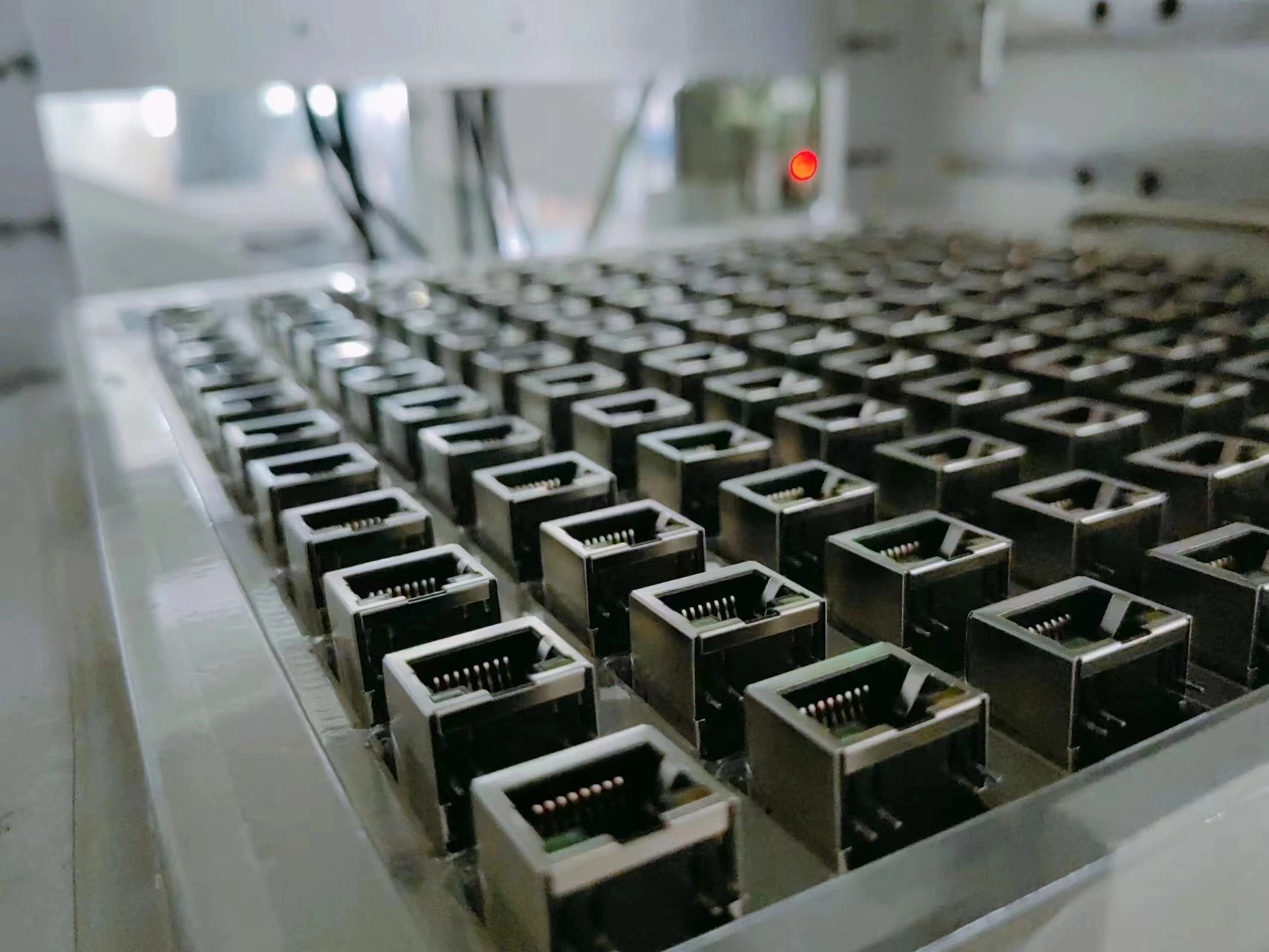

Product Name | Vertical PoE Top Entry Straight Ethernet RJ45 Connector With 10/100 Base-t Magnetics TRJD5049BENL cross to 7499210123A |
Trxcom p/n | TRJD5049BENL |
Cross p/n | 7499210123A |
Package | 1000pcs in one carton |
- ELECTRICAL SPECFICATIONS @25C
1.Turns Ratios: Pri:Sec = 1CT:1CT
2.OCL(@100KHz,0.1V,8mA DC Bias):
350uH MIN
3.Insertion Loss:
0.5～100MHz:-1.1dB MAX
4.Return Loss:
0.5～40MHz:-18dB MIN
40.1～100MHz:-12-20LOG(f/80)dB MIN.
5.Crosstalk:
0.5～40MHz:-35dB MIN
40.1～100MHz:-33-20LOG(f/50)dB MIN.
6.Common Mode Rejection Ratio:
0.5～100MHz:-30dB MIN
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: -40℃～+85℃.
Details Images
For mass order. we will use the auto machine for soldering.

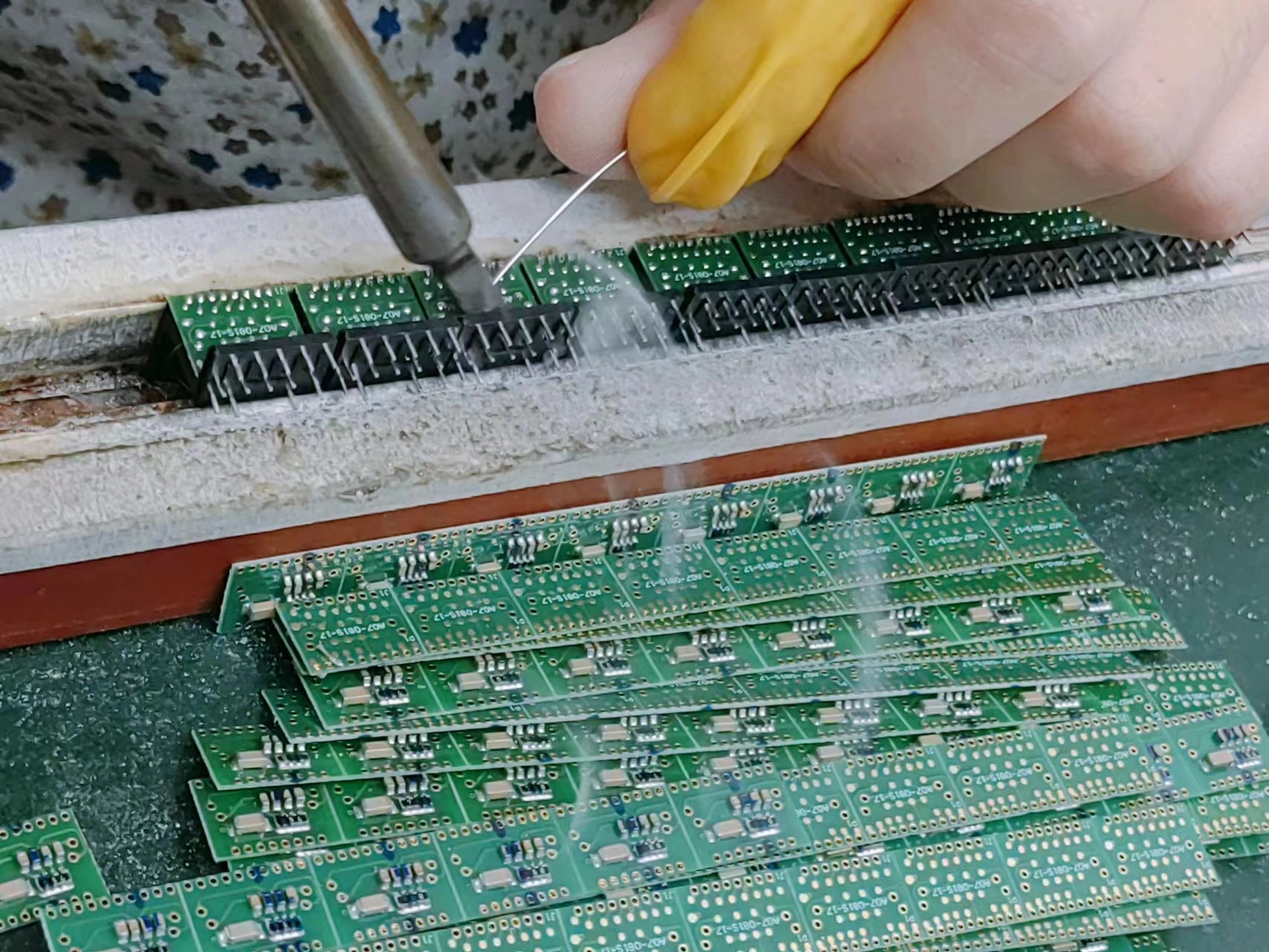

But for small order or sample, we will solder by hand.

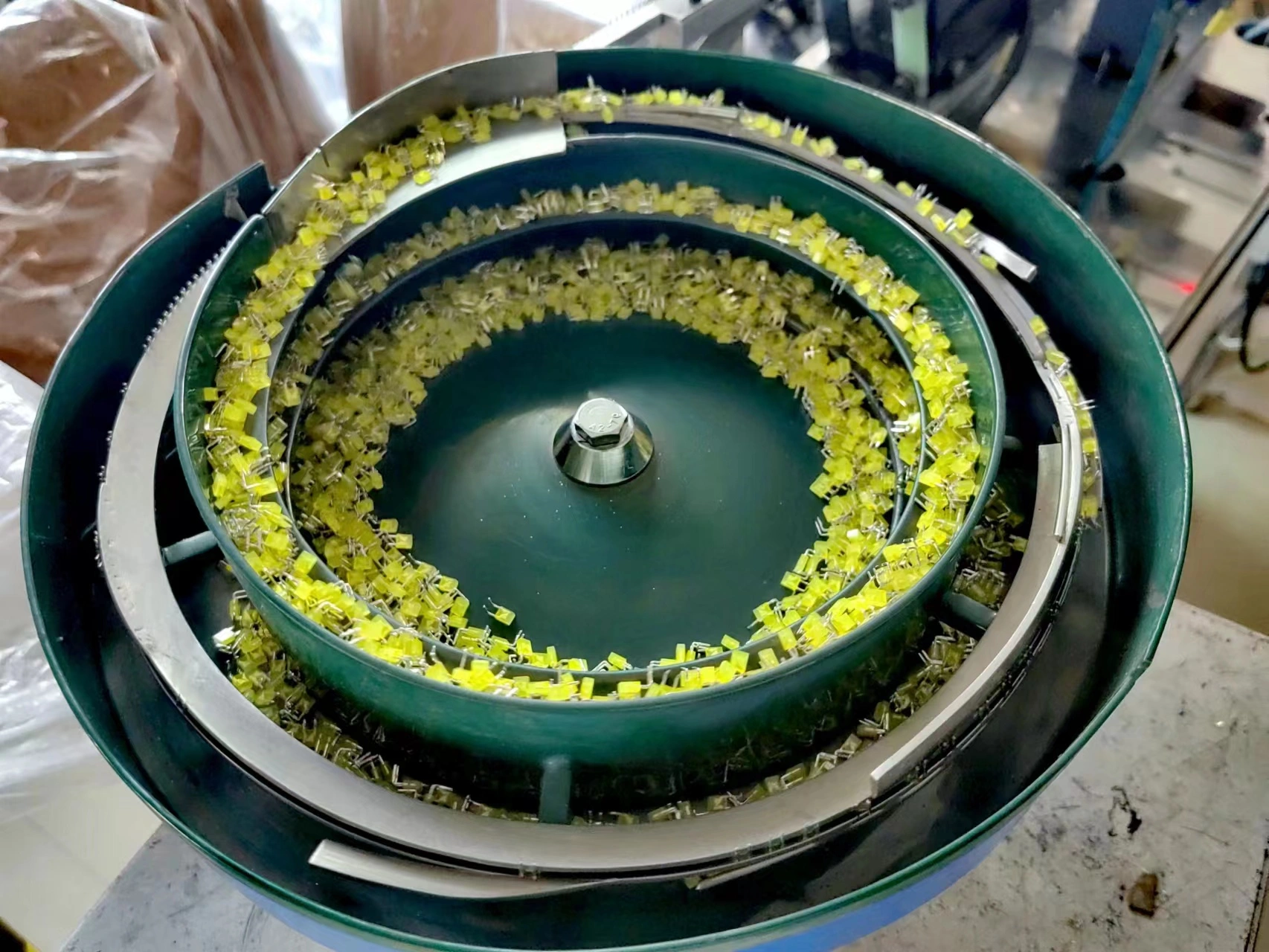

Auto Led assembly with plastic case.

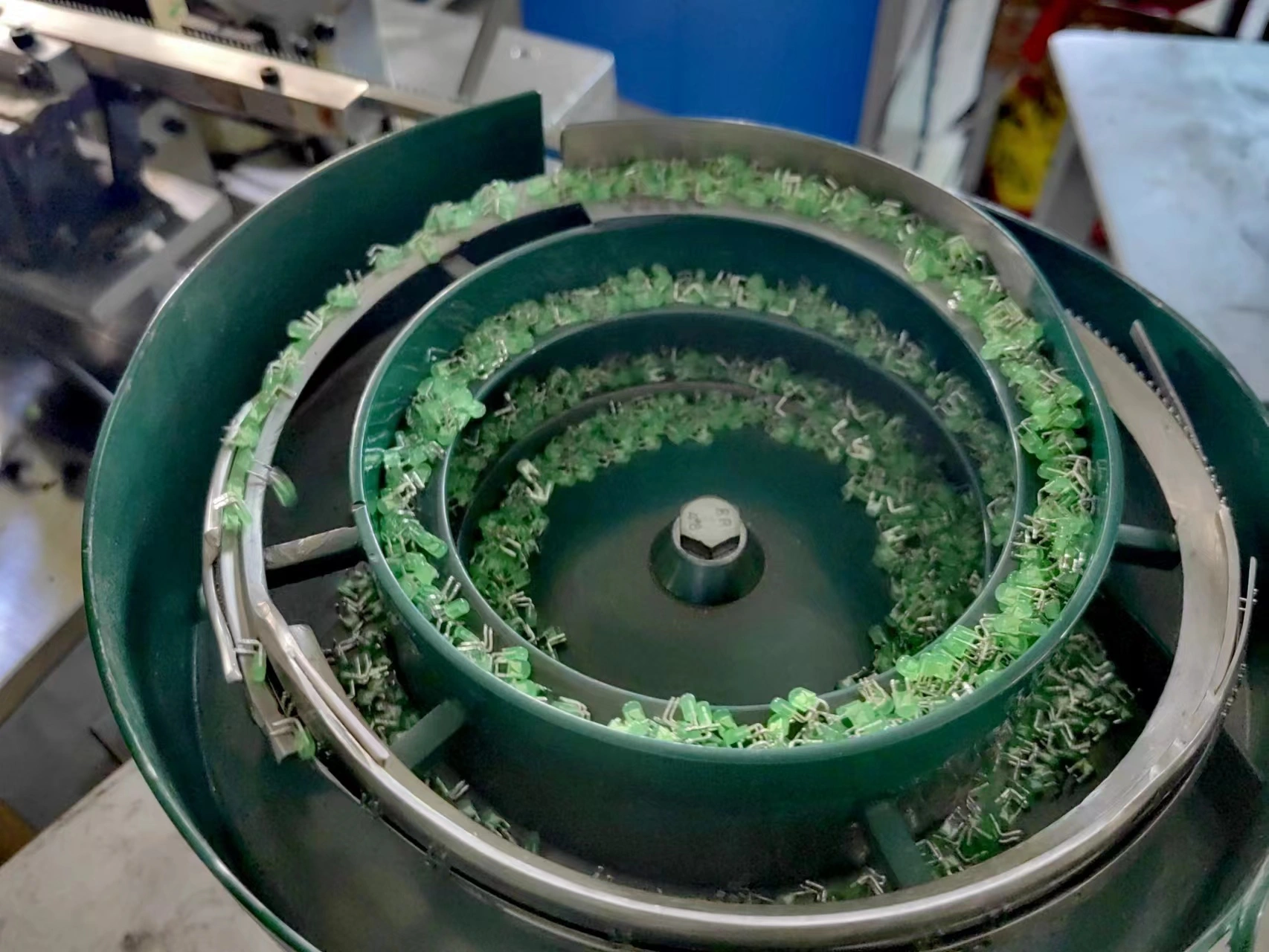

Auto machine to cut the Led, so they can be auto assemblied with plastic case.
Product Usage

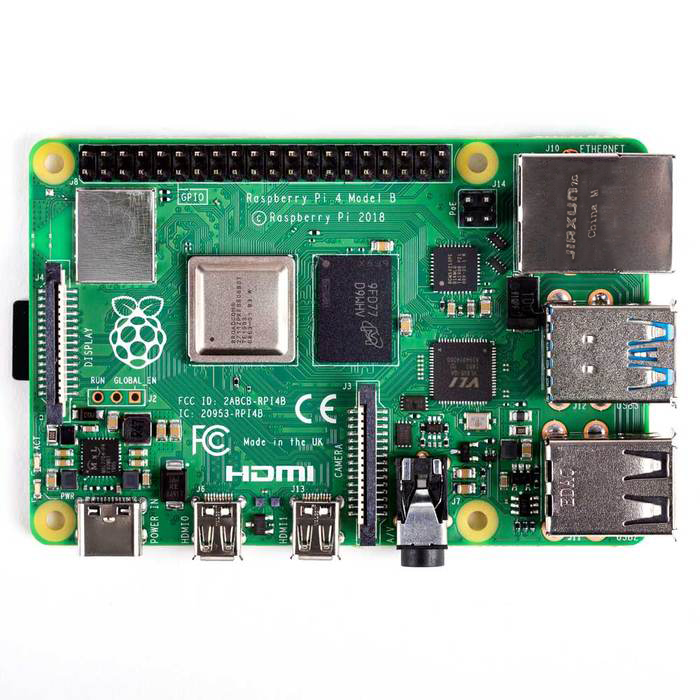

PoE RJ45 used for Raspberry Pi board
The speed and performance of the new Raspberry Pi 4 is a step up from earlier models, you'll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.

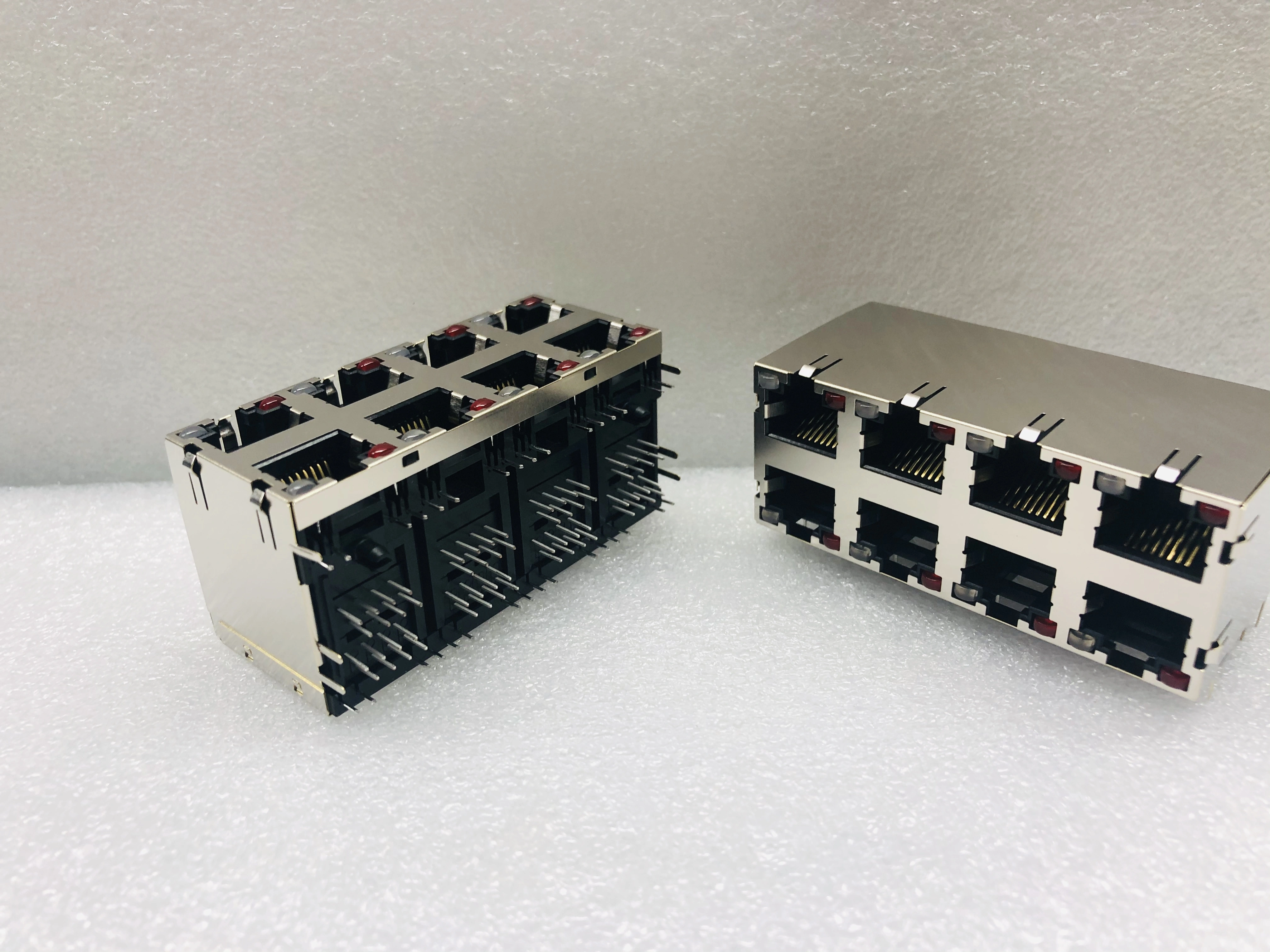

2x4 multiple ports stacked RJ45 connector
The products are widely used in networking and communication equipments.
Related Products
Packing&Shipping

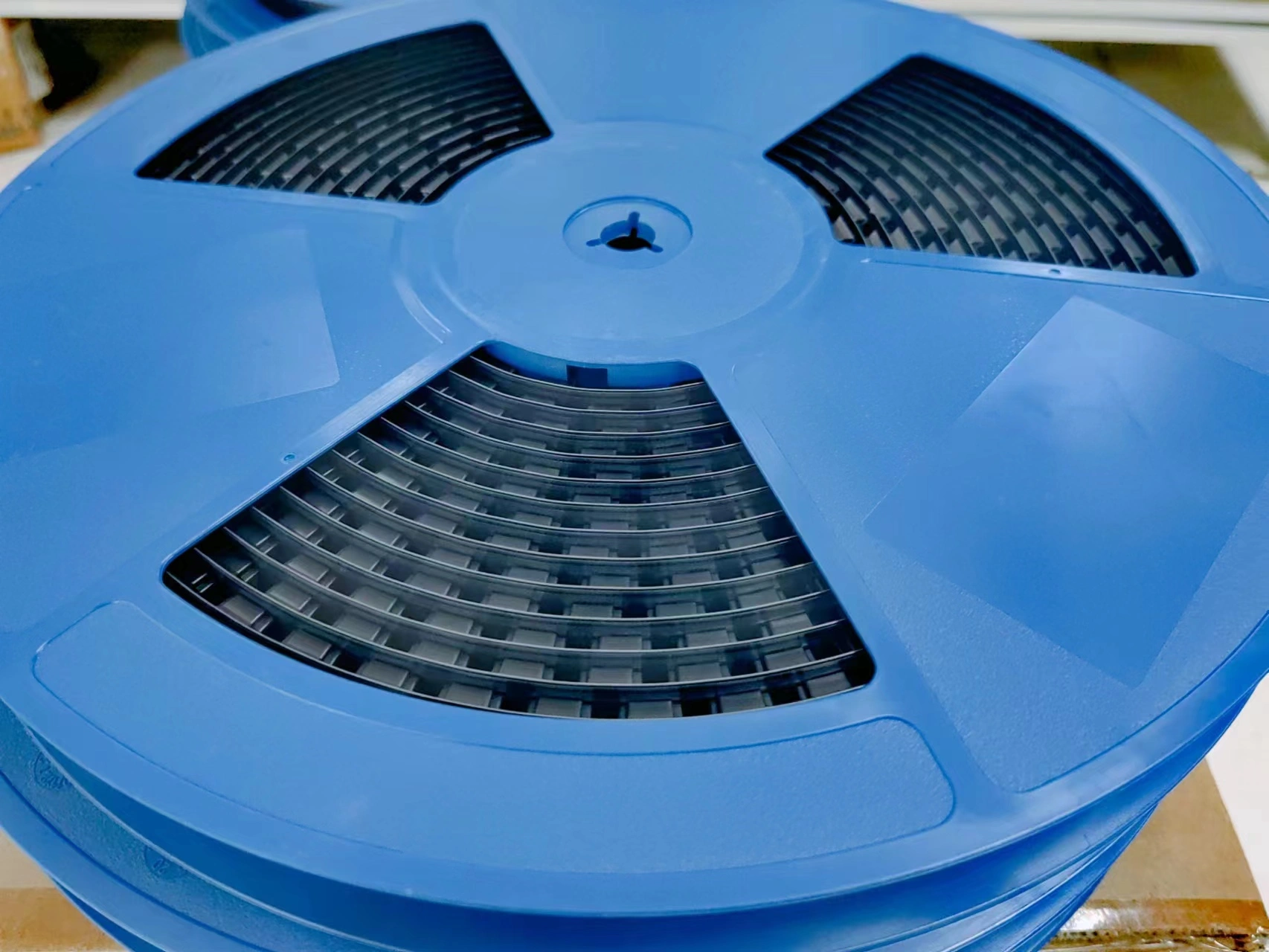

Usually we have standard Tray and T&R package for RJ45 Ethernet connector.
