Model No: JX0017AB

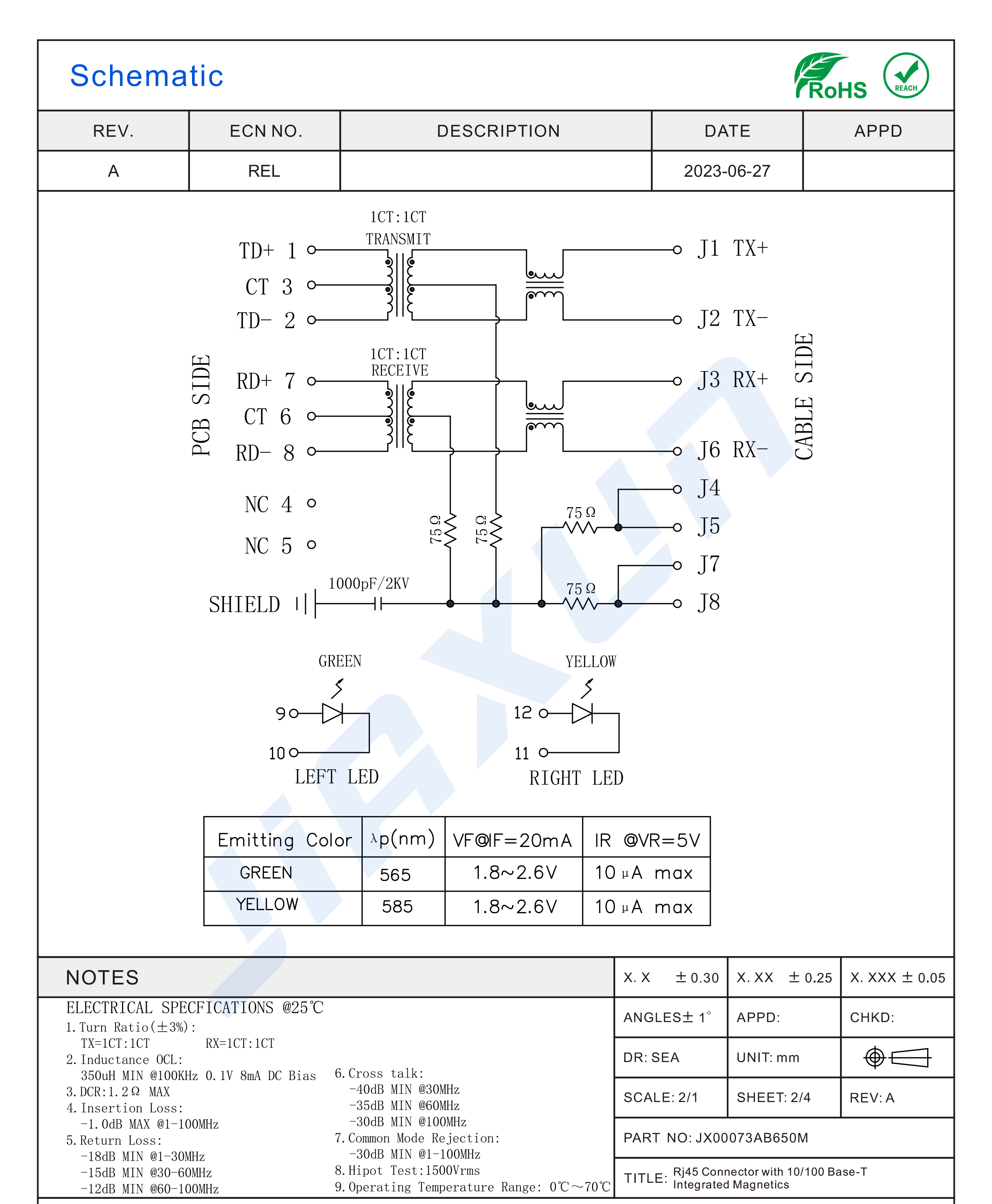

Single Port 10/100 Base-T RJ45 Connector with Integrated Magnetics Tab Down Green/Yellow Led
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
500000pieces / Month
Stock Time :
7Day
Country of Origin :
Guangdong, China
Quantity :
JIAXUN JX0017AB 10/100 Base-T Ethernet RJ45 Network Socket for Ethernet Control and Entrance Guard System (Rectifier Diode, POE, Single Port, Tab Down, Green/Yellow Led)
The JX0017AB supports speed 10/100 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Entrance Guard System.
| Model Number | JX0017AB | Type | RJ45 |
| Place of Origin | Guangdong, China | Brand | JIAXUNZG |
| Packaging | Tape & Reel | Description | Ethernet RJ45 Connector |
| D/C | 22500 | Installation | Through Hole |
| Operating Temperature | 0℃~70℃ | Contact Material | Phosphor Bronze |
| Connector Type | RJ45 | Shielding | EMI Shielded |
| Number of Ports | 1 | Contact Finish | Gold-Plated |
| Orientation | Vertical, Down | Number of Rows | 1 |
| Pins | 8 PIN | Number of Cores | 4-core |

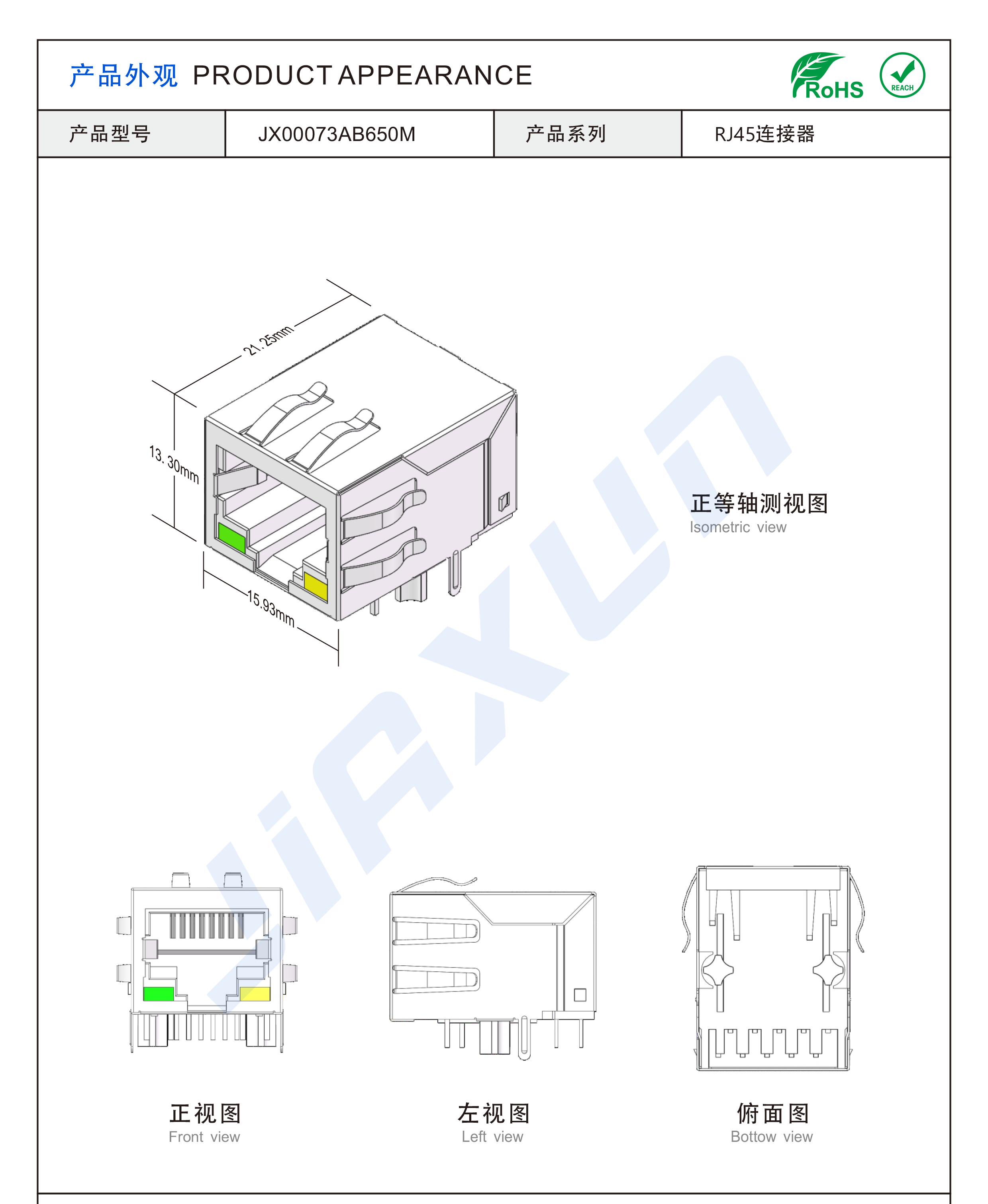

| Height Above Board | 13.3 | Terminals | 1 |
| RJ45 Connector Application | SOHOLAN-on-MotherboardHubSwitch | RJ45 Connector Coil Structure | Toroidal |
| Professional certificate | ISO9001:2008/UL/Supplier Assessment Certificate | RJ45 Connector Hi-pot | 1500Vrms |
| RJ45 Connector OCL | 350uh min | RJ45 Connector Speed | 10/100/1000/10G Base-TX |
| Brand Name | JIAXUN RJ45 |
Keywords :Single Port RJ45 Connector ,SMT RJ45 Female Connector ,SMT RJ45 MagJack Connector
