RJ45 Connector with 10/100 Base-T Integrated Magnetics

1000/2.5G/5G Base-T RJ45 Modular Connector 10p8c 8p8c Cat5 Cat5e Cat6 Cat6a RJ45 Ethernet Jack

minimum order :

2 pieces

Stock Time :

7Day

add to cart

Contact Now

RJ45 Connector with 10/100 Base-T Integrated Magnetics with Yellow / Green Tab Up

1.Designed to support application, such as SOHO(ADSLmodems),LAN-on-Motherboard(LOM),hub and Switches.

2.Meets IEEE 802.3 specification

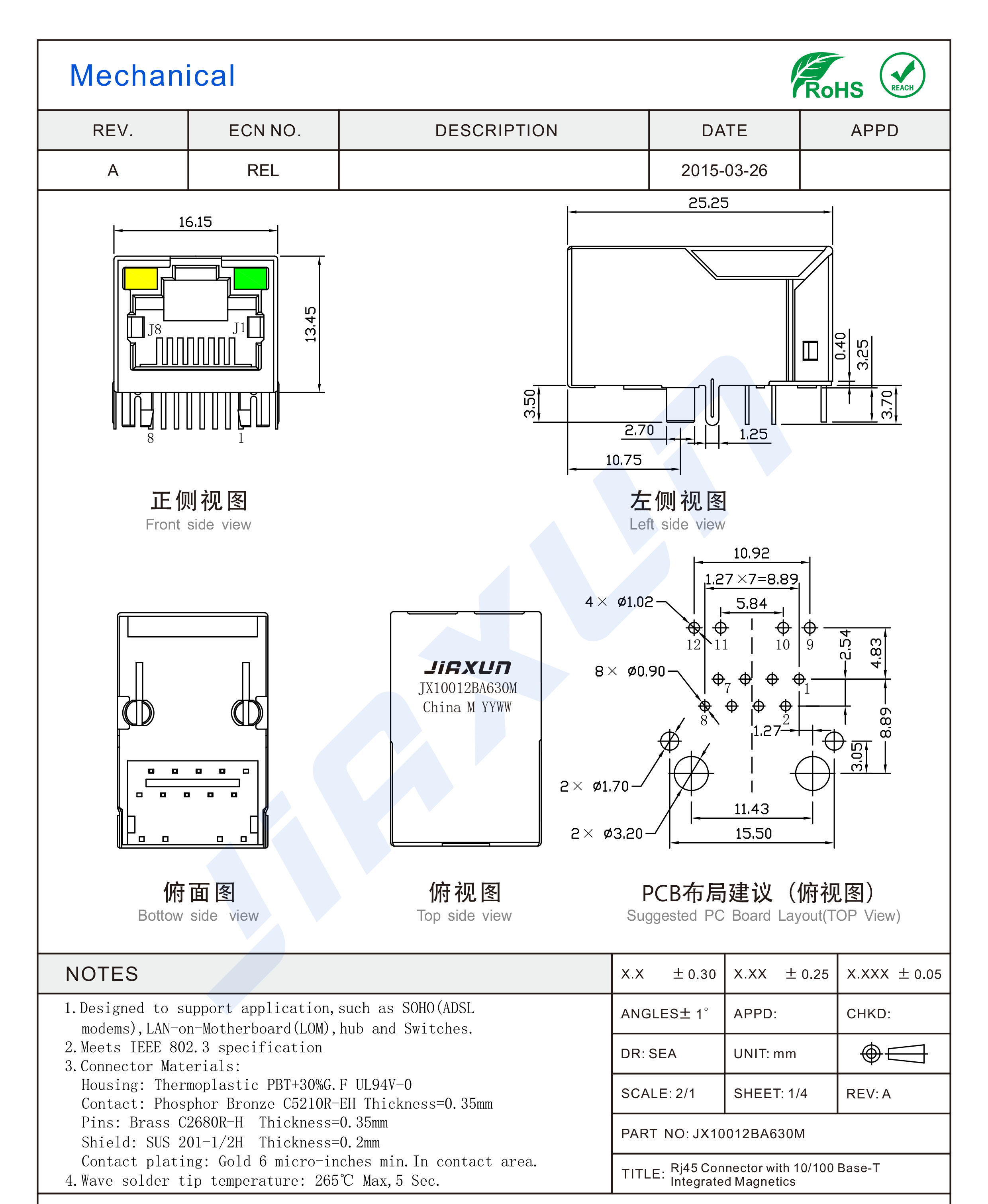

3.Connector Materials:

Housing:Thermoplastic PBT+30%G.F UL94V-0Contact:Phosphor BronzeC5210R-EHThickness=0.35mm

Pins:Brass C2680R-H Thickness=0.35mm

Shield:SUS 201-1/2H Thickness=0.2mm

Contact plating:Gold 6 micro-inches min.In contact area.

4.Wave solder tip temperature:265℃ Max,5 Sec.

Model Number	JX1014BG	Type	RJ45
Place of Origin	Guangdong, China	Brand Name	JIAXUNZG / JIAXUN RJ45

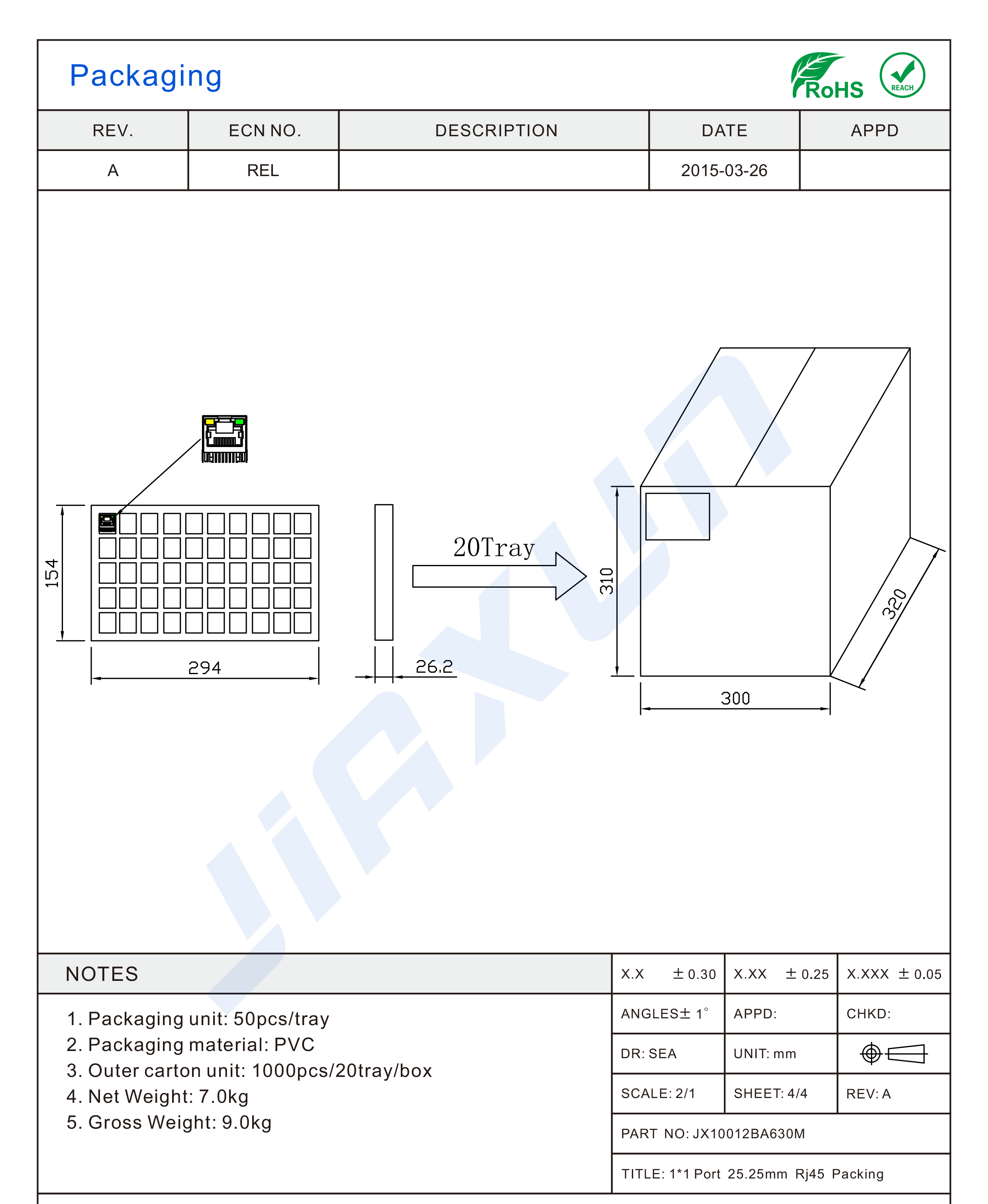

Packaging	Tape & Reel	D/C	22500
Installation	Through Hole	Operating Temperature	0℃~70℃
Contact Material	Phosphor Bronze	Connector Type	RJ45
Shielding	EMI Shielded	Number of Ports	1
Contact Finish	Gold-Plated	Orientation	Vertical, Up
Number of Rows	1	Pins	8 PIN
Number of Cores	4-core	Height Above Board	13.3
Terminals	1	Description	Ethernet RJ45 Connector
RJ45 Connector Application	SOHOLAN-on-MotherboardHubSwitch	RJ45 Connector Coil Structure	Toroidal
Professional certificate	ISO9001:2008/UL/Supplier Assessment Certificate	RJ45 Connector Hi-pot	1500Vrms
RJ45 Connector OCL	350uh min	RJ45 Connector Speed	10/100/1000/10G Base-TX

FAQ

1. Are you factory or trading company?

Jia Xun (Huizhou) Intelligent Technology Co., Ltd. is a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector、lan transformer、RJ11 connector 、SFP modules、fiber optic cage、smart lighting solution and power carrier module, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

3. What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

4. What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5. Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

22 years of production experience and we are intel's and Jabil's partner for many years.
