Cisco SFP-10G-BX40D Compatible JS-BL332710-40C 10G SFP+ BIDI 1330nm-TX/1270nm-RX 10km DOM Simplex LC/UPC SMF Optic Transceiver Module
Cisco SFP-10G-BX40D Compatible JIAXUN JS-BL273310-40C 10Gbps SFP+ BIDI Transceiver, Single Mode Simplex LC/UPC Optical Transceiver Module(SMF, 1330nm-TX/1270nm-RX, 40km, LC, DOM)
The JS-BL273310-40C SFP+ transceivers are high-performance, cost-effective modules supporting a data rate of 10Gbps and a transmission distance of up to 40km using Single Mode Fiber (SMF). These transceivers comprise three key sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules meet class I laser safety requirements. Additionally, the transceivers are compatible with the SFP Multi-Source Agreement (MSA) and SFF-8472 digital diagnostics functions, ensuring reliable performance and ease of integration.

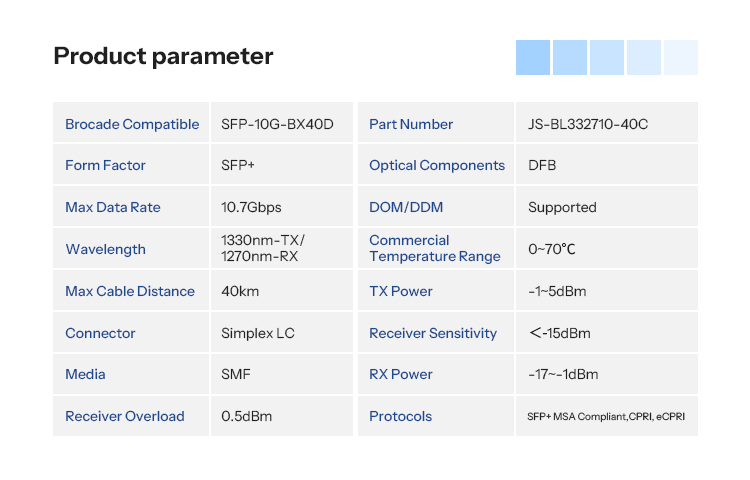

| Model Number | JS-BL332710-40C | Type | Fiber Optic Transceivers |
| Place of Origin | Guangdong, China | Brand Name | JIAXUNZG |
| Use | Datacom, Telecom, FTTx, Wireless | Warranty Time | 5-Year |
| Network | WDM, Fixed Access, Wireless Access, Carrier Ethern | Port | 1 port |
| Power Source | AC 100-240v | Connector Type | SFP+ |
| Frequency Range | 40km | Max Data Rate | 10Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 40km |
| Connector | Simplex LC | Media | SMF |
| DDM | Supported | Temperature Range | 0 to 70°C / -40 to 85°C |
| Application | Data Communications | Single package size | 10X5X2 cm |
| Single gross weight | 0.040 KG |
Matched Pairs: It must be used in pairs with SFP+ 1270nm-TX/1330nm-RX.
Keywords:SFP+ module ,SFP & XFP Transceivers ,Optical module ,40km single mode optical fiber optic ,Cisco compatible SFP-10G-BX40D-I
