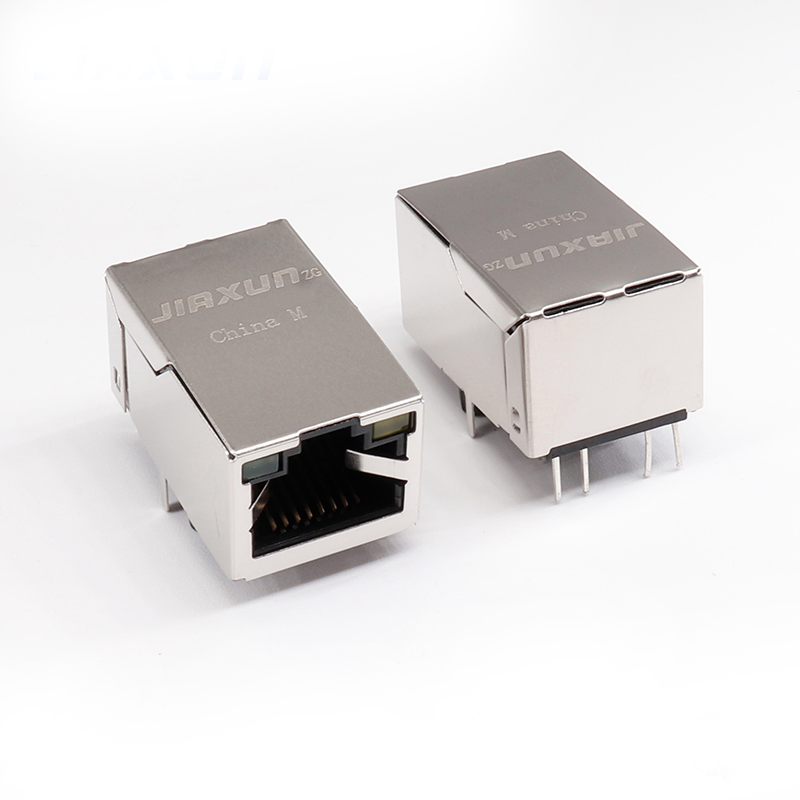

Model No: JX1014BG
Single Port 100/1000 Base-T RJ45 Modular Connector 10P8C Cat6A MagJack
RJ45 Connector with 10/100 Base-TIntegrated Magnetics , It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
5000000pieces / Month
Stock Time :
7Day
Country of Origin :
Guangdong, China
JIAXUN JX1014BG 10/100 Base-T 8P8C RJ-45 Network for Digital Camera and Smart Meters (Single Port, Tab Up, Green/Yellow Led)
The JX1014BG supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as The Handheld Device, Game Controller, Patient Care and Game Controller.
10P8C RJ45 Modular Connector,8P8C RJ45 Modular Jack,RJ45 Cat5,RJ45 Cat6,RJ45 Cat6A,RJ45 Cat5E
10P8C RJ45 Modular Connector,8P8C RJ45 Modular Jack,RJ45 Cat5,RJ45 Cat6,RJ45 Cat6A,RJ45 Cat5E
- Model Number:JX1014BG
- Type:RJ45
- Place of Origin:Guangdong, China
- Brand:JIAXUNZG
- Packaging:Tape & Reel
- Description:Ethernet RJ45 Connector
- D/C:22500
- Installation:Through Hole
- Operating Temperature:0℃~70℃
- Contact Material:Phosphor Bronze
- Connector Type:RJ45
- Shielding:EMI Shielded
- Number of Ports:1
- Contact Finish:Gold-Plated
- Orientation:Vertical, Up
- Number of Rows:1
- Pins:8 PIN
- Number of Cores:4-core
- Height Above Board:13.3
- Terminals:1
- RJ45 Connector Application:SOHOLAN-on-MotherboardHubSwitch
- RJ45 Connector Coil Structure:Toroidal
- Professional certificate:ISO9001:2008/UL/Supplier Assessment Certificate
- RJ45 Connector Hi-pot:1500Vrms
- RJ45 Connector OCL:350uh min
- RJ45 Connector Speed:10/100/1000/10G Base-TX
- Brand Name:JIAXUN RJ45
1.Designed to support application, such as SOHO(ADSLmodems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact:Phosphor BronzeC5210R-EH Thickness=0.35mm
Pins:Brass C2680R-H Thickness=0.35mm
Shield:SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature:265℃ Max,5 Sec.
FAQ
1. Are you factory or trading company?
Jia Xun (Huizhou) Intelligent Technology Co., Ltd. is a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector、lan transformer、RJ11 connector 、SFP modules、fiber optic cage、smart lighting solution and power carrier module, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
22 years of production experience and we are intel's and Jabil's partner for many years.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
22 years of production experience and we are intel's and Jabil's partner for many years.
10P8C RJ45 Modular Connector,8P8C RJ45 Modular Jack,RJ45 Cat5,RJ45 Cat6,RJ45 Cat6A,RJ45 Cat5E
