Model No: Power Line Carrier Communication
street light control no wifi no 4G no rewiring required power line carrier communication smart light system
intelligent street light control system,
autommatic street light control system,
street light monitoring and controlling system
autommatic street light control system,
street light monitoring and controlling system
Delivery :
EXW
minimum order :
2 pieces
Supply Ability :
500000pieces / Month
Stock Time :
7Day
Country of Origin :
Guangdong, China
- Place of Origin:Guangdong, China
- Brand Name:JIAXUNZG
- Model Number:Power Line Carrier Communication
- Color Temperature(CCT):5000K (Daylight), 6000K (Daylight Alert), 4100K (Neutral White), 3500K (Warm White), 2700K (Soft Warm White)
- Lamp Body Material:aluminum alloy
- Input Voltage(V):AC 85-265V
- Warranty(Year):2-Year
- Working Temperature(℃):-40 - 85
- Power Supply:AC, DC
- Light Source:LED
- Support Dimmer:Yes
- Control Mode:Sensor control, APP Control, Remote Control, Switch Control
- DIY:Yes
- Lighting solutions service:Lighting and circuitry design, Project lighting design, Light drawing and design
- Design Style:Industrial
PLC IoT SMART LIGHTING
Micro Nature utilises power carrier (PLC) communication technology to connect led lights in various areas of urban roads and industrial factories to the IoT cloud platform for unified management. Scientific lighting strategies ensure precise brightness control, realising on-demand lighting and achieving energy-saving and environmentally friendly goals.

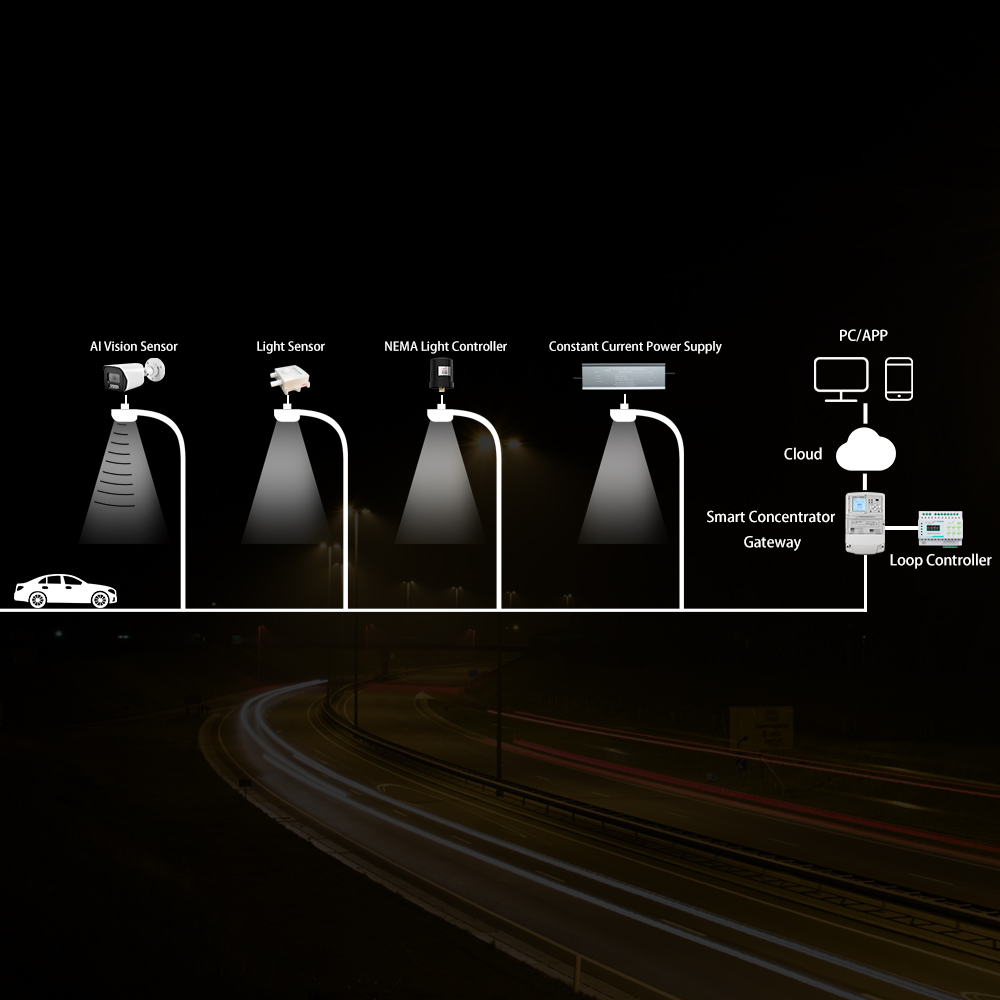

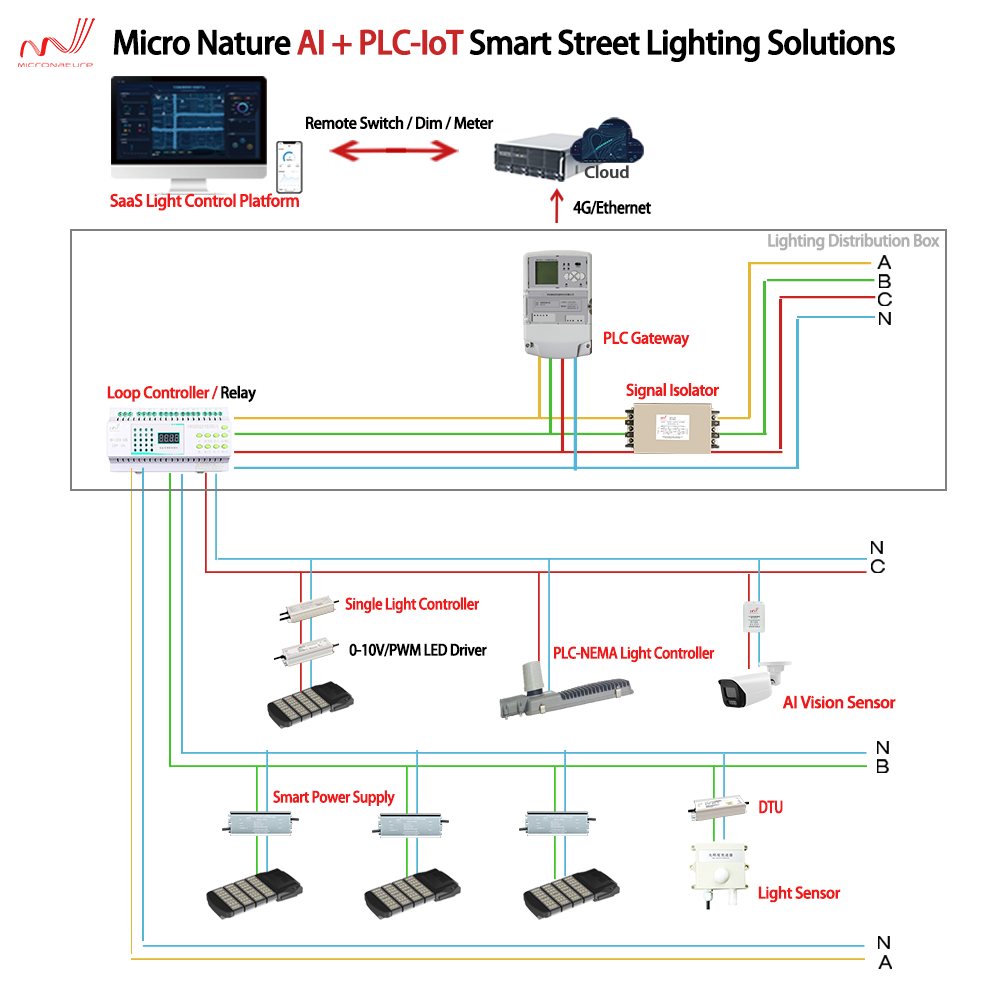

WIRING SCHEMATICS
PRODUCT DESCRIPTION
No | Item | Product Function |

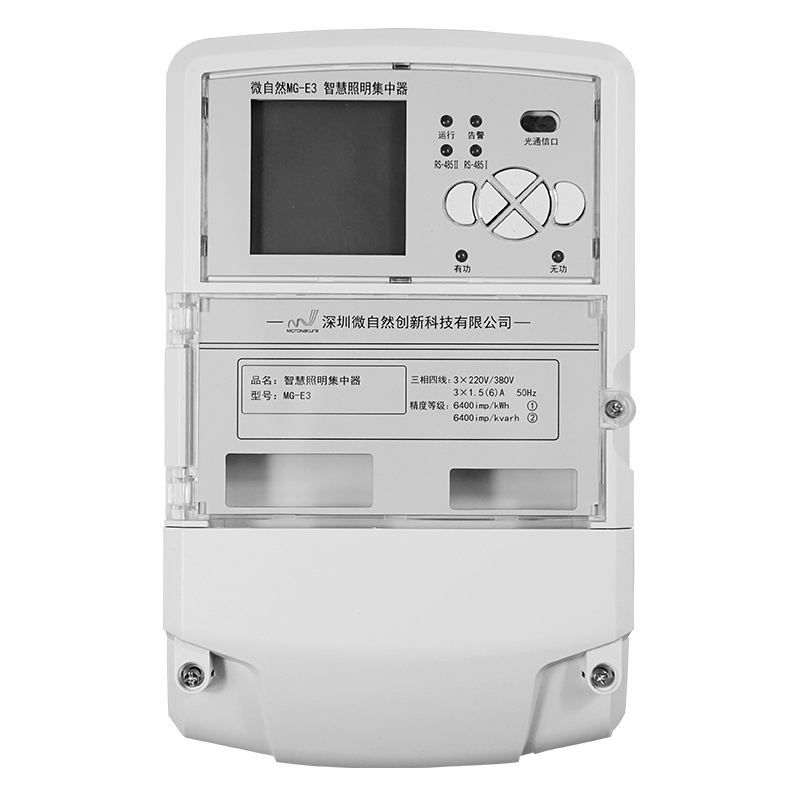

1 | PLC-IoT Gateway | Placement in a distribution box for centralised control. |

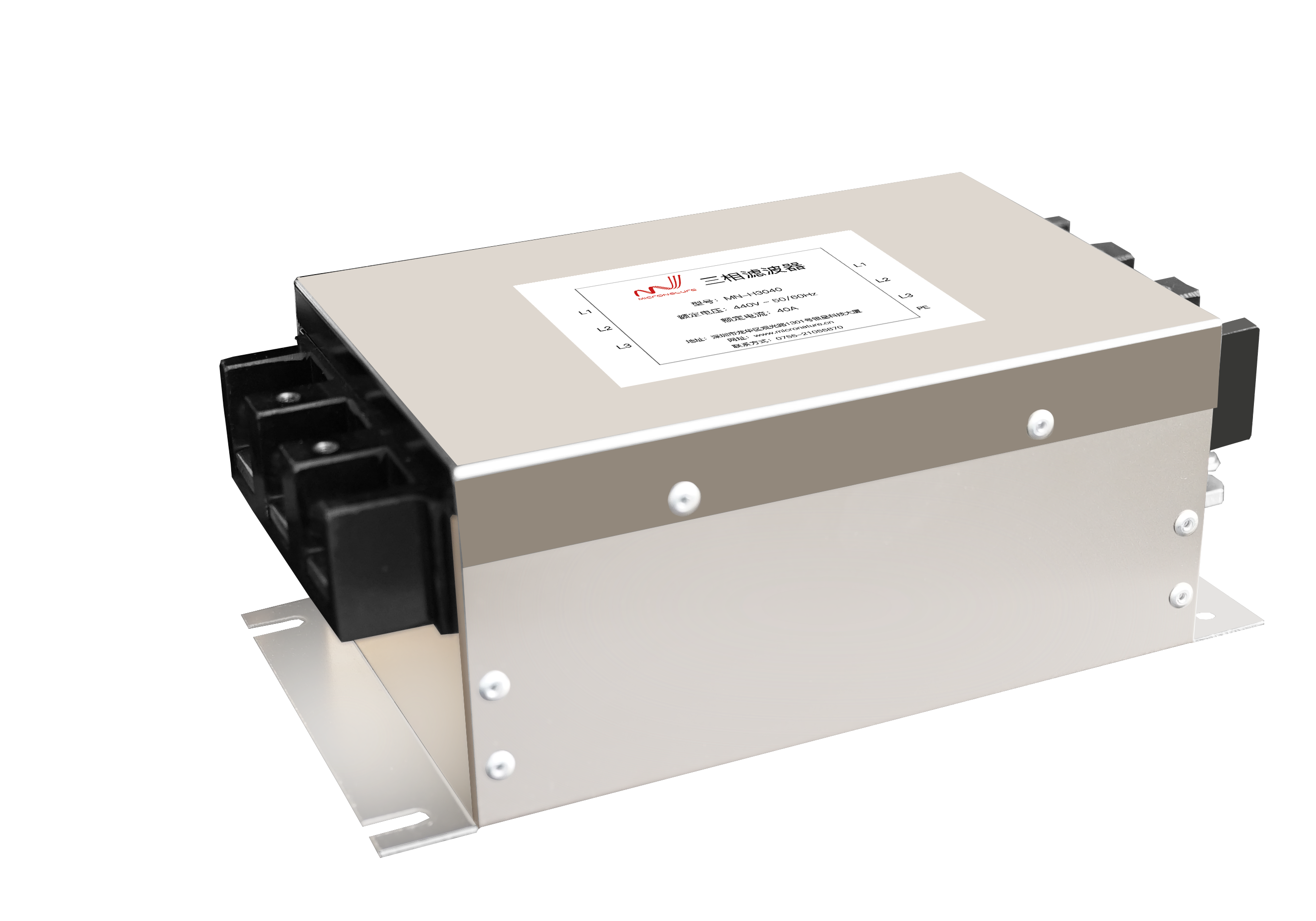

2 | Signal Isolator | Series connection in a circuit to isolate signal interference. |

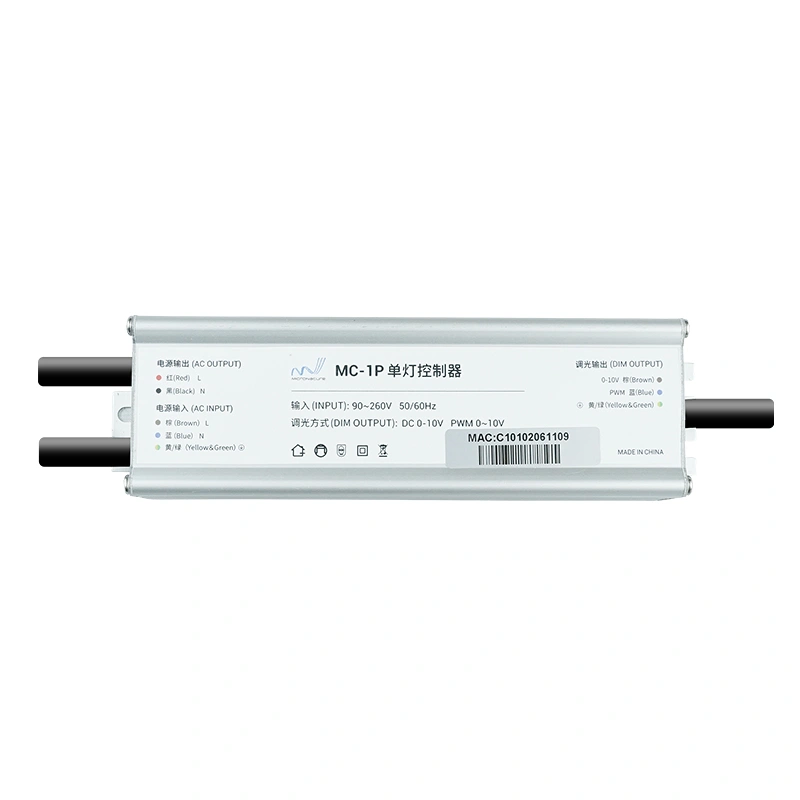

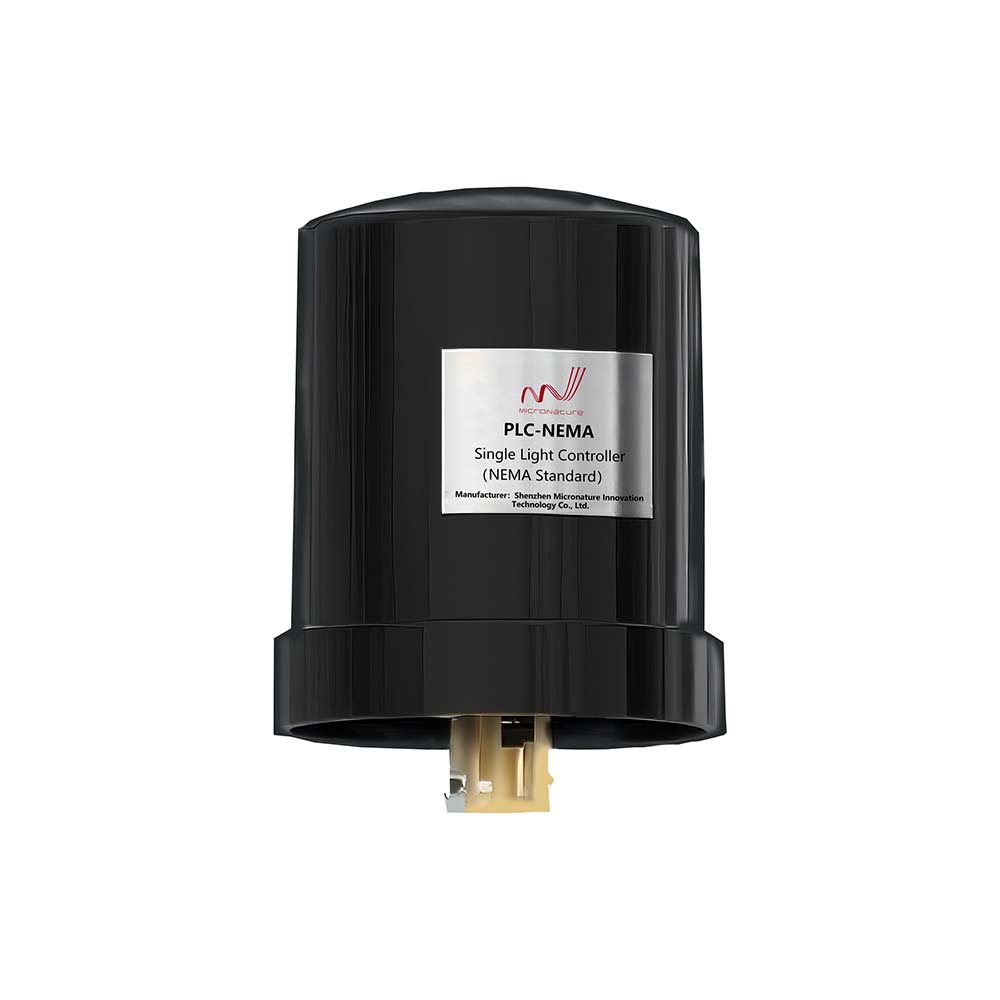

3 | Light Controller | Connection to 0-10V/PWM LED Driver for remote control/metering. |
4 | Smart Power Supply | Connect to lamp, integrate light controller and power supply functions. |

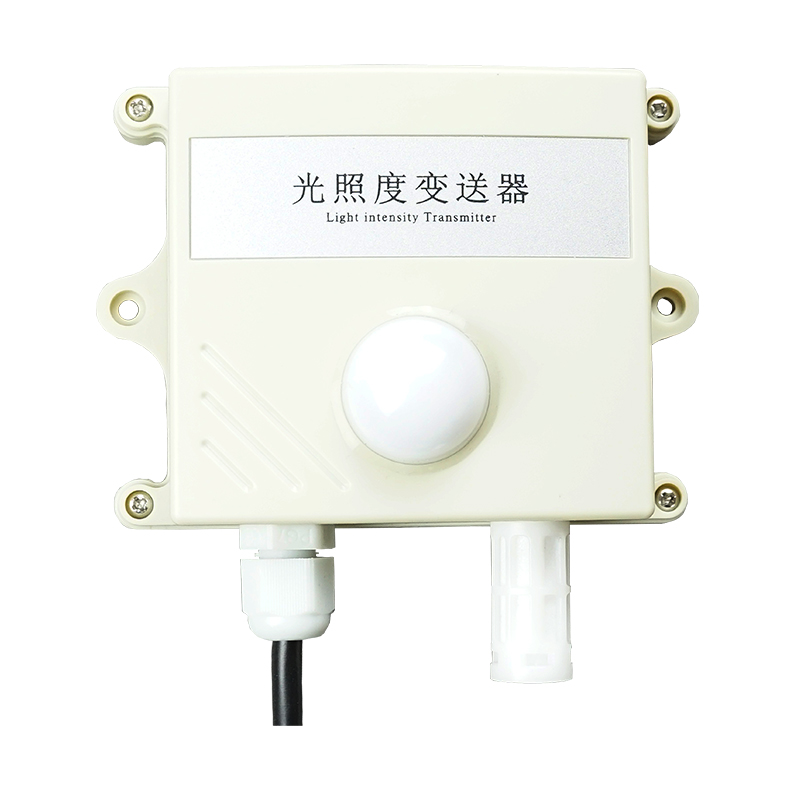

5 | Light Sensor | Detecting ambient light level, linkage control the lights. |

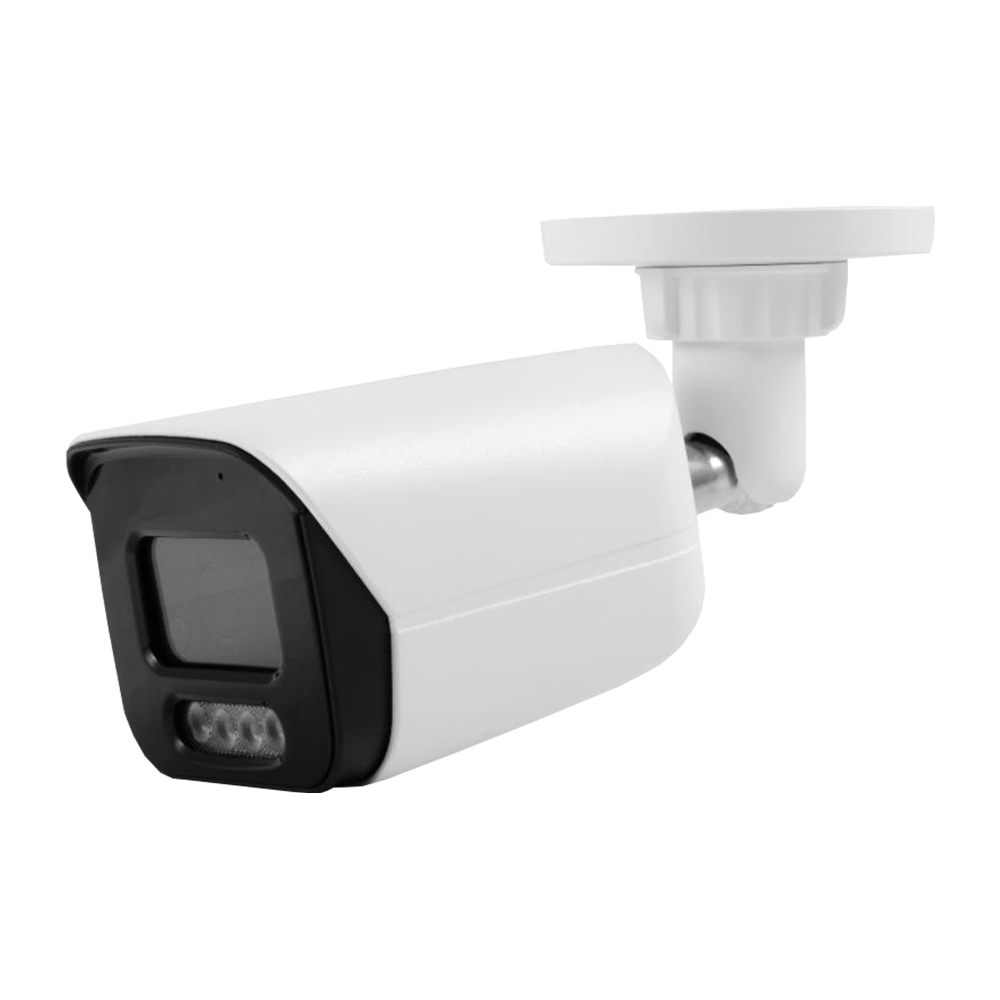

6 | AI Vision Sensor | Recognise people and cars, linkage control the lights. |
Network: 4G / EthernetLoad Capacity: 499
Electrical Parameter: Single-phrase/3-phrase
Rated Voltage: 3*220V/380V
Rated Current: 3*1.5A
Electrical Parameter: Single-phrase/3-phrase
Rated Voltage: 3*220V/380V
Rated Current: 3*1.5A
Type: Isolation from noise interference.
Electrical Parameter: 3-phrase
Rated Current: 40A
Electrical Parameter: 3-phrase
Rated Current: 40A
Operating Voltage: 90 - 264 VAC
Output Current: 0-8A±2%
Maximum Load Power: 800W
Waterproof Grade: IP66
Operating Voltage: 85~305VAC
Output Current: 0~5A ±5%
Maximum Load Power: 500W
Communication: Power Line Communication
Output Current: 0~5A ±5%
Maximum Load Power: 500W
Communication: Power Line Communication

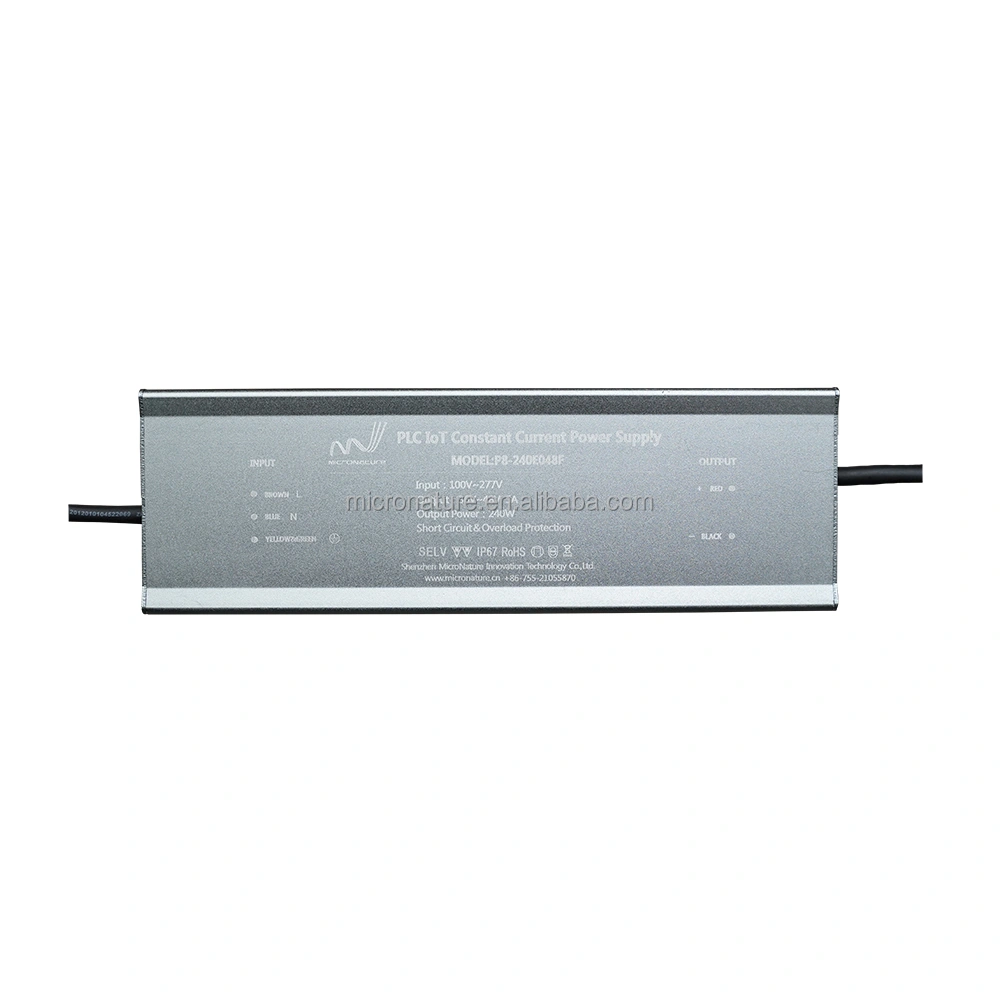

Type: Constant Current Power Supply
IP Rate: IP66
Input Voltage: 100~277V
Output Power: 30 - 240W
Output Power: 30 - 240W
Type: Detection of environment
illuminationInput: 10~30VDC
Measuring Range: 0~200K Lux
Type: Human-vehicle recognition
Detection Angle: 60°
Detection Distance: 20-100 m
No wifi/4G/ethernet required.
Detection Distance: 20-100 m
No wifi/4G/ethernet required.

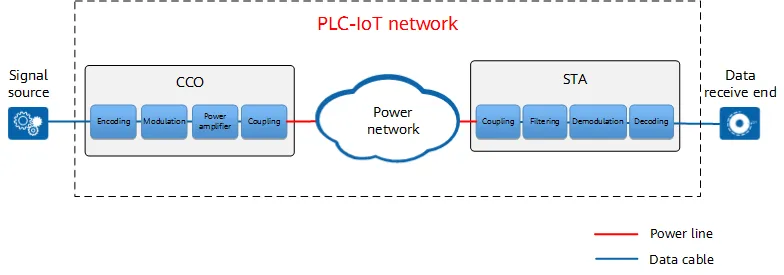

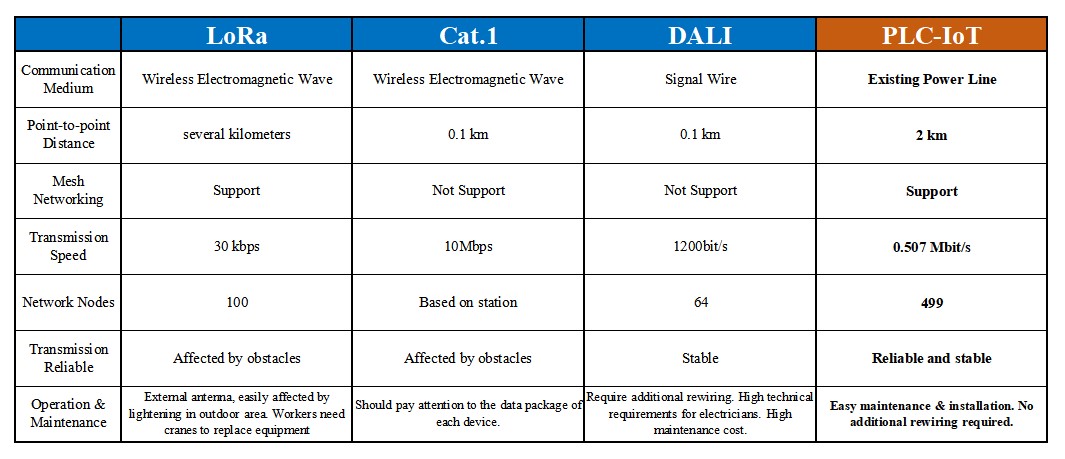

What Is PLC-IoT?
PLC-IoT is an innovative practice of applying PLC in IoT scenarios. Based on HPLC/IEEE 1901.1, PLC-IoT is a mid- band PLC technology oriented to IoT scenarios. It resolves problems such as signal attenuation and interference on power lines. In the meantime, it implements IP-based communication.
* PLC-IoT operates in the frequency band ranging from 0.7 MHz to 12 MHz, featuring low and stable noise and good channel quality.
* PLC-IoT uses the orthogonal frequency division multiplexing (OFDM) technology, which has high frequency band utilization and strong anti-interference capability. By modulating digital signals in high-frequency carriers, PLC-IoT transmits data at a high speed across a long distance over power lines.
* PLC-IoT delivers an application-layer communication rate in the range from 100 kbit/s to 2 Mbit/s and can extend the transmission distance to several kilometers through multi-level networking. With IPv6, abundant IoT protocols can run over power lines, enabling intelligent end devices and implementing full connection of devices.
PLC reuses power lines to transmit data, enabling connections to IoT devices without the need to deploy dedicated lines. It does not have the problem of severe impact from surrounding environments (such as poor signals) encountered by wireless communication technologies or problems of severe impact from line characteristics and poor openness and interoperability encountered by industrial field bus technologies.
COMPANY PROFILE
FAQ
Q1: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 5 years and is designed to withstand heavy use in industrial environments.
Q2: What if I don't understand how HPLC IoT works?
A: We provide free online technology training and free project proposal. If there's any smart lighting projects, feel free to contact us:
Tel:+86 13902945370
Web:www.micronature.cn
Q3: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE, RoHS, LVD.
A: Our product has an expected lifespan of 5 years and is designed to withstand heavy use in industrial environments.
Q2: What if I don't understand how HPLC IoT works?
A: We provide free online technology training and free project proposal. If there's any smart lighting projects, feel free to contact us:
Tel:+86 13902945370
Web:www.micronature.cn
Q3: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE, RoHS, LVD.
