Model No: MN-1PN

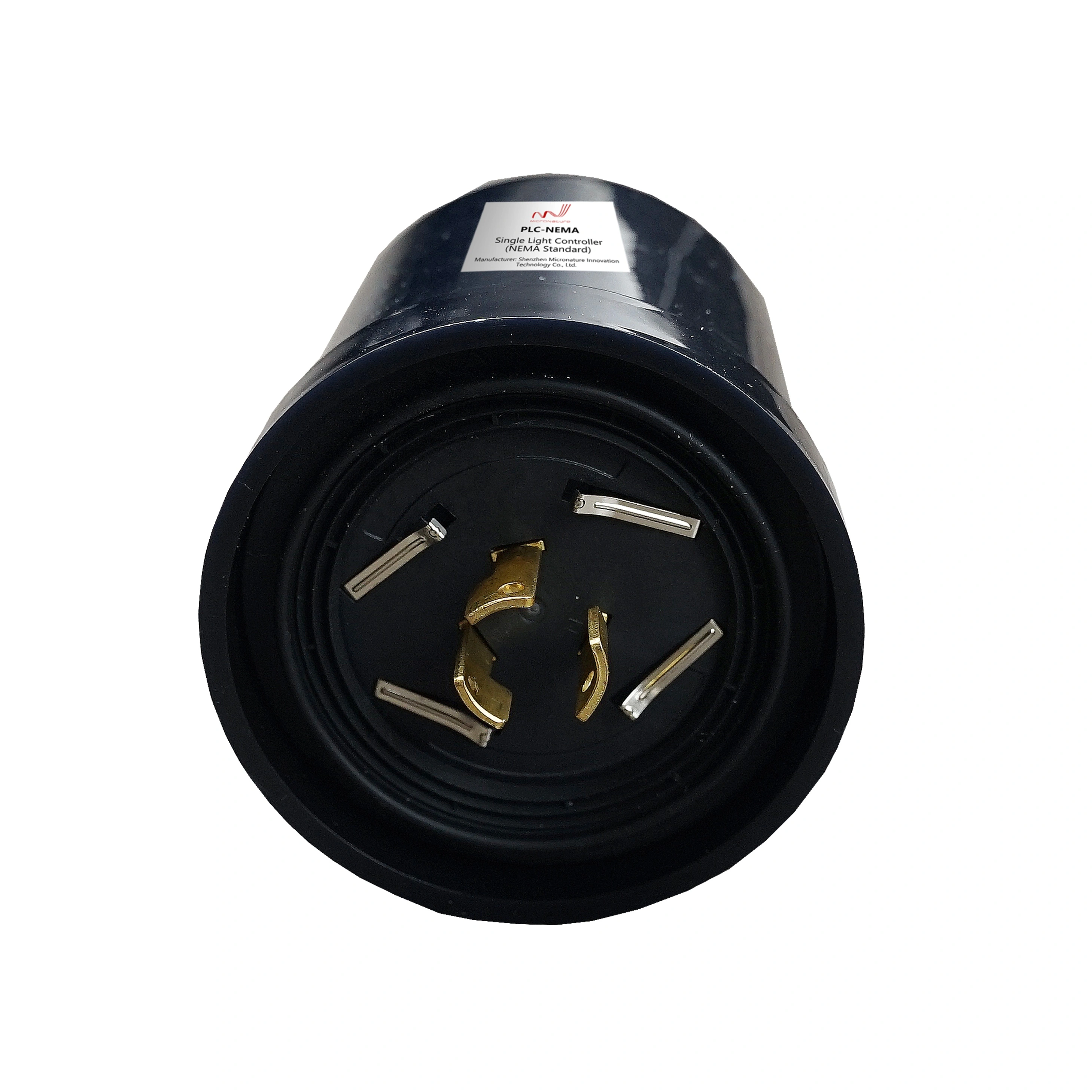

UL773/ANSI C136.10 International Standard 16km Distance NEMA Dimmer Wired PLC Wireless Cat.1 Street Lighting Controller

minimum order :

2 pieces

Stock Time :

7Day

Quantity :

add to cart

Contact Now

Place of Origin:Shenzhen
Brand Name:MicroNature
Model Number:MN-1PN
Application:Road/Street Smart Lighting, IoT
Color Temperature(CCT):5000K (Daylight)
IP Rating:ip66
Lamp Body Material:Aluminum
Input Voltage(V):AC 85-305V/DC 70-400V
Warranty(Year):5-Year
Working Temperature(℃):-40 - 85
Power Supply:AC/DC
Support Dimmer:Yes
Lighting solutions service:Project Installation, Onsite metering
Product Weight（kg）:0.184
Control Mode:APP Control, Remote Control, Switch Control
Technology:Power Line Communication (PLC)
Dimming Mode:0-10V/PWM
Dimension:84*98 mm
Frequency:50-60Hz
Max Load Power Consumption:500W
Active Power:1W-500W ±5%
Power Factor:0.1PF-1PF ≤±2%
Peak Rate:0.507Mbit/s
Sensitivity:≤-80dbm

Product Information

Video Overview

PLC-NEMA Light Controller Operation Demonstration

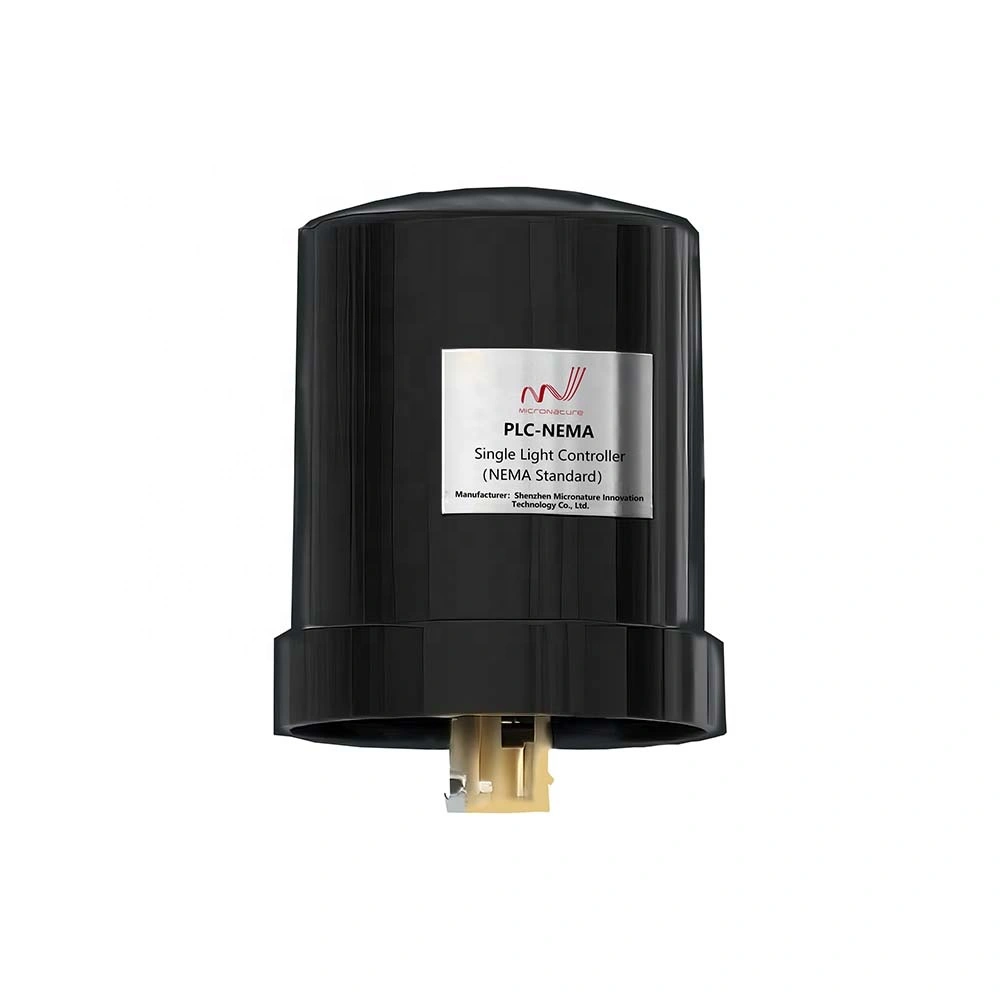

Image Overview

Product Features

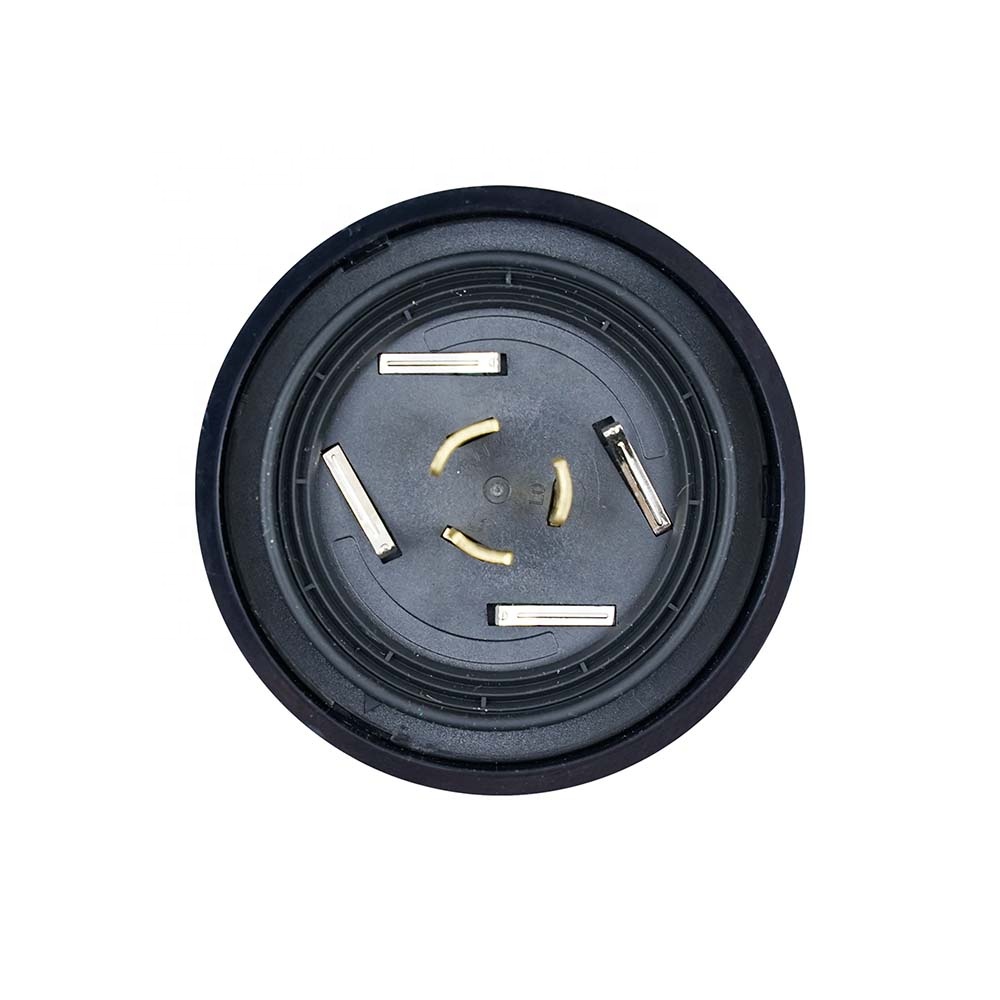

Standard Interface: Complies with international NEMA standard interfaces.

Remote Control: Supports remote switching, dimming (0-10V / PWM), configuration, and OTA upgrades.

Safety Protection: Features active protection functions, including fault warnings and reporting.

Precise Measurement: Collects data on current, voltage, power, energy consumption and temperature.

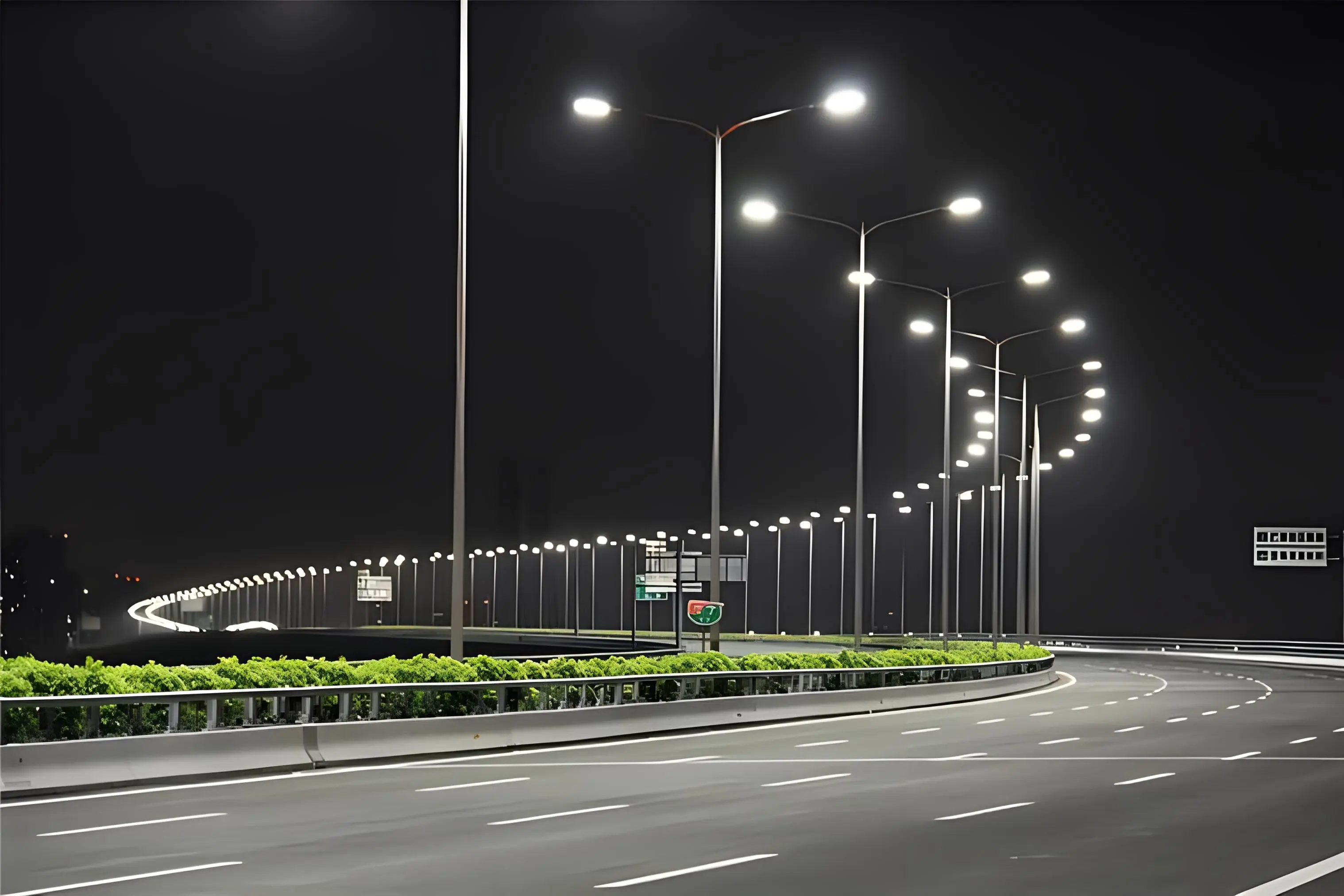

Application Scenarios: Ideal for municipal Road lighting, tunnel lighting, and industrial lighting.

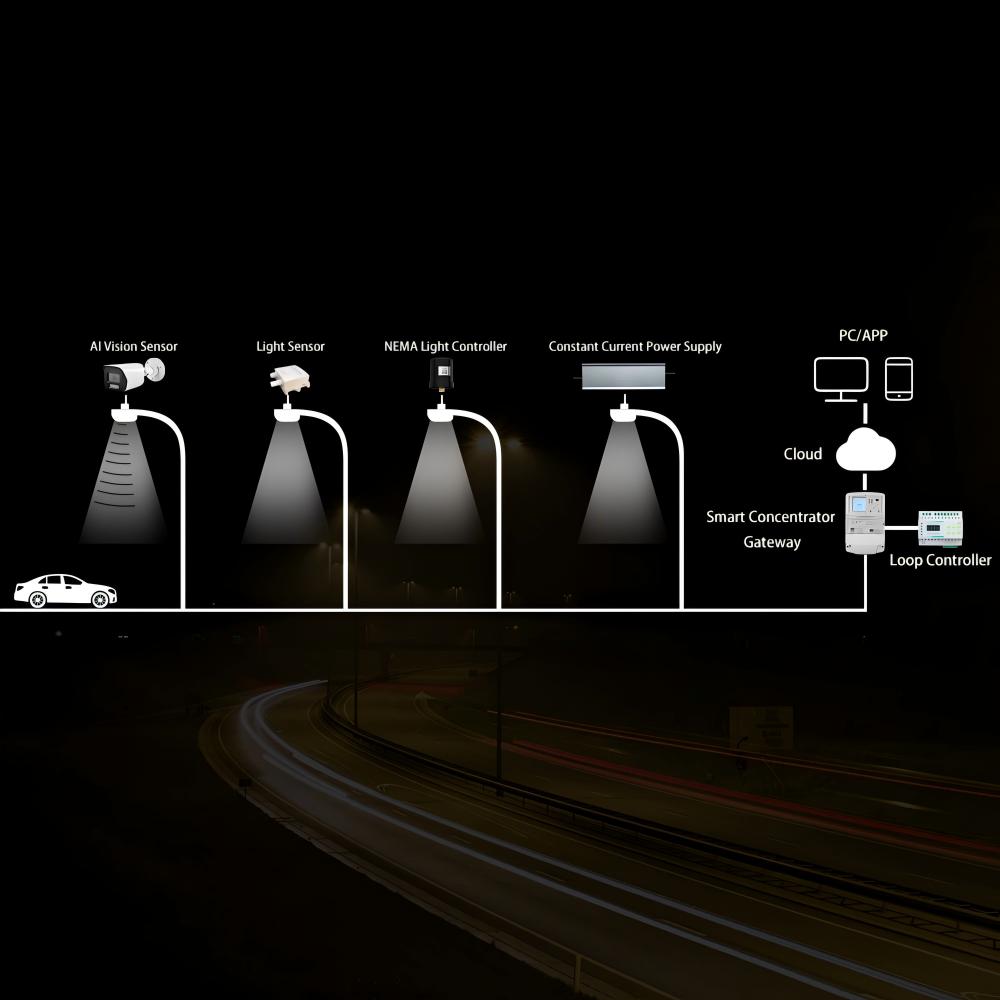

Topology

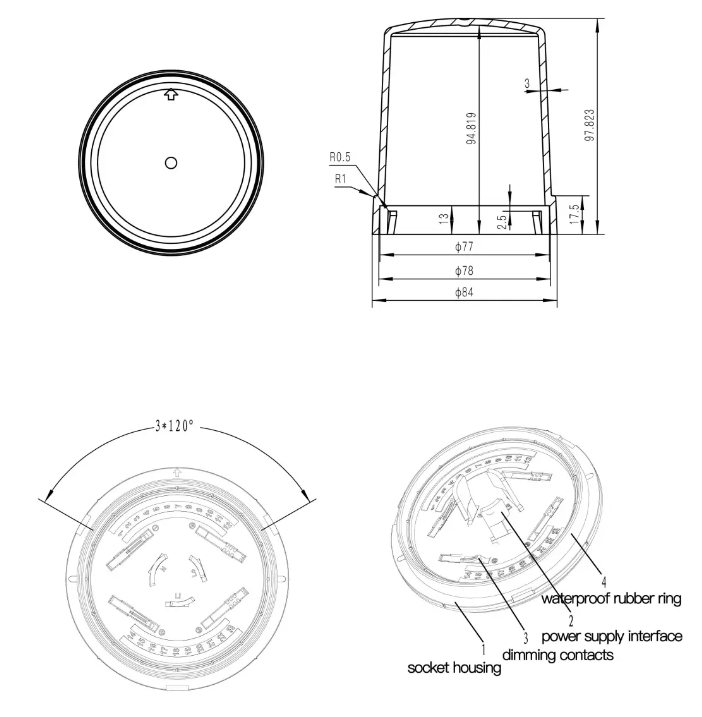

Dimension Drawing

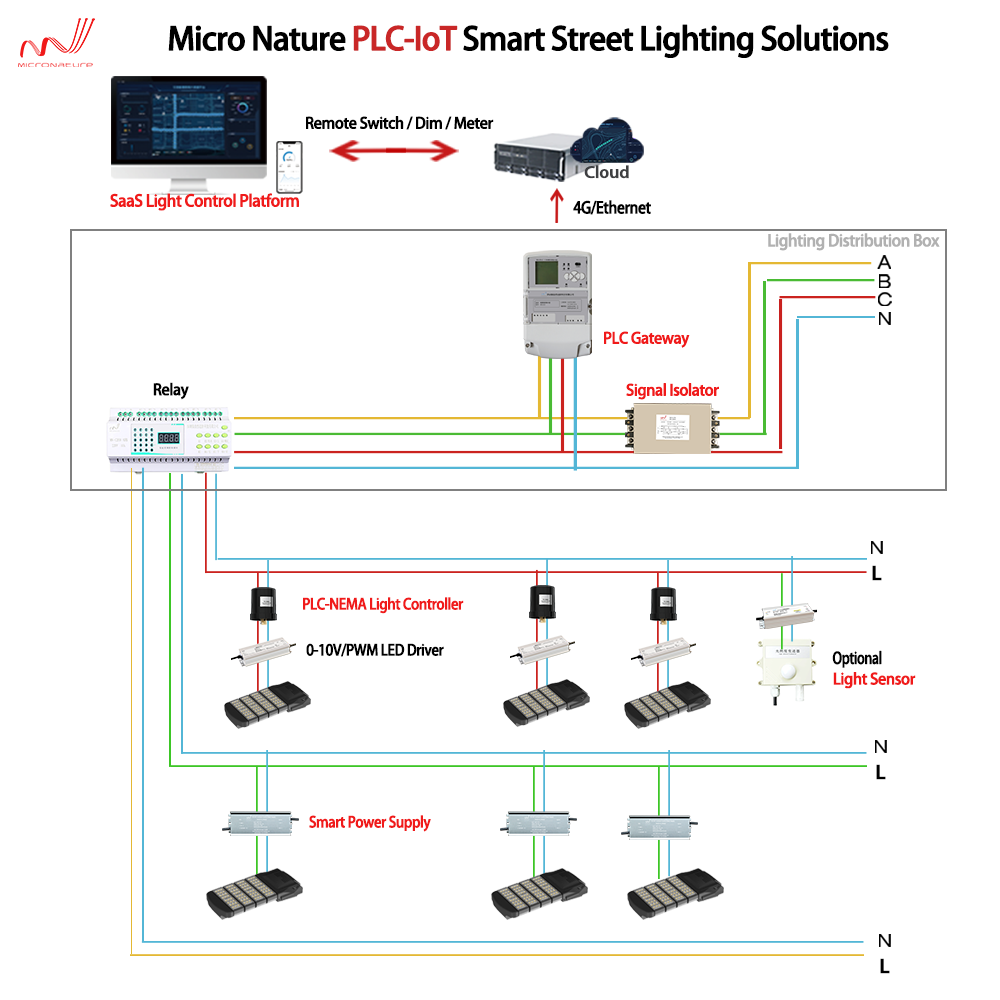

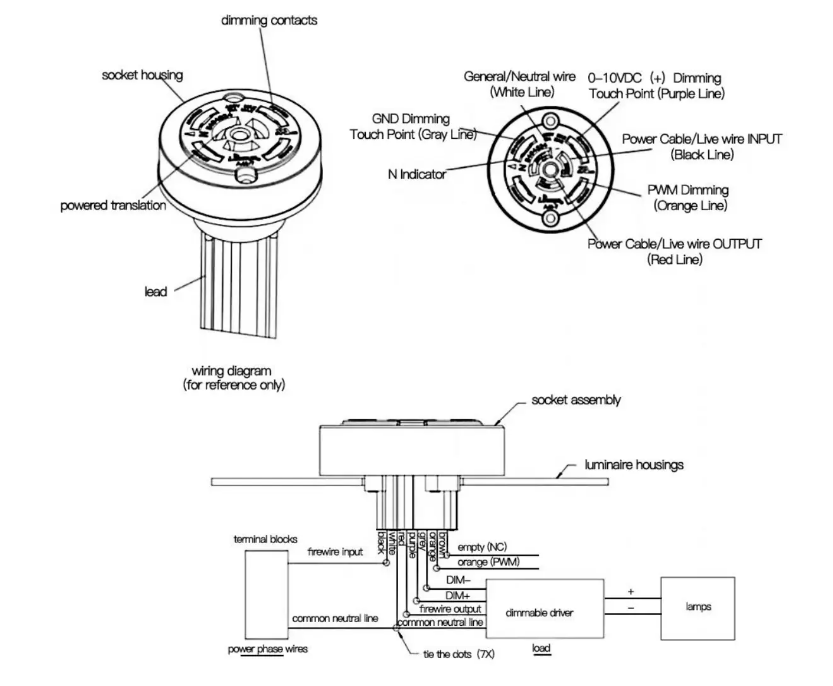

Wiring Diagram

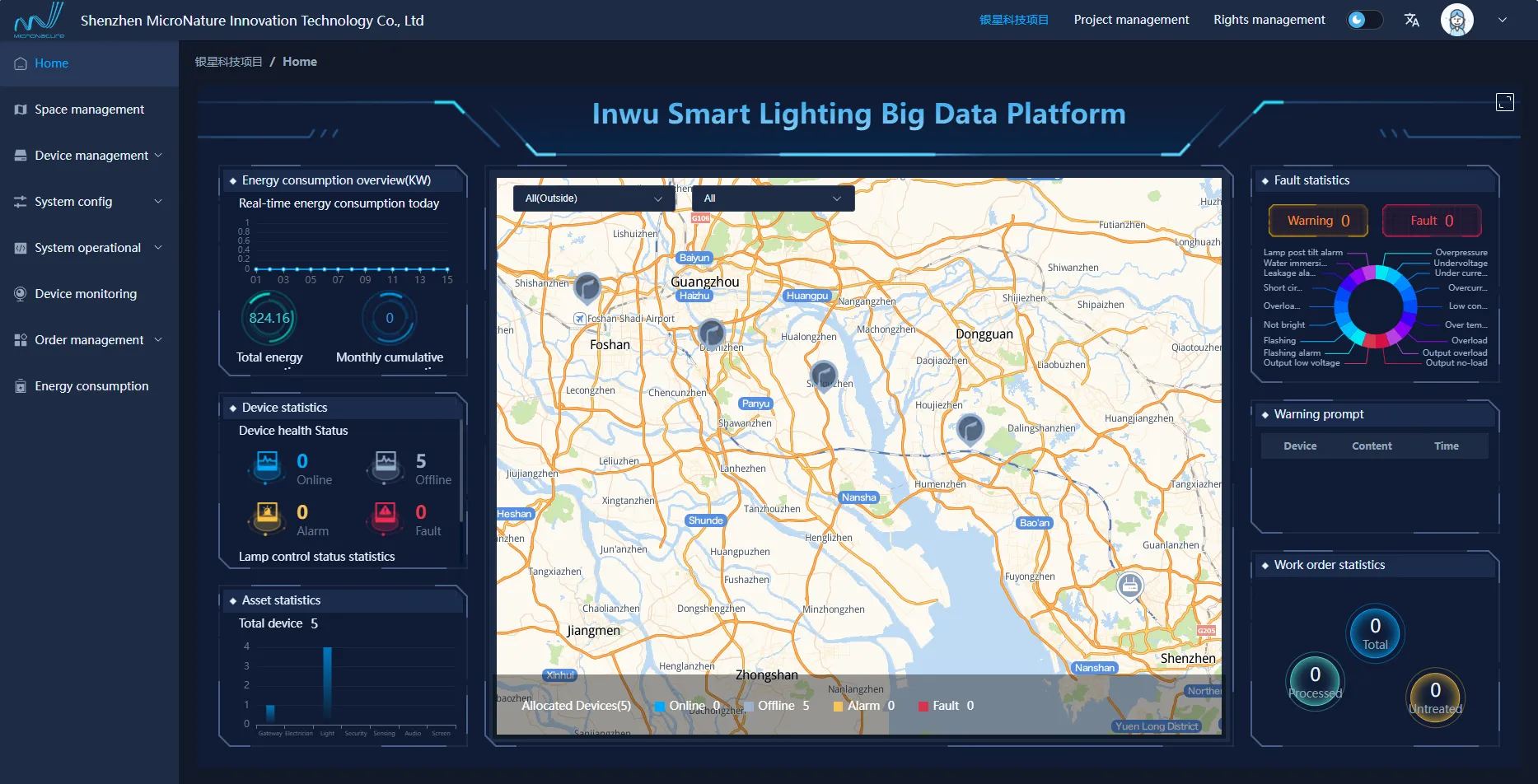

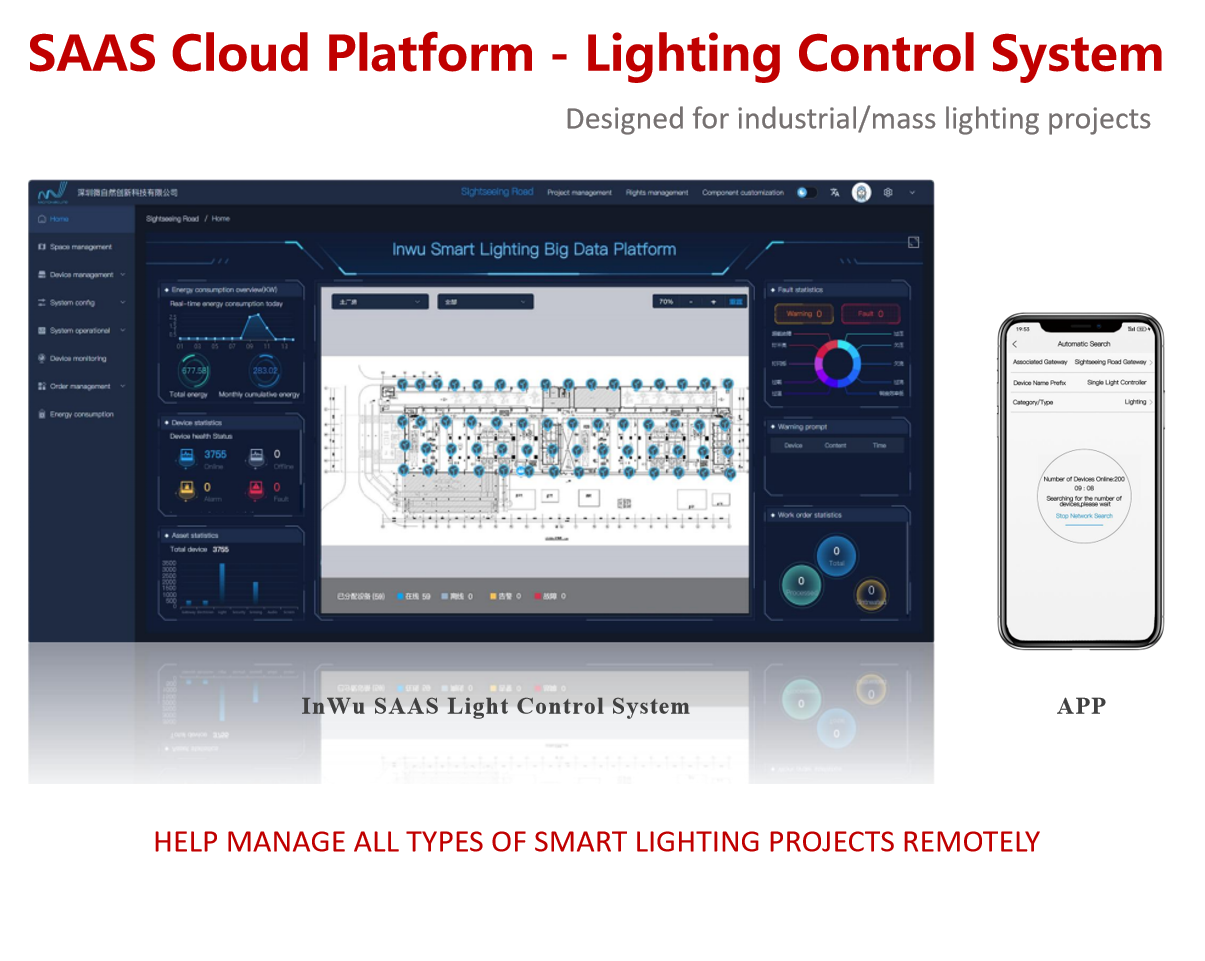

SAAS Cloud Platform

• Real-Time Energy Consumption

• Fault Statistics

• Devices Health Monitoring

• Warning Notifications

• Devices Asset Statistics

• Work Order Statistics

• Device Type Selection

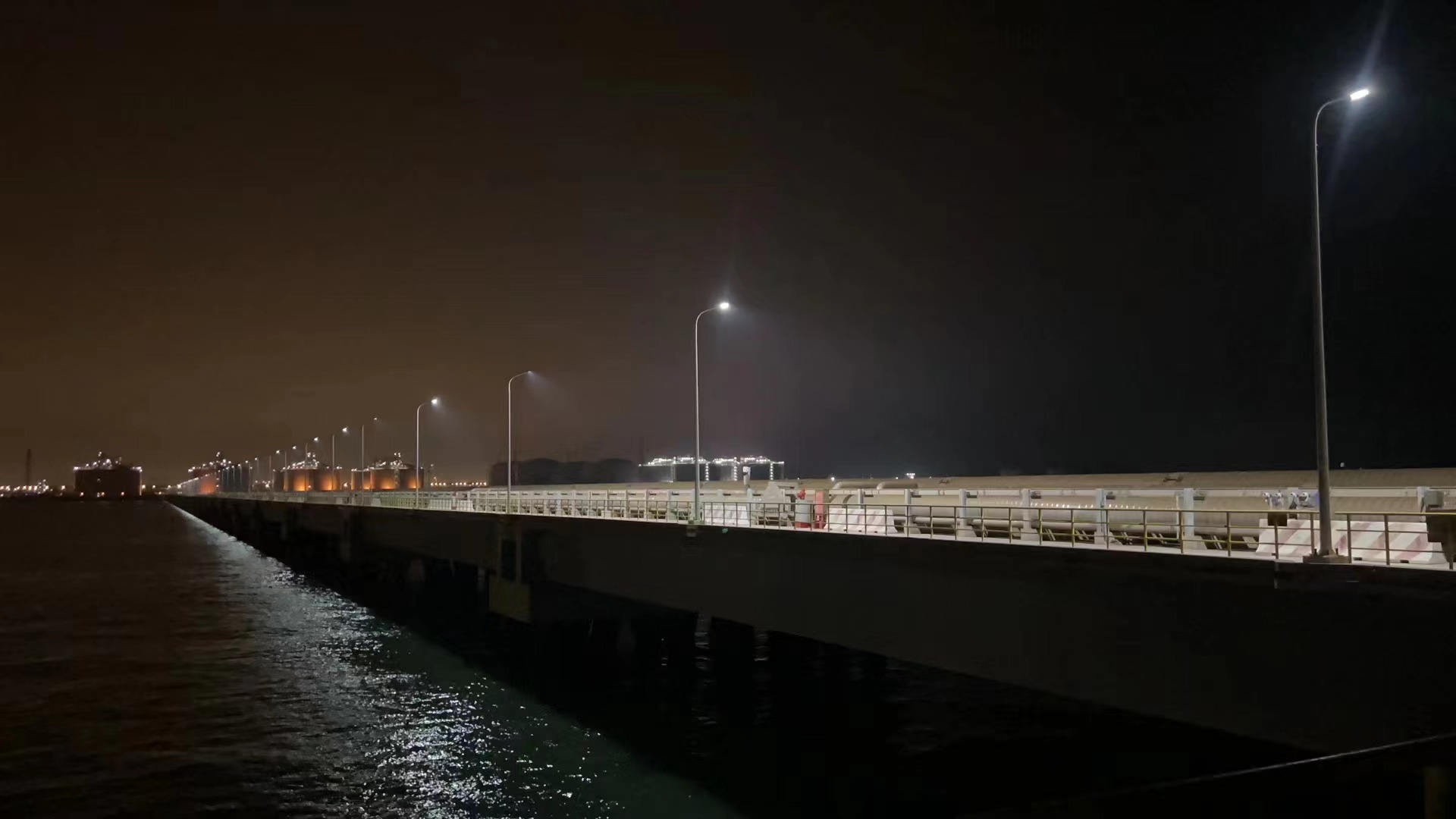

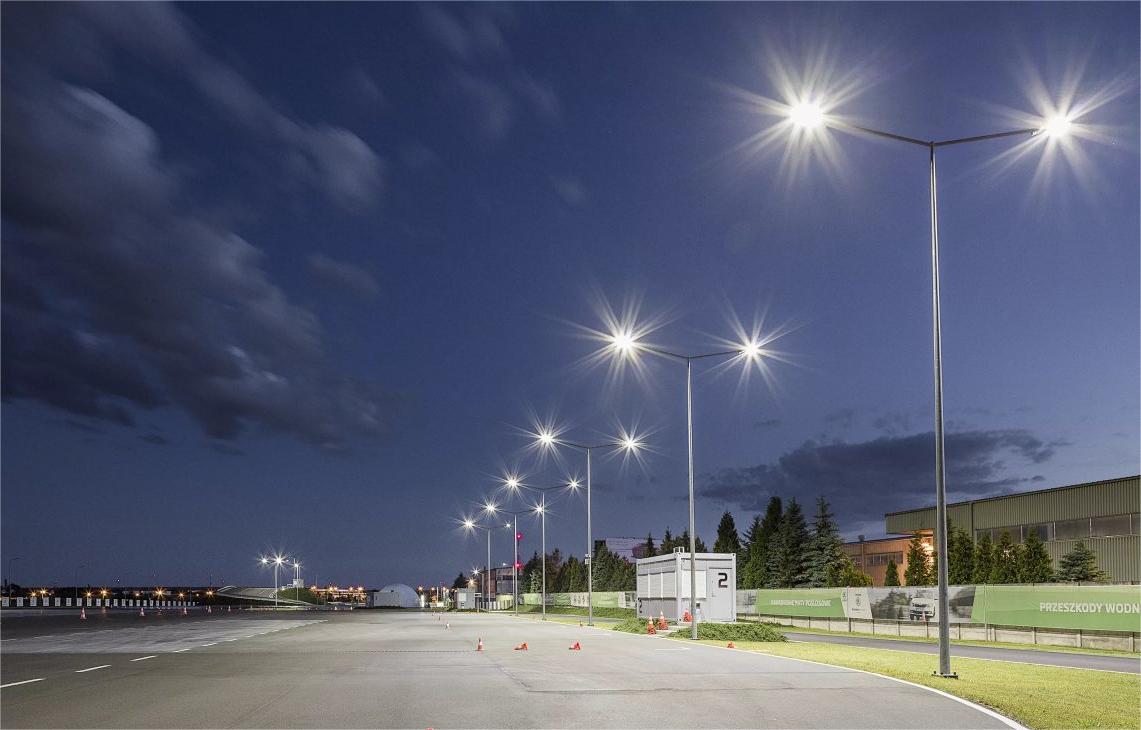

Application Scenarios

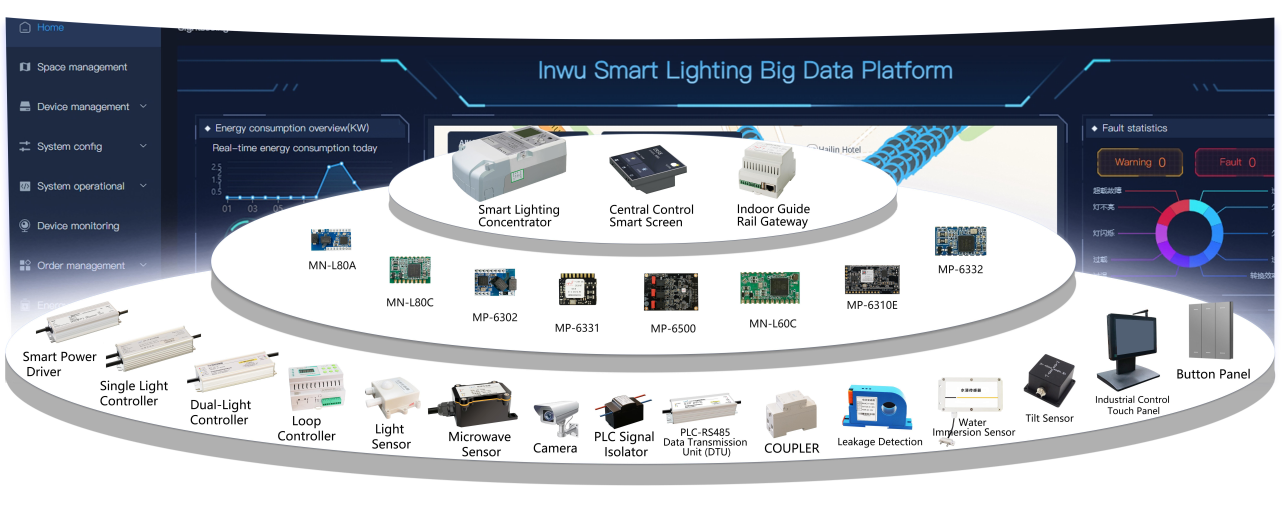

Supporting Products

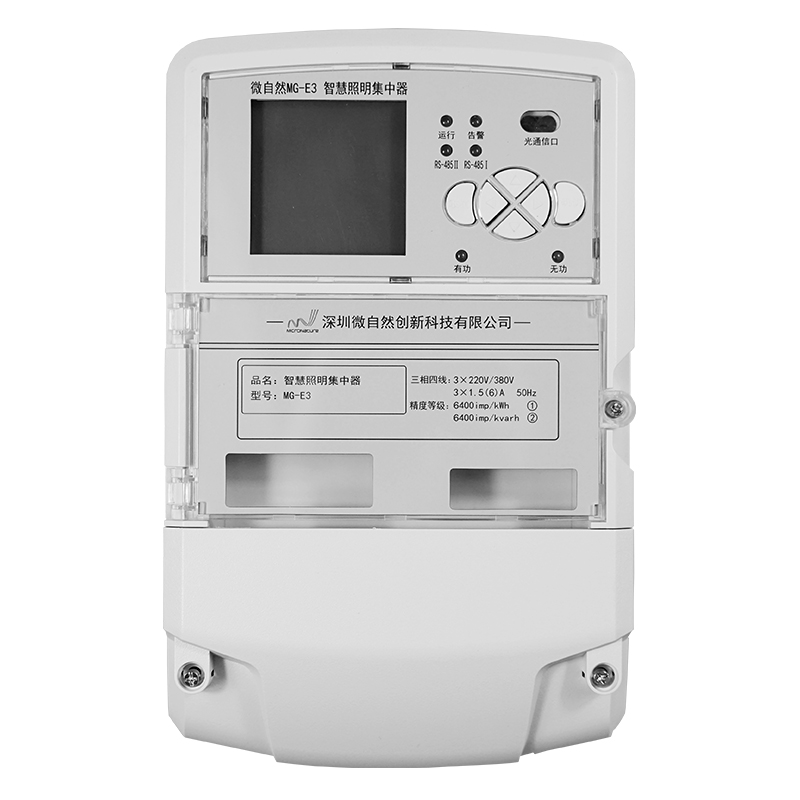

Smart Concentrator Gateway

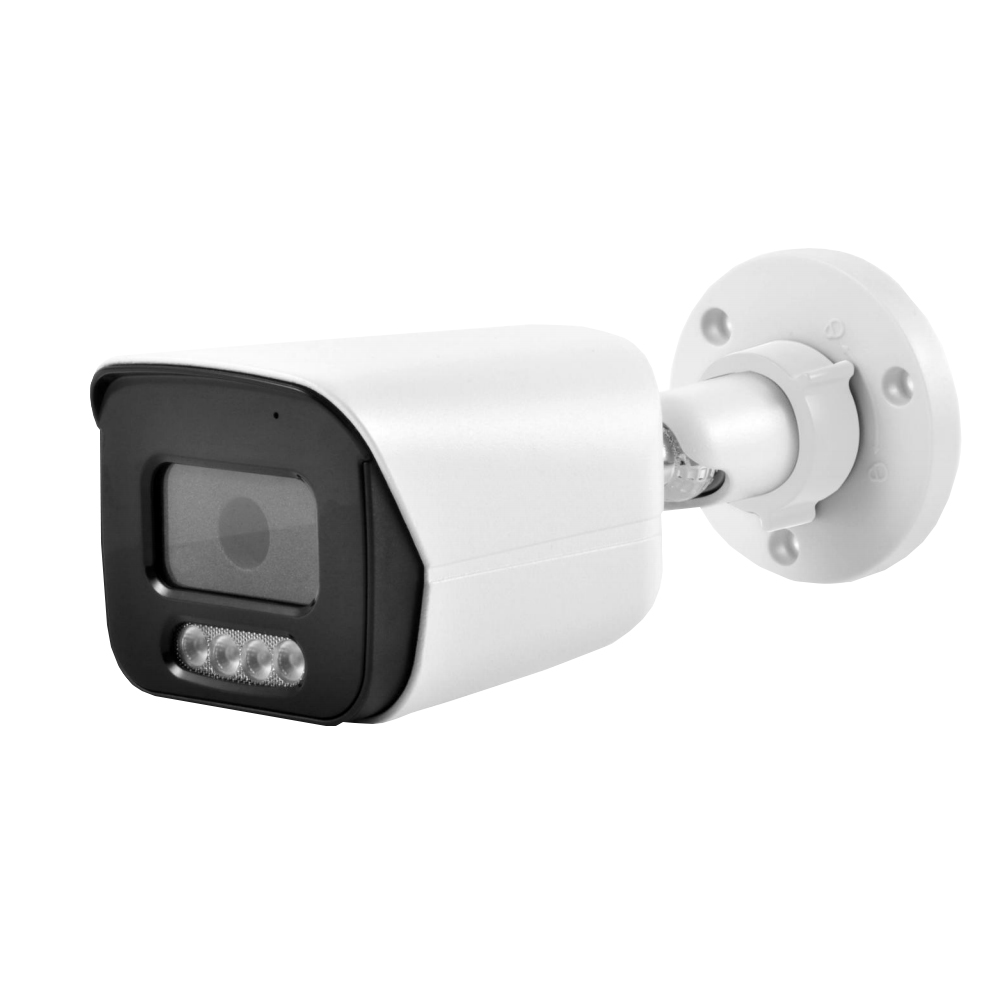

AI Vision Sensor

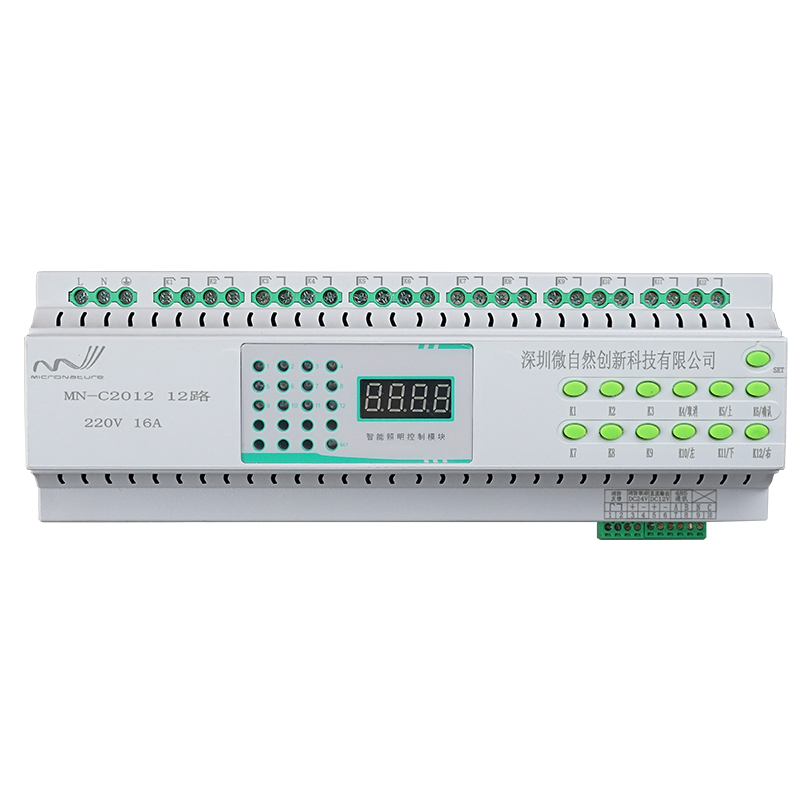

Loop Controller

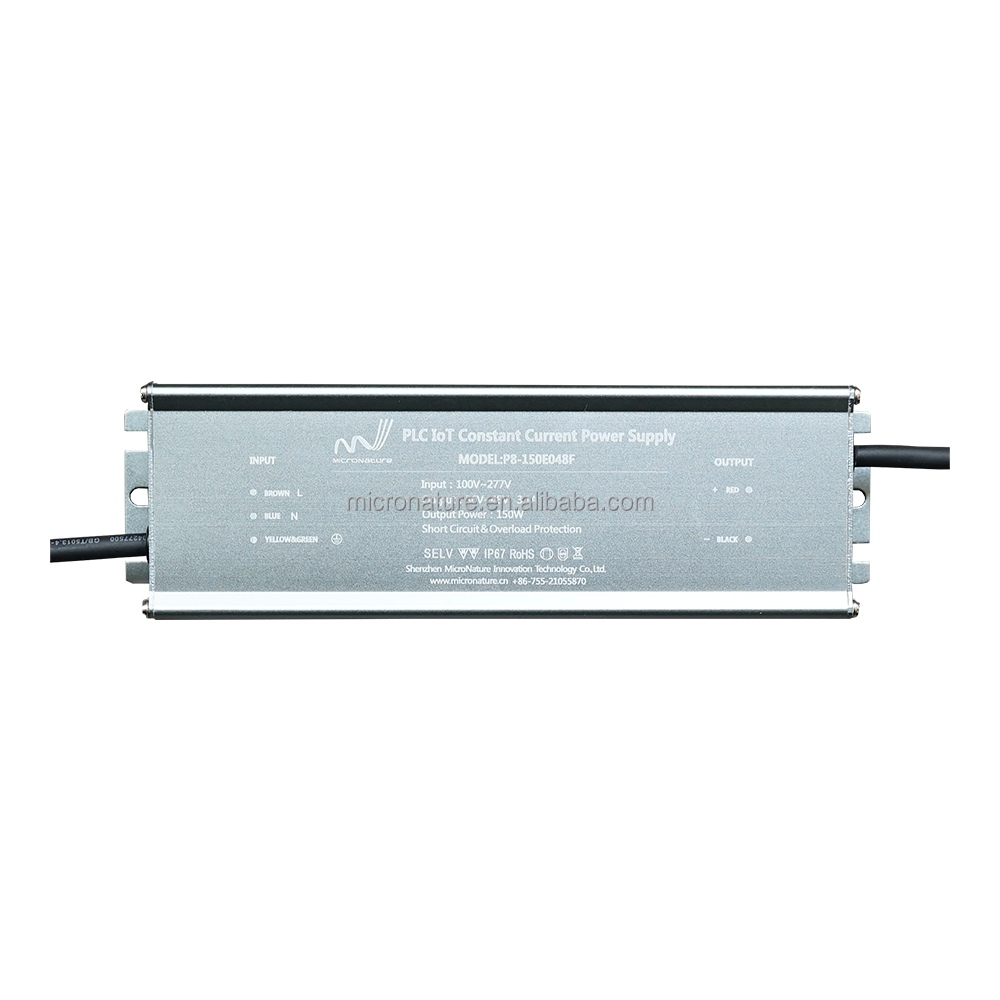

Constant Current Power Supply

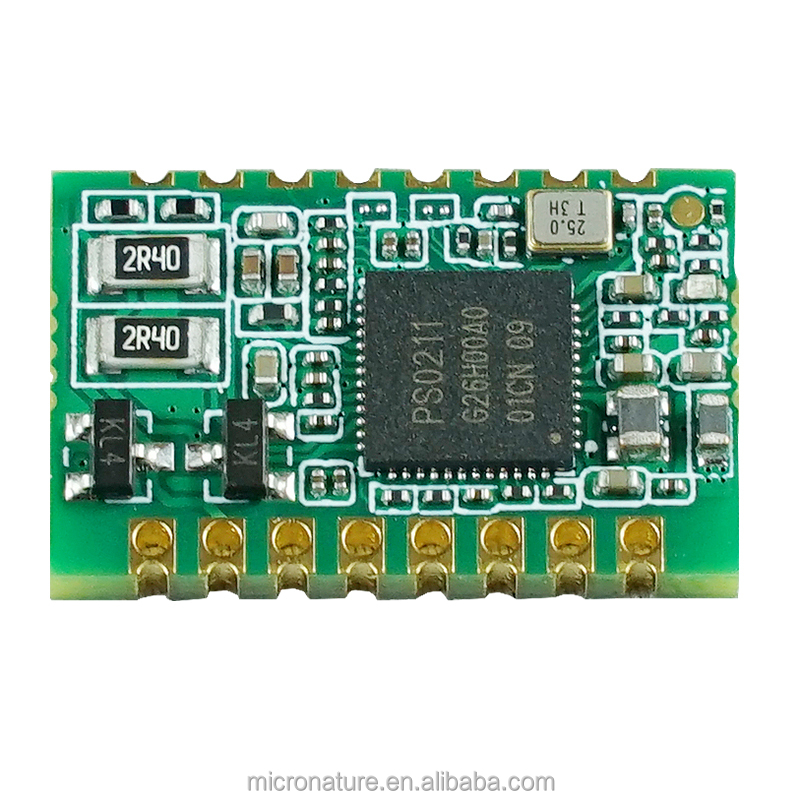

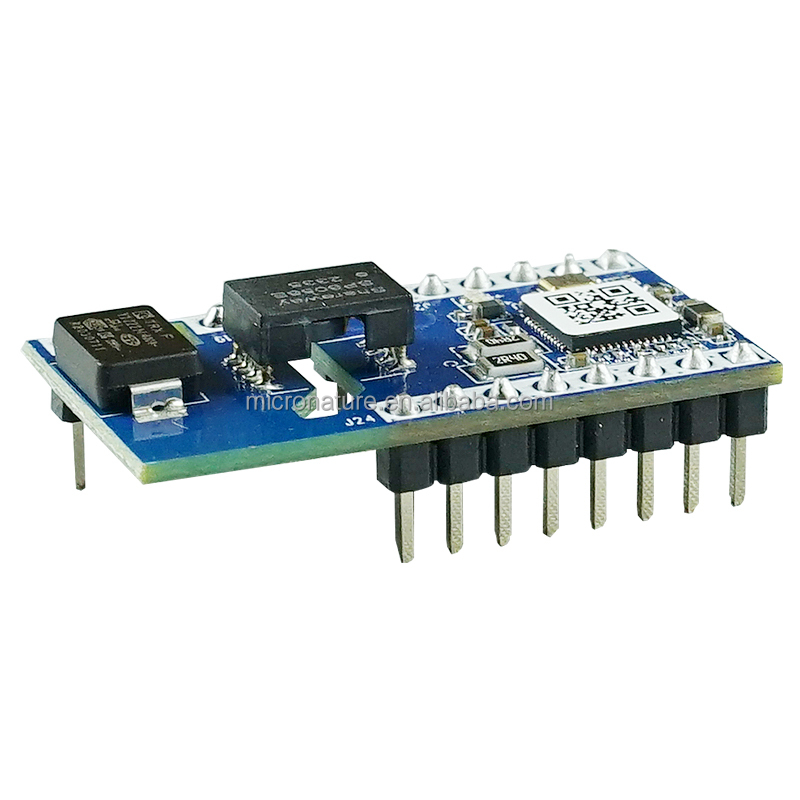

PLC MN-L80C Module

PLC MN-L80A Module

Company Profile

About Company

Leveraging advanced High-speed Power Line Carrier Communication (HPLC) technology and an open SAAS platform, Shenzhen MicroNature Innovation Technology Co., Ltd. delivers innovative digitization solutions for large-scale industrial lighting projects. Our expertise spans diverse environments, including highways, tunnels, factories, and airports.

“Quality is what we focus on” and with this motto, we tend to expand our horizons and capture the market by designing and building intelligent products and manufacture with sustainability in mind. Join us in illuminating the path toward a brighter tomorrow.

Our Advantages

Communication Distance	2 km point-to-point communication distance
Load Capacity	1 gateway controls 499 devices
Stability	99.99% stable communication
Convenience	No rewiring required

Cooperation Mode

• Private cloud development

• Language customization

• API, UI, Modbus, MQTT integration

• Co-management of multiple projects

• Sub-account-privilege management

• Professional technological support and service
