IEEE 802.3bz/an Gigabit LAN Transformer Supplier with 90W PoE++ Support

The relentless demand for higher bandwidth and smarter power delivery has transformed network infrastructure design. At the heart of this evolution lies a critical, often overlooked component: the Gigabit LAN transformer. This article dives deep into the technical demands of IEEE 802.3bz/an compliance and 90W PoE++ support, exploring why selecting the right Gigabit LAN Transformer Manufacturer is a strategic engineering decision impacting performance, reliability, and cost.

Part 1: The Standards Revolution – 802.3bz & 802.3bt Explained

1.1 IEEE 802.3bz: Beyond Gigabit over Cat5e/6

• The Need: Eliminating the costly Cat6A/7 requirement for 2.5GBASE-T and 5GBASE-T deployment in existing buildings.

• Technical Achievement: Utilizes advanced DSP (Digital Signal Processing) and PAM-16 modulation to achieve 2.5G/5G speeds over 100m of Cat5e/Cat6.

• Transformer Impact: Demands significantly lower insertion loss (< -1.5dB @ 200MHz), tighter return loss (> 12dB), and superior longitudinal balance (> 40dB) compared to standard Gigabit transformers to preserve signal integrity in noisy RF environments.

1.2 IEEE 802.3bt (PoE++): Powering the Future

• Type 3 (60W) & Type 4 (90W): Unlocks power for high-draw devices:

  • PTZ security cameras with heaters/blowers

  • High-performance Wi-Fi 6E/7 access points

  • Thin clients & digital signage

  • Building automation controllers

  • Small cell 5G radios

• Power Delivery Complexity: Requires transformers capable of handling up to 1A per pair continuously without core saturation or excessive temperature rise.

• The Isolation Imperative: Maintains the critical 1500VAC/2250VDC safety barrier between PSE (Power Sourcing Equipment) and PD (Powered Device) circuits under high DC bias conditions.

Table: PoE Standards Evolution & Power Capabilities

Part 2: Why 90W PoE++ Gigabit LAN Transformers Are Engineering Marvels

2.1 Core Material Science

• Beyond Ferrite: High-flux density nanocrystalline or specialized amorphous alloys are increasingly used to minimize core losses under high DC bias and maintain inductance stability at elevated temperatures (up to 125°C ambient).

• Saturation Current (Isat): Must exceed 1.5A DC with minimal inductance drop (< 20%) – a critical parameter often poorly specified by generic Gigabit LAN Transformer Manufacturer sources.

2.2 Winding Design & Loss Minimization

• Litz Wire & Foil Windings: Reduce AC resistance (skin & proximity effects) at the higher frequencies relevant for 802.3bz (up to 200MHz fundamental).

• Interleaving & Layer Optimization: Minimizes inter-winding capacitance (C_IW) crucial for maintaining signal edge rates and reducing EMI.

• Precise Impedance Matching: Requires strict control over leakage inductance (L_LK) and winding capacitance to hit the 350µH common-mode choke impedance target across the operating frequency band.

2.3 Thermal Management by Design

• I²R Losses Dominate at 90W: Copper losses become the primary heat source. Optimized wire gauge, termination methods (e.g., thermal pads to PCB), and core material selection are vital.

• Simulation-Driven Design: Advanced FEA thermal modeling predicts hot spots and guides component placement/enclosure design for forced air convection if needed.

Figure 1: Transformer Loss Breakdown at 90W PoE++

• Copper (Winding) Losses: 65%

• Core Losses: 20%

• Termination/Contact Losses: 10%

• Radiated EMI Losses: 5%

Part 3: The Critical Role of the LAN Transformer in System Performance

3.1 Signal Integrity

• EMI/RFI Suppression: The common-mode choke within the transformer is the first line of defense against both incoming noise disrupting PHY sensitivity and outgoing noise causing system EMI test failures. Performance degrades rapidly if balance is compromised.

• Return Loss & Insertion Loss: Directly impacts BER (Bit Error Rate). Poorly designed transformers force PHYs to work harder (higher transmit power, more complex equalization), increasing system power consumption and heat.

3.2 PoE Reliability & Safety

• Dielectric Withstand: 1500VAC/1 minute minimum isolation test is baseline. Leading manufacturers test to 2250-3000VDC for margin.

• Partial Discharge (PD) Testing: Essential for long-term reliability (> 10 years) at high voltages, identifying microscopic insulation defects undetectable by standard hipot tests.

• DC Resistance (DCR) Matching: < 0.5% pair-to-pair matching ensures balanced current sharing across all 4 pairs in 90W PoE++, preventing localized overheating.

3.3 Miniaturization vs. Performance Trade-offs

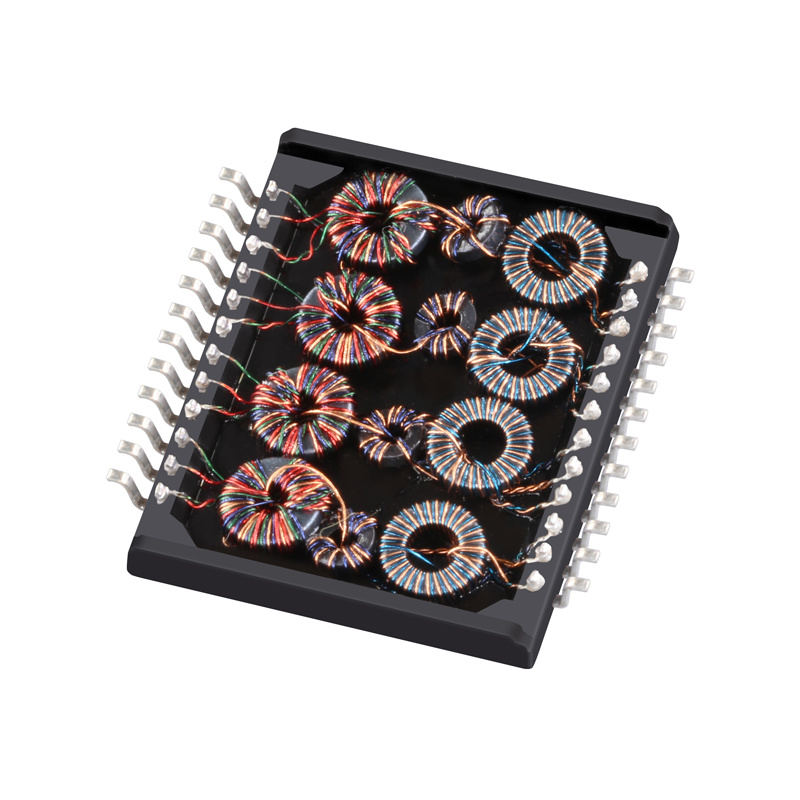

• The Surface Mount (SMT) Challenge: Integrating full 90W PoE++ and 802.3bz performance into sub-15mm x 15mm SMT packages demands revolutionary design and advanced automated assembly by the Gigabit LAN Transformer Manufacturer.

• Chip-Scale LAN (CSLAN): The cutting edge, embedding magnetics directly into the connector or PCB substrate. Requires co-design with connector and PCB laminate suppliers.

Part 4: Selecting Your 90W PoE++ / 802.3bz Gigabit LAN Transformer Supplier: Beyond the Datasheet

4.1 Auditing the "Invisible" Capabilities

• Automated 100% Electrical Testing: Does the Gigabit LAN Transformer Manufacturer test every unit for key parameters (DCR, L_LK, C_IW, Isat, hipot, balance) under simulated PoE load? Batch sampling is insufficient for mission-critical networks.

• Material Traceability & Lot Control: Essential for failure analysis and ensuring long-term consistency. Demand full documentation.

• In-House Design & Simulation: Avoid "catalog engineers." True partners possess deep magnetics design expertise using tools like ANSYS Maxwell or Simcenter MAGNET.

4.2 Manufacturing Excellence: The Foundation of Quality

• Automated Winding & Assembly: Eliminates human error variability, ensures repeatable inter-winding geometry critical for balance and C_IW.

• Vacuum Impregnation & Advanced Encapsulation: Prevents moisture ingress and protects windings from thermal/mechanical stress, vital for harsh industrial environments.

• Robust Termination Technology: Solderability, lead coplanarity, and resistance to thermal cycling fatigue are paramount for SMT yield and field reliability.

4.3 The Partnership Dimension

• Early Design Collaboration: Can the supplier engage during your schematic/PCB layout phase to optimize placement, grounding, and thermal management?

• Scalability & Supply Chain Resilience: Do they have redundant production lines and raw material sourcing to guarantee supply during shortages?

• Regulatory Pre-Certification: Do transformers come with documented compliance (UL, VDE, TUV, IEC) relevant to your target markets (IT, industrial, medical)?

Part 5: JIAXUN: Your Expert Partner for High-Performance LAN Magnetics

Meeting the stringent demands of IEEE 802.3bz/an and 90W PoE++ requires more than just components; it demands a partner with deep domain expertise, vertically integrated manufacturing, and unwavering commitment to quality. JIAXUN stands as a leading Gigabit LAN Transformer Manufacturer built on 22 years of innovation in communication network magnetic solutions.

Why Partner with JIAXUN?

1. Engineered for Performance & Reliability:

   • Full-Spectrum PoE Support: Our transformers are rigorously designed and tested for 802.3af/at (PoE/PoE+) and 802.3bt Type 3 (60W) / Type 4 (90W PoE++) applications, ensuring robust power delivery and signal integrity.

   • Optimized for 802.3bz/2.5G/5G BASE-T: We achieve industry-leading insertion loss, return loss, and longitudinal balance performance critical for reliable 2.5G/5G operation over existing Cat5e/Cat6 cabling.

   • Superior Isolation & Safety: Components undergo stringent 1500VAC/2250VDC hipot testing and Partial Discharge (PD) screening, exceeding standard requirements for long-term safety and reliability.

   • Advanced Thermal Management: Proprietary core materials and winding techniques minimize losses and temperature rise, even under continuous 90W load conditions.

2. Manufacturing Excellence:

   • End-to-End Vertical Integration: JIAXUN controls core material processing, precision winding, automated assembly, and 100% electrical testing in-house, guaranteeing traceability and consistency.

   • Cutting-Edge Automation: State-of-the-art SMT lines and robotic assembly ensure micron-level precision and eliminate human error variability.

   • Rigorous Quality Systems: Certified to IATF 16949 (Automotive) and ISO 9001 standards, underpinned by advanced SPC (Statistical Process Control) monitoring throughout production.

3. Comprehensive Solutions Portfolio:

   • Bandwidth Coverage: Expertise spanning 10M/100M, Gigabit (10/100/1000BASE-T), 2.5GBASE-T, 5GBASE-T, and 10GBASE-T magnetics.

   • Form Factors: Industry-standard RJ45 integrated connectors (Single/dual/quad port), discrete SMT transformers (including Chip-Scale LAN/ChipLAN designs), and custom magnetic modules.

   • Application Focus: Proven solutions deployed in enterprise/industrial switches, routers, gateways, IP cameras (PoE++), Wi-Fi 6/6E/7 access points, set-top boxes, and 5G infrastructure.

4. Collaborative Global Partner:

   • Design-In Support: Our engineering team partners with customers early in development for magnetics optimization, thermal simulation, and layout guidance.

   • Scalable, Resilient Supply Chain: Multiple manufacturing facilities and robust material sourcing strategies ensure dependable, high-volume delivery.

   • Global Compliance: Products pre-certified to major international safety and EMC standards (UL, VDE, TUV, KC, CCC, REACH, RoHS).

Conclusion: Powering Connectivity with Precision

The convergence of multi-gigabit speeds and high-power PoE++ represents the cutting edge of wired networking. The Gigabit LAN transformer is not a commodity but a sophisticated electro-magnetic component whose performance directly dictates system reliability, efficiency, and compliance. Choosing a Gigabit LAN Transformer Manufacturer like JIAXUN, with proven expertise in IEEE 802.3bz/an and 90W PoE++ design, advanced materials science, and world-class manufacturing rigor, is an investment in the fundamental stability and future-readiness of your network products. In an era demanding ever more bandwidth and power, the right transformer partner provides the silent, robust foundation upon which successful connectivity is built.
