How to Choose the Best SFP Cage for Your Network Setup: A Complete Buying Guide

When it comes to building a robust and efficient network infrastructure, the SFP cage plays a pivotal role in ensuring proper connectivity, signal integrity, and flexibility. Whether you're an IT professional setting up a data center or a network engineer working on a corporate network, choosing the right SFP cage is essential. In this comprehensive guide, we’ll explore what an SFP cage is, why it’s crucial for your network, how to select the best one for your needs, and answer some of the most common questions people have about these components.

What is an SFP Cage?

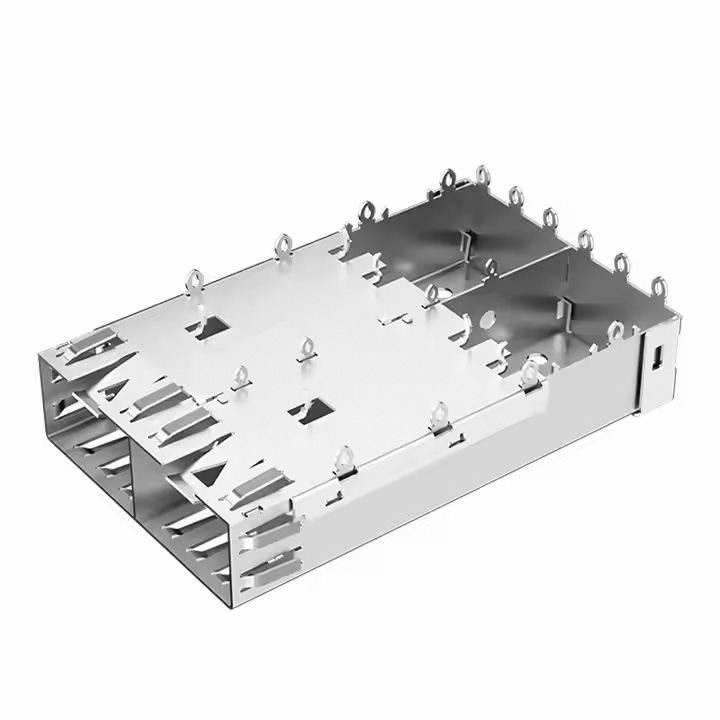

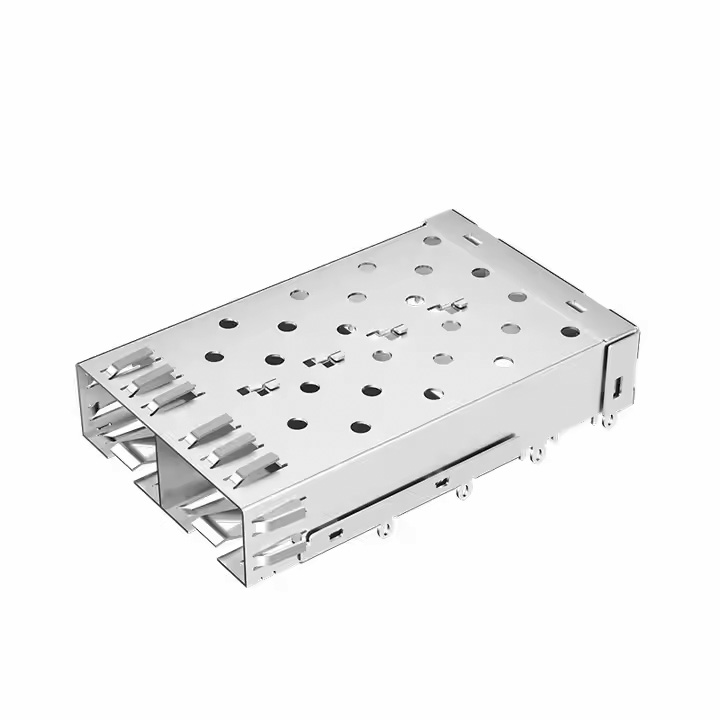

An SFP cage (Small Form-factor Pluggable cage) is a standardized slot used to house and support an SFP transceiver module. These cages are typically used in network switches, routers, and other network hardware to provide a physical interface for inserting various types of SFP modules, including SFP, SFP+, and even SFP28, to enable data transmission over fiber optics or copper cables.

The SFP cage is designed to ensure secure connection, stable electrical contact, and prevent any physical or electrical damage to the module. It allows network devices to be more versatile by enabling them to accommodate different types of transceiver modules, depending on the type of network or bandwidth requirement.

Key Features of an SFP Cage:

• Compatibility: Supports various SFP modules including 1GbE, 10GbE, and beyond.

• Flexibility: Allows the user to upgrade or change transceivers without replacing the entire device.

• Physical Protection: Ensures proper alignment and electrical contact, minimizing the risk of signal degradation or electrical shorts.

• Modular Design: Facilitates easy installation and maintenance, reducing downtime during upgrades.

Why is Choosing the Right SFP Cage Important?

Choosing the right SFP cage is crucial because it directly affects the overall performance and stability of your network. A poorly selected SFP cage may cause compatibility issues, reduced data transfer rates, or even hardware damage. The SFP cage must match the specifications of your network hardware and the SFP modules you intend to use.

Key Factors to Consider When Choosing an SFP Cage

1. Compatibility with Modules
   Different SFP cages are designed to accommodate specific types of transceivers. Whether you're working with SFP (1Gbps), SFP+ (10Gbps), or SFP28 (25Gbps) modules, ensure the cage supports the type of transceiver required for your network.

2. Data Rate and Bandwidth Requirements
   If you are setting up a high-speed network or working with high-performance data centers, it’s essential to select an SFP cage that supports the necessary data rate. For instance, if you are using 10GbE or higher-speed SFP+ transceivers, choose an SFP cage specifically designed for these speeds to ensure optimal performance.

3. Material Quality and Durability
   The material of the SFP cage determines its durability, especially in environments with high electromagnetic interference (EMI). Choosing high-quality, corrosion-resistant materials like stainless steel can ensure the longevity and stability of the cage.

4. Form Factor and Size
   Ensure the form factor of the SFP cage fits into the available space within your hardware. The cage must align with the physical dimensions of the device’s slot to ensure proper installation.

5. Installation and Maintenance Considerations
   Look for an SFP cage that is easy to install and maintain. This includes tools needed for installation and any special mounting requirements. Additionally, modular cages that allow for easy swaps or upgrades are more flexible in the long run.

Types of SFP Cages: Which One is Right for Your Setup?

1. Standard SFP Cages

These cages are designed for standard SFP (Small Form-factor Pluggable) modules, which typically support speeds up to 1Gbps. Standard SFP cages are ideal for applications that require lower-speed networking, such as enterprise-level network setups, smaller data centers, or low-bandwidth connections.

2. SFP+ Cages

SFP+ cages support SFP+ transceivers and are suitable for 10GbE (Gigabit Ethernet) networks. SFP+ modules are commonly used in data centers, telecommunications, and enterprises that require high-speed connections for high-volume traffic. They offer significant bandwidth improvements compared to the standard SFP modules and can support fiber optic or copper connections.

3. SFP28 Cages

SFP28 cages are designed for 25Gbps Ethernet transceivers, supporting faster speeds for more demanding applications. They are particularly useful for modern data centers, cloud infrastructure, and enterprises that require ultra-high-speed connections to handle large data transfers, cloud services, and virtualization workloads.

4. QSFP and QSFP+ Cages

For even higher data rates, QSFP (Quad Small Form-factor Pluggable) and QSFP+ cages support 40GbE and 100GbE transceivers, respectively. These cages are ideal for large-scale network backbones, high-performance computing, and environments with extensive data traffic.

How to Ensure Proper Compatibility and Performance

To maximize the performance of your network, it's essential to ensure the compatibility of the SFP cage with both the module and the device it’s being installed into. A mismatch between the SFP cage and module can lead to slow data rates, signal integrity issues, or even hardware failure.

Key Tips for Ensuring Compatibility:

• Check the device’s specifications for supported transceiver types and speeds.

• Verify the form factor of the cage to ensure it fits into your network equipment slot.

• Select a high-quality, durable cage to minimize wear and tear, especially in high-performance setups.

Common Problems with SFP Cages and How to Solve Them

Despite their robust design, issues with SFP cages do arise. Here are some common problems and troubleshooting tips:

1. Loose Connection

If the SFP module is not properly seated in the cage, it can cause connectivity issues. Ensure that the module is securely locked into place and that the latch is properly engaged.

2. Compatibility Issues

If the SFP cage is not compatible with the transceiver module you are using, you may experience slower speeds or no connection at all. Double-check that the cage and module are both designed to support the same speeds and protocols.

3. Signal Degradation

In high-frequency applications, signal degradation can occur if the SFP cage does not provide proper shielding or if it’s made from poor-quality materials. Make sure the cage is designed to minimize electromagnetic interference (EMI).

Frequently Asked Questions (FAQs) About SFP Cages

1. What is the difference between SFP and SFP+ cages?

SFP cages are used for standard 1Gbps modules, while SFP+ cages are specifically designed for 10Gbps modules. If your network requires speeds greater than 1Gbps, an SFP+ cage is essential for optimal performance.

2. Can I use a 10GbE SFP+ module in a standard SFP cage?

No, SFP+ modules are not compatible with standard SFP cages. You must use an SFP+ cage to ensure proper electrical contact and avoid performance issues.

3. How do I know if the SFP cage is compatible with my network hardware?

Check the specifications of both your network hardware (e.g., switch or router) and the SFP module. Ensure that both are compatible with the speed and form factor of the SFP cage you intend to use.

4. Do I need to upgrade my SFP cage for higher speeds like 40GbE or 100GbE?

Yes, higher-speed transceivers such as QSFP+ (40GbE) and QSFP28 (100GbE) require specific cages designed to handle the higher data rates. These cages are larger and have different connector layouts compared to standard SFP cages.

5. How do I install an SFP cage properly?

Installation typically involves inserting the cage into the device’s SFP slot, ensuring it is securely locked in place. Always refer to the manufacturer’s instructions for detailed installation procedures.

6. Can an SFP cage be used in industrial applications?

Yes, SFP cages are used in various industries, including telecommunications, manufacturing, and automation, to provide reliable high-speed data transmission over fiber optics or copper cables.

Conclusion

Choosing the best SFP cage for your network setup is essential to ensuring stable, high-speed data transmission. By understanding the different types of SFP cages available, their compatibility with various modules, and their role in enhancing network performance, you can make a well-informed decision. Whether you're building a data center, upgrading a network, or simply enhancing your home office setup, selecting the right SFP cage is a critical step in achieving a reliable and future-proof network infrastructure.

If you have any further questions about SFP cages or need assistance with product selection, feel free to contact our team for expert guidance and support.
