Model No: MN-L80A (CCO,STA)

Long Communication IoT Module 0.507Mbit/s Power Line Carrier Module For Remote Control For Solar Inverter

minimum order :

2 pieces

Stock Time :

7Day

Quantity :

add to cart

Contact Now

Model Number:MN-L80A (CCO,STA)
Place of Origin:Guangdong, China
Brand Name:Micro Nature
Chipset:PS0211
Supplier Type:Factory
Application:Solar Inverter,Smart Lighting

Product Overview

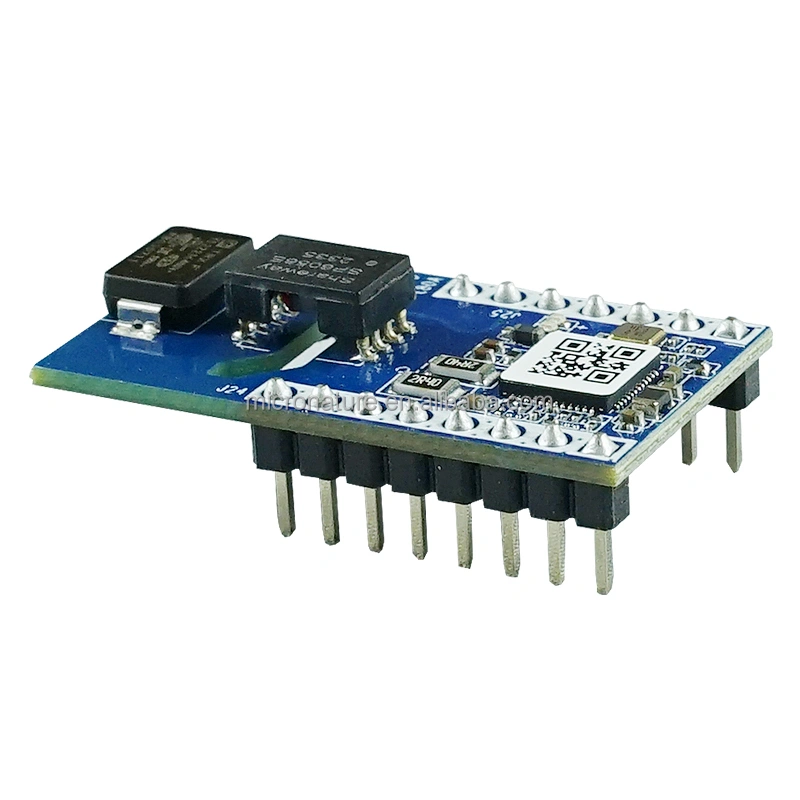

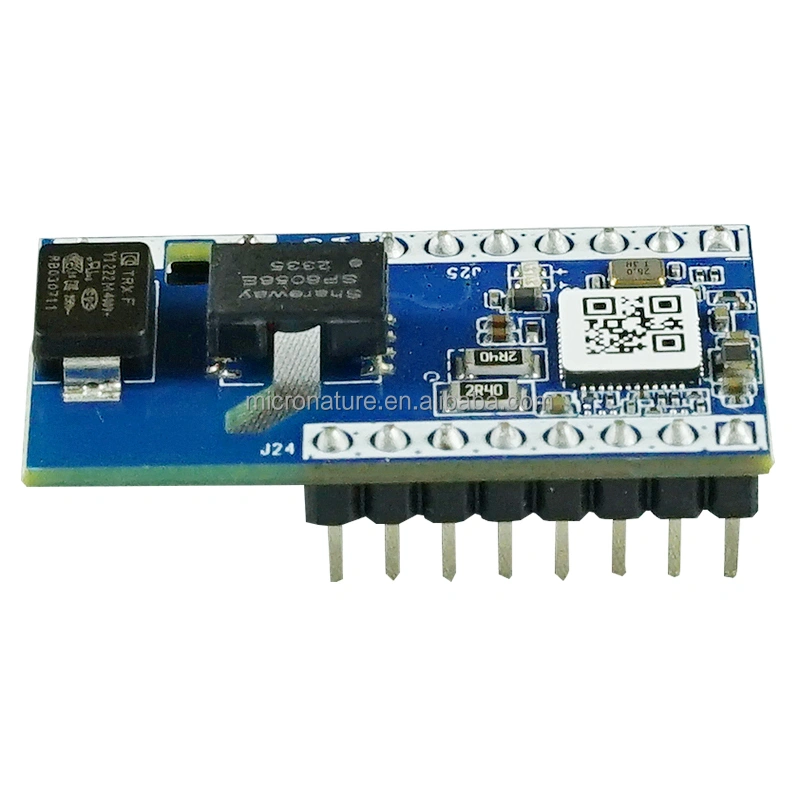

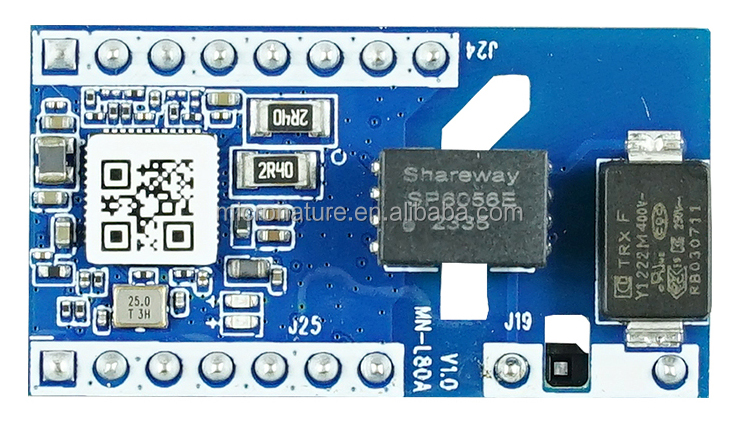

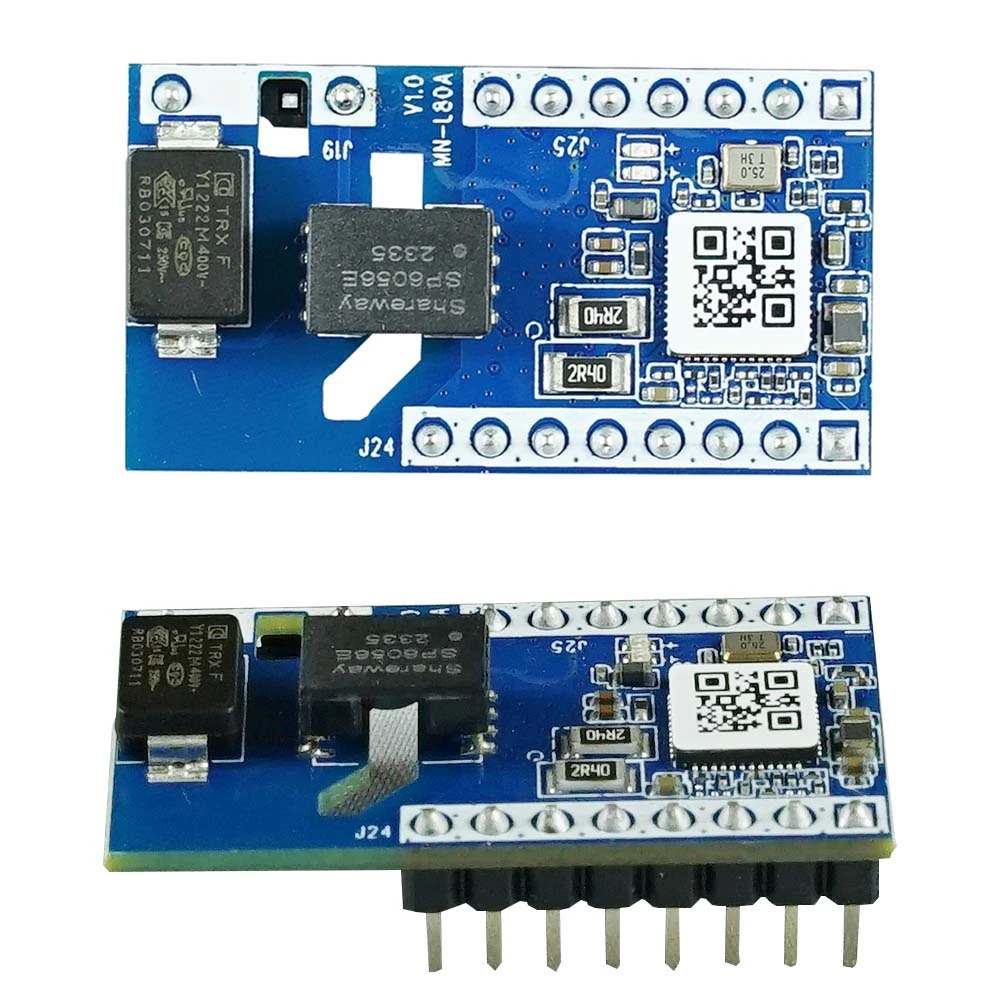

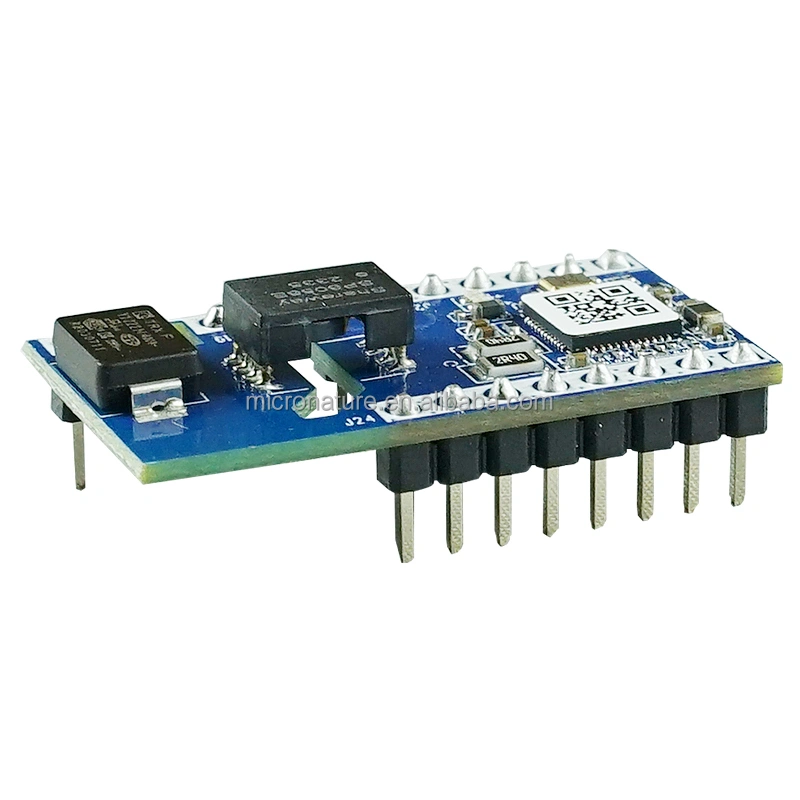

PLC IoT MN-L80A Module

MN-L80A PLC Module is a fully integrated Power Line Communication (PLC) communication module with ultra-compact size, compact structure, and simple wiring. It can be widely used in various PLC instant communication applications, such as smart street lighting, smart homes, smart parking, central air conditioning, and ubiquitous power Internet of Things (IoT) terminal devices.

PRODUCT SPECIFICATIONS

CPU & Storage Performance
1	High performance Cortex-M3 processor operating at 200MHz
2	Embedded SRAM 256KB, FLASH 512KB.
Physical Layer Properties
1	Realizes the IEEE 1901.1 standard subset, and can realize interoperability for chips that also use this subset.
2	Supports 0.5-3.7MHZ and 2.5-5.7MHZ frequency bands, which can be configured by software.
3	Adopts OFDM technology and supports BPSK and QPSK modulation modes.
4	Supports FEC and CRC functions, powerful denoising and error correction capability.
MAC Features
1	Supports TDMA and CSMA/CA, and provides conflict avoidance mechanism.
2	Supports data segmentation and reorganization to improve transmission efficiency.
3	Supports data retransmission mechanism.
4	Supports 4 levels of QoS to meet different business quality of service requirements.
Networking Features
1	Supports automatic fast networking, typical 200-size, 2-layer network scenarios 10s to complete fast networking, support for fast communication.
2	Support dynamic routing, multi-path addressing.
Peripheral Interfaces
1	UART, GPIO, SPI, I2C,PWM, ADC
Communication Metrics
1	Built-in Line Driver, transmit power up to -51dBm/Hz
2	Peak physical layer rate 0.507Mbit/s, application layer rate 80Kbps.
3	Receive sensitivity up to -98dbm (transmit power -51dBm/Hz, lab conditions, based on 30% packet success rate)
Software
1	Open operating system LiteOS, providing an open, efficient and secure system development and operation environment. Flexible protocol support and expansion capability.
2	The software supports whitelist identification, and the hardware implements AES128/256 encryption and decryption algorithm, RSA signature verification algorithm, and HASH anti-tampering algorithm. The internal integration of EFUSE supports key storage and secure boot to meet Huawei's security requirements.
Power Consumption & Others
1	Static power consumption≤0.15W
2	Dynamic operating power ≤ 0.5W.
3	LxWxH: 33.018.05.8±0.3mm (excluding needle height)

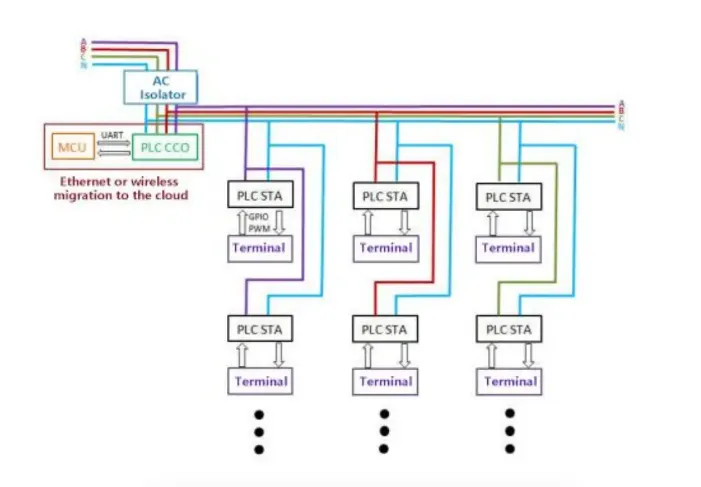

PRODUCT CONFIGURATION

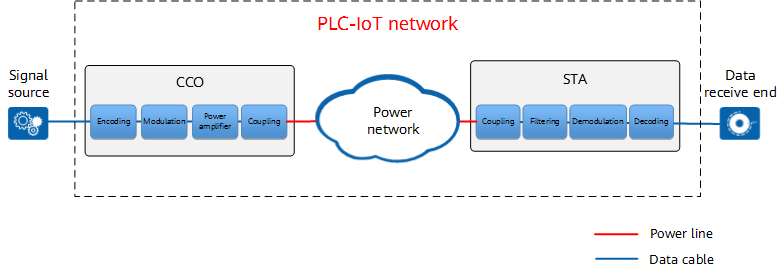

What Is PLC-IoT?

Power Line Communication Internet of Thing (PLC-IoT) is an HPLC/IEEE 1901.1-compliant mid-band Power Line Communication (PLC) technology launched for industrial IoT scenarios to transmit data over power lines on low-voltage networks. PLC-IoT eliminates the need to roll out additional communication lines and delivers reliable, secure, and efficient communication in the"last mile"of IoT.

PLC reuses power lines to transmit data, enabling connections to IoT devices without the need to deploy dedicated lines. It does not have the problem of severe impact from surrounding environments (such as poor signals) encountered by wireless communication technologies or problems of severe impact from line characteristics and poor openness and interoperability encountered by industrial field bus technologies.

PLC resolves the impossibility of sharing the same network by different communication technologies and eliminates the need of extra investments. By transmitting data over power lines, connectivity of everything will not be far from reality.
