Multi-interface PLC-IoT Communication Transceiver Module With Line-Driver MN-L60C Power Line Communication Module

minimum order :

2 pieces

Stock Time :

7Day

add to cart

Contact Now

Model Number:MN-L60C
Place of Origin:Guangdong, China
Brand Name:Micro Nature
Supplier Type:Manufacturer
Application:Street lamp/Gateway
Product name:PLC MN-L60C Module
Type:plc-iot module
Interface:UART, PWM, GPIO,ADC
Size:L*L*W*H: 24.3*13.0*3.6mm±0.3
Support:Contact us for more details.

Product Overview

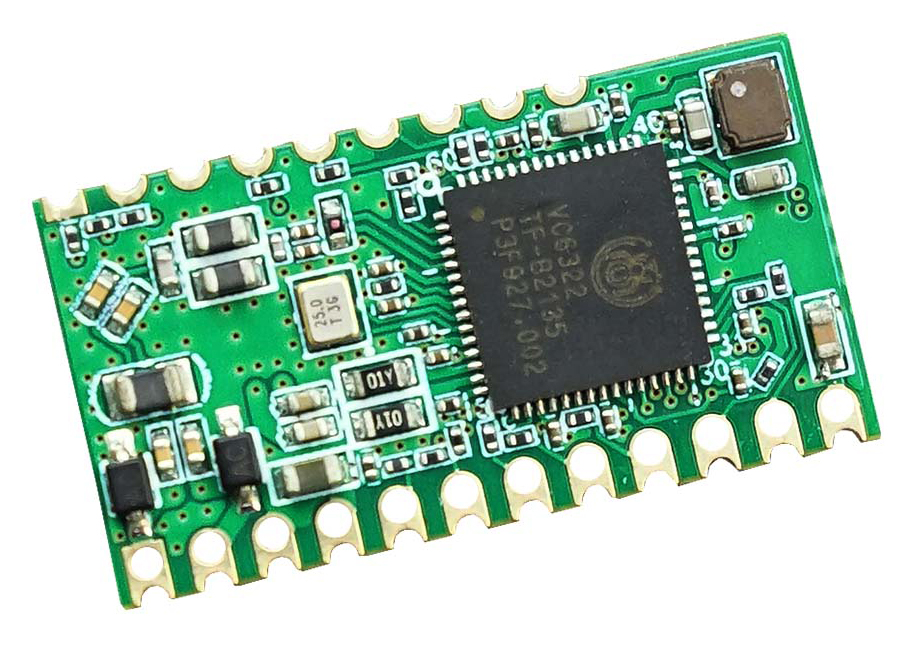

PLC IoT MN-L60C Module

MN-L60C is a fully integrated Power Line Communication (PLC) communication module with ultra-compact size, compact structure, and simple wiring. It can be widely used in various PLC instant communication applications, such as smart street lighting, smart homes, smart parking, central air conditioning, and ubiquitous power Internet of Things (IoT) terminal devices.

PRODUCT SPECIFICATIONS

CPU & Storage Performance
1	High-performance Cortex-M4 processor and 32-bit DSP with 150MHz core operating frequency
2	Embedded with 2MB SDRAM and 2MB Flash
Physical Layer Properties
1	Realizes subset of SGCCQ/Q/GDW11612 or IEEE 1901.1 standard.
2	Supports 0~12M multiple frequency bands, 1.95~12MHz, 2.4~5.6MHz, 0.78~2.93MHz and 1.76~2.93MHz are optional.
3	Adopts OFDM technology and supports BPSK, QPSK and 16QAQAM signal modulation techniques.
4	Supports FEC and CRC functions, strong error correction and denoising capability.
5	AES-128/192/256,SM2/SM3/SM4 acceleration engine.
MAC Features
1	Supports TDMA and CSMA/CA, and provides conflict avoidance mechanism.
2	Supports data segmentation and reorganization to improve transmission efficiency.
3	Supports data retransmission mechanism.
4	Supports 4 levels of QoS to meet different business quality of service requirements.
Networking Features
1	Supports automatic fast networking, typical 200-size, 2-layer network scenarios 10s to complete fast networking, support for fast communication.
2	Support dynamic routing, multi-path addressing.
Peripheral Interfaces
1	UART, GPIO, PWM, ADC
Communication Metrics
1	Peak physical layer rate 0.507Mbit/s, application layer rate 80Kbps.
2	Receive sensitivity better than 0.2mVpp.
Power Consumption & Others
1	Static power consumption≤0.15W
2	Dynamic operating power ≤ 0.7W.
3	Operating ambient temperature range: -40°C to +85°C.
4	Package size: LxWxH:24.313.03.6mm±0.3

PRODUCT CONFIGURATION

MN-L60C PLC Module integrates high-speed/low-speed multimode power line carrier communication modem, ARM Cortex-M4 processor, and 32-bit DSP. It supports OFDM, PSK, and 16-QAM modulation and demodulation.

MN-L60C PLC Module provides various peripheral interfaces such as UART, PWM, and GPIO, and integrates a built-in line driver (Line-Driver).
