Manufacturer MP-6302 PLC IoT Module For Industrial Automation Intelligent PS0211 Chip Based Power Line Carrier Module

minimum order :

2 pieces

Stock Time :

7Day

add to cart

Contact Now

Model Number:MP-6302
Place of Origin:Guangdong, China
Brand Name:Micro Nature
Chipset:PS0211
Supplier Type:Factory
Application:Smart Lighting/Smart Home/Smart Parking
Product name:PLC IoT Module
CPU:Cortex-M3 Processor Operating at 200MHz
Storage Performance:Embedded SRAM 256KB
Interface:I2C,UART,PWM,GPIO

Product Overview

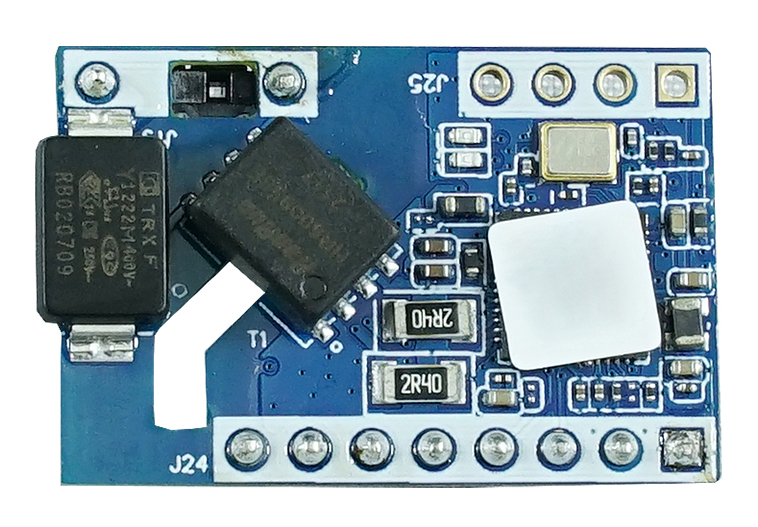

PLC IoT MP-6302 Module

The MP-6302 is a fully integrated power line communication (PLC) module withultra-miniaturized size, compact structure and simple wiring, which can be widely used invarious PLC instant messaging application scenarios such as smart street lights, smart homes, smart parking, central air conditioning and ubiquitous power IoT terminal equipment.

PRODUCT SPECIFICATIONS

CPU & Storage Performance
1	High performance Cortex-M3 processor operating at 200MHz
2	Embedded SRAM 256KB.
Physical Layer Properties
1	Realizes the IEEE 1901.1 standard subset, and can realize interoperability for chips that also use this subset.
2	Supports 0.5-3.7MHZ and 2.5-5.7MHZ frequency bands, which can be configured by software.
3	Adopts OFDM technology and supports BPSK and QPSK modulation modes.
4	Supports FEC and CRC functions, powerful denoising and error correction capability.
MAC Features
1	Supports TDMA and CSMA/CA, and provides conflict avoidance mechanism.
2	Supports data segmentation and reorganization to improve transmission efficiency.
3	Supports data retransmission mechanism.
4	Supports 4 levels of QoS to meet different business quality of service requirements.
Networking Features
1	Supports automatic fast networking, typical 200-size, 2-layer network scenarios 10s to complete fast networking, support for fast communication.
2	Support dynamic routing, multi-path addressing.
Peripheral Interfaces
1	UART, GPIO, SPI, I2C,PWM
Communication Metrics
1	Built-in Line Driver, transmit power up to -51dBm/Hz
2	Peak physical layer rate 0.507Mbit/s, application layer rate 80Kbps.
3	Receive sensitivity up to -98dbm (transmit power -51dBm/Hz, lab conditions, based on 30% packet success rate)
Software
1	Open operating system LiteOS, providing an open, efficient and secure system development and operation environment. Flexible protocol support and expansion capability.
2	The software supports whitelist identification, and the hardware implements AES128/256 encryption and decryption algorithm, RSA signature verification algorithm, and HASH anti-tampering algorithm. The internal integration of EFUSE supports key storage and secure boot to meet Huawei's security requirements.
Power Consumption & Others
1	Static power consumption≤0.15W
2	Dynamic operating power ≤ 0.5W.
3	LxWxH: 28.1218.005.80±0.30mm (excluding needle height)

INTRODUCTION

The MP-6302 is based on the PS0211 chip, which integrates a high-speed/low-speed multimode power line carrier communication modulation demodulator and an ARMCortex-M3 processor. The PS0211 chip supports P1901.1, OFDM/FSK modulation, and tonemask and SunSpec standards.
