POE RJ45 Suppliers- Comprehensive Analysis of Connector Technology and Applications

Chapter 1: Core Technology and Competitive Advantages of POE RJ45 Connectors

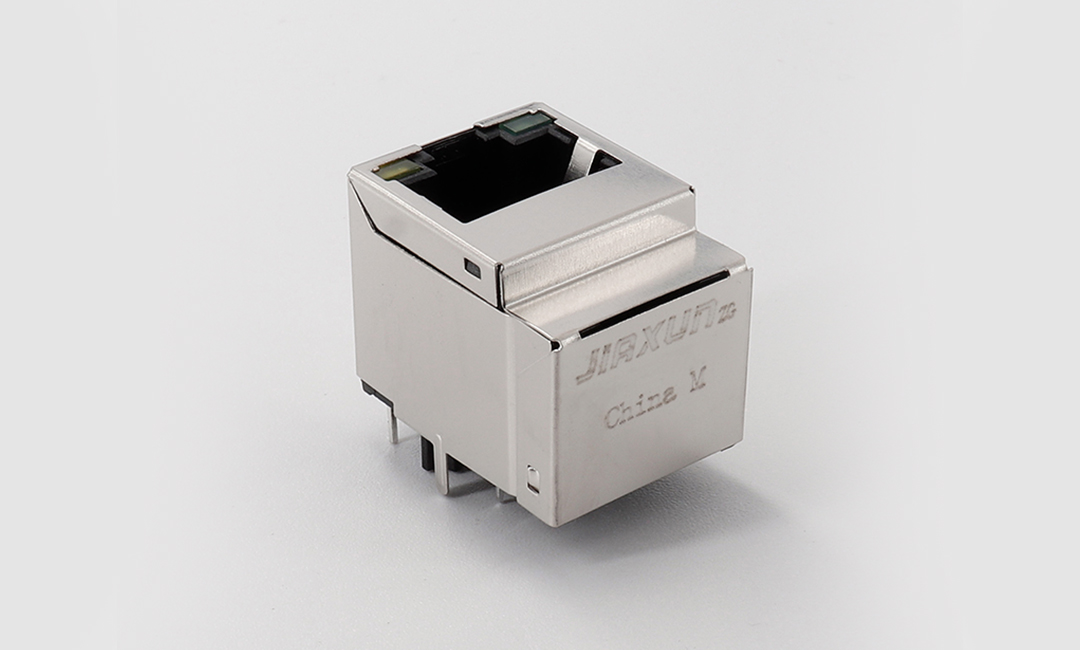

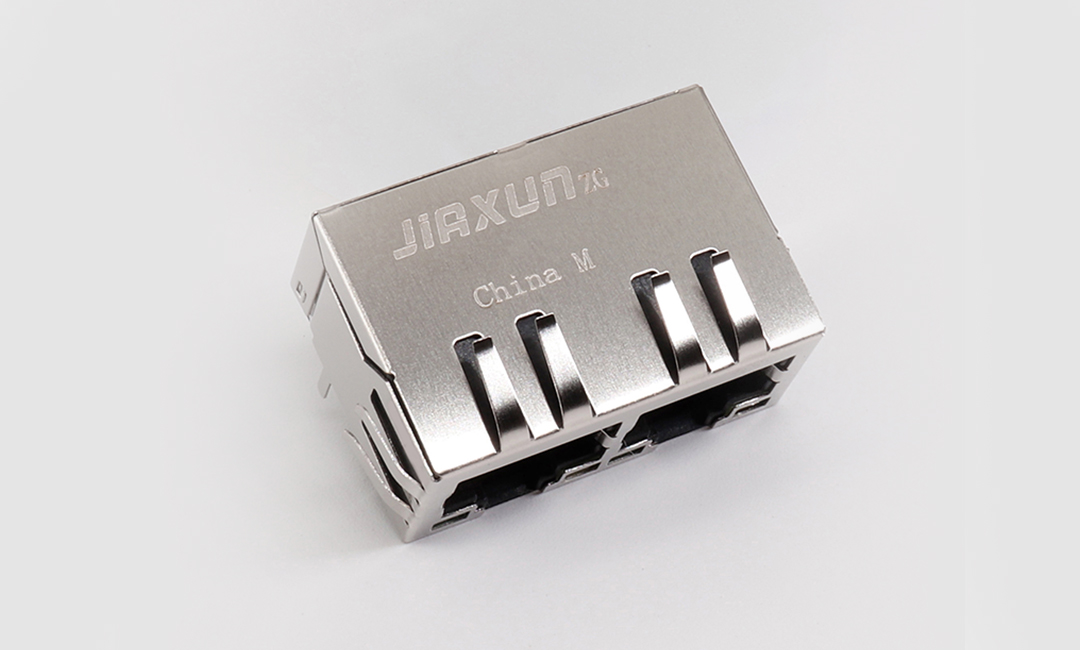

The POE RJ45 connector is a network interface integrating Power over Ethernet (PoE) technology, enabling simultaneous data transmission and power delivery (up to 100W) via standard cables like Cat5e/Cat6. As a flagship product of POE RJ45 suppliers, these connectors comply with IEEE 802.3af/at/bt standards, ensuring compatibility and operational safety. Key advantages include cost reduction by eliminating separate power cables, remote power management capabilities, and enhanced signal stability through gold-plated contacts and advanced shielding.

Compared to traditional RJ45 jack, POE RJ45 jack excel in scenarios requiring centralized power distribution, such as IP surveillance systems, wireless access points, and IoT devices. Leading POE RJ45 suppliers prioritize R&D to optimize impedance matching (typically 100Ω ±15%) and insertion loss (<0.3dB at 500MHz), ensuring compliance with TIA/EIA-568 performance benchmarks. Enterprises should collaborate with certified suppliers to secure connectors with ≥1,000 mating cycles and ≤20mΩ contact resistance for long-term network reliability.

Chapter 2: Diverse Applications of POE RJ45 Jack

POE RJ45 jack have become indispensable across industries due to their dual-purpose cabling efficiency. In smart security systems, they power IP cameras and access control units while transmitting 4K video streams. Industrial automation leverages POE RJ45 connectors for ruggedized sensor networks and PLC communications, with IP67-rated variants resisting harsh environments. Commercial applications span digital signage, VoIP phones, and Wi-Fi 6 access points, where simplified installation reduces deployment costs by up to 40%.

Forward-thinking POE RJ45 suppliers offer application-specific solutions:

• Industrial-grade: Featuring operating temperatures (-40°C to +85°C) and corrosion-resistant nickel plating.

• Data center: Supporting 10GBase-T with 500MHz bandwidth and low-skew PCB designs.

• Smart buildings: Integrated surge protection (6kV) for lightning-prone areas.
  As 5G and edge computing proliferate, demand grows for high-density POE RJ45 jack in micro-DC deployments, driving suppliers to innovate in heat dissipation and EMI shielding.

Chapter 3: Production Processes and Quality Control for POE RJ45 Connectors

Premium POE RJ45 suppliers adhere to stringent manufacturing protocols:

1. Precision stamping: Phosphor bronze contacts undergo progressive die stamping (tolerance ±0.02mm).

2. Modular molding: High-temperature LCP or PBT housings are injection-molded with UL94 V-0 flame retardancy.

3. Automated assembly: Robotic systems align contacts and shielding foil (≥65μm thickness) under ISO Class 7 cleanrooms.

4. Rigorous testing: Each unit undergoes Hi-POT (1,500VAC/1min), contact resistance (<50mΩ), and TDR testing for impedance consistency.

Quality benchmarks include:

• Compliance: IEC 60603-7-5, RoHS, and REACH certifications.

• Durability: 8-pin connectors withstand ≥1,500 insertion cycles per IEC 60512.

• Performance: Crosstalk ≤-40dB @ 250MHz; return loss ≤-20dB @ 500MHz.
  Top-tier suppliers implement Six Sigma methodologies, achieving defect rates <50ppm, and provide 3D models (STEP files) for seamless integration into client PCB layouts.

Chapter 4: Strategic Selection of POE RJ45 Suppliers

When evaluating POE RJ45 suppliers, consider these criteria:
Technical capability:

• Prototyping speed (≤5 business days for standard connectors).

• Customization support (e.g., color coding, angled designs).

• UL 1977 component recognition and ISO 9001:2015 certification.

Supply chain stability:

• Raw material traceability (conflict-free minerals policy).

• MOQ flexibility (500–10,000 units based on connector type).

• Regional warehousing for JIT delivery.

Cost-effectiveness:

• Volume discounts (15–30% for orders >10k units).

• TCO analysis including MTBF (>100,000 hours) and warranty terms (≥5 years).

Global leaders like Amphenol and Hirose dominate high-end markets with patented MagJack® and iPass+® designs, while Asian suppliers like Foxconn and Luxshare excel in cost-optimized solutions. Conduct on-site audits to verify IATF 16949 compliance for automotive-grade POE RJ45 jack or ISO 13485 for medical applications.

Conclusion: With the POE market projected to grow at 13.2% CAGR (2023–2030), partnering with innovative POE RJ45 suppliers ensures access to next-gen solutions like 90W Type 4 connectors and 25Gbps variants. Prioritize suppliers demonstrating R&D investments in GaN-based power optimization and automated contact plating technologies to future-proof your infrastructure.
