Model No: MP-6332
Power Line Carrier Communication Module With Built-in Line-Driver IoT Communication Transceiver Module
minimum order :
2 pieces
Stock Time :
7Day
- Model Number:MP-6332
- Place of Origin:Guangdong, China
- Brand Name:Micro Nature
- Chipset:PS0211
- Supplier Type:Factory
- Application:Smart Lighting/Smart Home/Smart Parking
- Product name:PLC IoT Module
- Function:Wireless Data Transmission
- Dimension:LxWxH 20.0*11.0*2.4±0.3mm
- Interface:I2C,UART,PWM,GPIO,ADC
- Main IC:PS0211
- Support:Contact us for more details
Product Overview

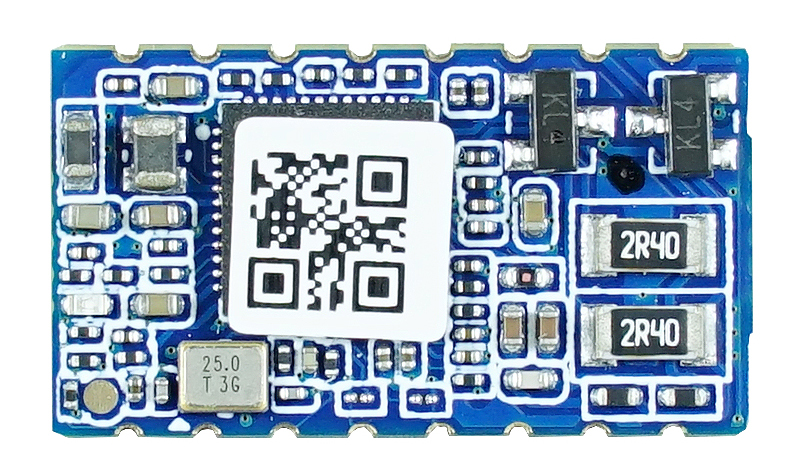

PLC IoT MP-6332 Module
MP-6332 is a fully integrated power line communication (PLC) module with ultra-miniaturized size, compact structure and simple wiring, which can be widely used invarious PLC instant communication application scenarios such as intelligent street lights, smart homes, smart parking, central air conditioning and ubiquitous power Internet of Thingsend devices.
INTRODUCTION
Based on the PS0211 chip, the MP-6332 integrates a high-speed/low-speed multi-modepower line carrier communication modem and an ARM Cortex-M3 processor.
PRODUCT SPECIFICATIONS
CPU & Storage Performance | ||
1 | High performance Cortex-M3 processor operating at 200MHz | |
2 | Embedded SRAM 256KB | |
Physical Layer Properties | ||
1 | Realizes subset of SGCCQ/Q/GDW11612 or IEEE 1901.1 standard. | |
2 | Supports 0~12M multiple frequency bands, 1.95~12MHz, 2.4~5.6MHz, 0.78~2.93MHz and 1.76~2.93MHz | |
3 | Adopts OFDM technology and supports BPSK, QPSK and 16QAQAM signal modulation techniques. | |
4 | Supports FEC and CRC functions, strong error correction and denoising capability. | |
5 | AES-128/192/256,SM2/SM3/SM4 acceleration engine. | |
MAC Features | ||
1 | Supports TDMA and CSMA/CA, and provides conflict avoidance mechanism. | |
2 | Supports data segmentation and reorganization to improve transmission efficiency. | |
3 | Supports data retransmission mechanism. | |
4 | Supports 4 levels of QoS to meet different business quality of service requirements. | |
Networking Features | ||
1 | Supports automatic fast networking, typical 200-size, 2-layer network scenarios 10s to complete fast networking, support for fast communication. | |
2 | Support dynamic routing, multi-path addressing. | |
Peripheral Interfaces | ||
1 | I2C, UART, GPIO, PWM, ADC | |
Communication Metrics | ||
1 | Peak physical layer rate 0.507Mbit/s, application layer rate 80Kbps. | |
2 | Receive sensitivity better than 0.2mVpp. | |
Power Consumption & Others | ||
1 | Static power consumption≤0.15W | |
2 | Dynamic operating power ≤ 0.7W. | |
3 | Operating ambient temperature range: -40°C to +85°C. | |
4 | Package size: 20.0*11.0*2.4±0.3mm | |
WHY CHOOSE US
POWER LINE COMMUNICATION (PLC) TECHNOLOGY
FAQ
Q1: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 5 years and is designed to withstand heavy use in industrial environments.
Q2: What if I don't understand how HPLC IoT works?
A: We provide free online technology training and free project proposal. If there's any smart lighting projects, feel free to contact us:
Tel:+86 13902945370
Web:www.micronature.cn
Q3: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE, RoHS, LVD.
A: Our product has an expected lifespan of 5 years and is designed to withstand heavy use in industrial environments.
Q2: What if I don't understand how HPLC IoT works?
A: We provide free online technology training and free project proposal. If there's any smart lighting projects, feel free to contact us:
Tel:+86 13902945370
Web:www.micronature.cn
Q3: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE, RoHS, LVD.
