Why is RJ45 Modular Jack the Preferred Choice for Network Communication An In-Depth Analysis of Its Advantages and Structure

In today’s hyper-connected digital era, stable and high-performance network connectivity is critical for both business operations and residential use. As the cornerstone of wired Ethernet, the RJ45 Ethernet connector has become the global standard due to its superior compatibility, reliability, and cost-effectiveness. This article provides a comprehensive analysis of the RJ45 Modular Jack’s structure, working principles, key advantages, and recommended products from leading RJ45 Modular Jack Manufacturers, helping you select the optimal networking solution.

Introduction to RJ45 Connectors

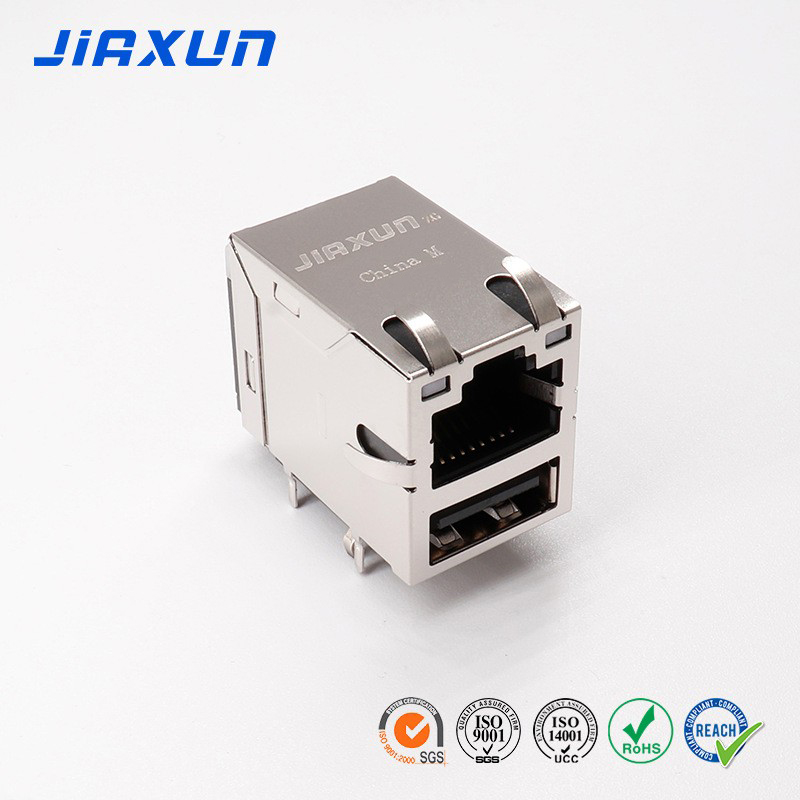

The RJ45 Ethernet connector (Registered Jack 45) is a standardized 8P8C (8-position, 8-contact) modular interface primarily used in Ethernet communications. It serves as the primary physical link between network devices—such as routers, switches, and computers—and is widely deployed in corporate LANs, data centers, smart homes, and industrial automation systems.

Evolution of the RJ45 Standard

Originally derived from telephone modular connectors, the RJ45 Modular Jack evolved into the dominant interface for Ethernet networks. Early versions supported 10/100Mbps speeds, while modern Cat6, Cat6a, and Cat7 RJ45 Ethernet connectors now facilitate Gigabit and even 10-Gigabit Ethernet, meeting the demands of high-speed data transmission.

Key Applications

• Enterprise Networks: Office cabling, server room interconnections

• Residential Networks: Smart home devices, broadband access

• Industrial Environments: Factory automation, control systems

• Data Centers: High-density server-to-switch connectivity

To meet diverse industry requirements, RJ45 Modular Jack Manufacturers continuously refine their designs for enhanced performance and durability.

Structure and Working Principles of RJ45 Connectors

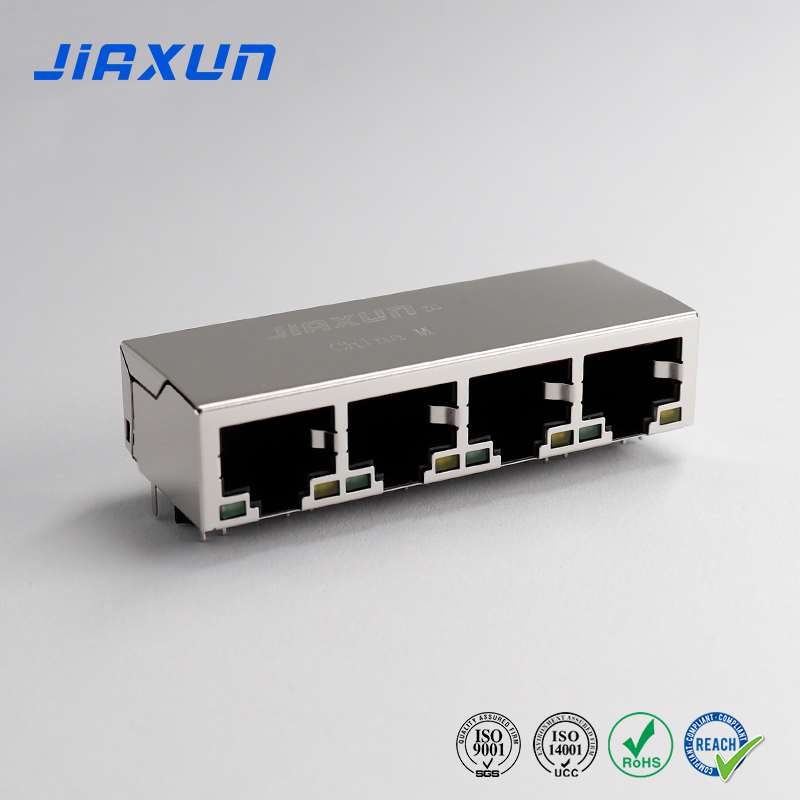

Physical Design

The RJ45 connector consists of a modular plug (crimp connector) and a jack (port), utilizing an 8P8C configuration with four twisted pairs (eight conductors). The two predominant wiring standards—T568A and T568B—ensure compatibility, with T568B being the de facto choice in commercial installations.

Data Transmission Mechanism

RJ45 employs twisted-pair differential signaling to minimize electromagnetic interference (EMI) and ensure stable data transfer. Bandwidth support varies by category:

• Cat5e: 1Gbps (Gigabit Ethernet)

• Cat6/Cat6a: 10Gbps (10-Gigabit Ethernet)

• Cat7/Cat8: Enhanced shielding for high-speed, high-interference environments

Performance Variations in RJ45 Ports

• Unshielded (UTP): Ideal for standard office/home use

• Shielded (STP/FTP): Suited for industrial or data center applications

• Weatherproof Models: Designed for outdoor surveillance, vehicular networks

Leading RJ45 Modular Manufacturers employ gold-plated contacts and advanced shielding to optimize durability and signal integrity.

Core Advantages of RJ45 Technology

Universal Compatibility

The RJ45 interface is universally supported across networking hardware, from enterprise-grade switches to consumer routers, enabling seamless integration and reducing deployment costs.

Reliability and Stability

• High Durability: Premium RJ45 connectors withstand thousands of insertions

• Noise Immunity: Twisted-pair design mitigates signal degradation

• Power over Ethernet (PoE): Supports devices like IP cameras and wireless APs

Cost Efficiency

Compared to fiber optics, RJ45 offers significantly lower installation and maintenance expenses, making it ideal for SMBs and residential users.

Ease of Deployment

• Tool-Assisted Termination: Crimping tools enable quick plug assembly

• Troubleshooting: Cable testers simplify fault detection

Many RJ45 Modular Jack suppliers also provide customization options, including length variations, color coding, and industrial-grade protection.

Recommended RJ45 Connector Products

The following offerings from top-tier RJ45 Modular Jack Manufacturers combine performance and dependability for diverse use cases:

Product 1: JIAXUNZG Brand Cat6a Shielded RJ45 Plug

• Features: 10Gbps support, gold-plated contacts, oxidation-resistant

• Applications: Data centers, high-speed backbone networks

Product 2: JIAXUNZG Brand Industrial IP67 RJ45 Coupler

• Features: Waterproof, extreme-temperature resistant

• Applications: Outdoor surveillance, factory automation

Product 3: JIAXUNZG Brand Tool-Less RJ45 Keystone Jack

• Features: Tool-free installation, time-saving

• Applications: Home/office retrofits

Product 4: JIAXUNZG Brand 10GBase-T RJ45 Port Module

• Features: Cat6a compliant, PoE++ powered

• Applications: High-end conference rooms, smart buildings

Selection Guidelines:

• Basic needs: Cat5e/Cat6 UTP

• Harsh environments: Shielded/weatherproof models

• Future-proofing: Cat6a/Cat7 for scalability



The Future of RJ45 Connectivity

While fiber optics dominate ultra-high-speed applications, the RJ45 Modular Jack remains indispensable for short-to-medium-range deployments due to its affordability and ease of implementation. Innovations from RJ45 Modular Jack manufacturers—such as higher bandwidth capacities and advanced PoE standards—will ensure its continued relevance in enterprise, residential, and industrial networks.

For mission-critical installations, partnering with certified RJ45 Modular Jack suppliers guarantees long-term performance and compliance with industry standards.
