RJ45 Connector Types: Complete Guide to Choose the Right One (2026)

Introduction

Choosing the right RJ45 connector type is more important than most people think.

👉 The wrong choice can lead to:

• Signal interference

• Poor connection stability

• Reduced network performance

In this guide, we’ll break down all major RJ45 connector types and help you choose the right one for your application.

---

What Is an RJ45 Connector?

An RJ45 connector is an 8-pin (8P8C) connector used for Ethernet networking.

👉 It connects:

• Ethernet cables

• Network devices (routers, switches, servers)

---

Main Types of RJ45 Connectors

1. UTP (Unshielded Twisted Pair) RJ45 Connector

👉 Most common type

Features:

• No shielding

• Lower cost

• Easy installation

Best for:

• Home networks

• Offices

---

2. STP (Shielded Twisted Pair) RJ45 Connector

👉 Designed for high-interference environments

Features:

• Metal shielding

• Better EMI protection

• More stable signal

Best for:

• Industrial environments

• Data centers

---

3. Cat5 / Cat5e RJ45 Connector

Features:

• Supports up to 1 Gbps

• Cost-effective

Best for:

• Basic networking

---

4. Cat6 / Cat6A RJ45 Connector

Features:

• Supports up to 10 Gbps

• Improved crosstalk performance

Best for:

• High-speed networks

• Enterprise applications

---

5. Shielded RJ45 with Metal Housing

👉 Enhanced durability and EMI protection

Used in:

• Harsh environments

• High-frequency applications

---

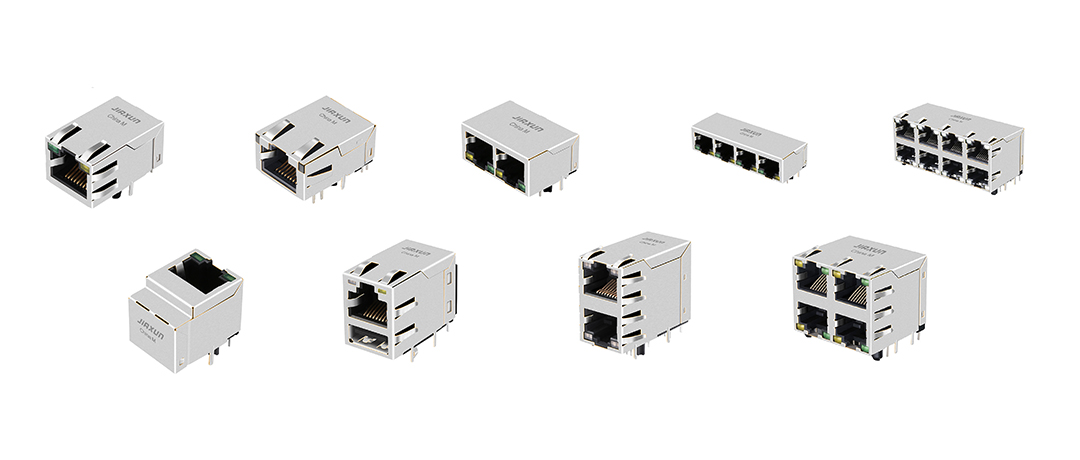

6. RJ45 Connector with Integrated Magnetics

👉 Also called MagJack

Features:

• Built-in transformer

• Noise filtering

• Space-saving design

Best for:

• Network switches

• Embedded systems

---

7. Industrial RJ45 Connector

👉 Rugged design

Features:

• Waterproof / dustproof

• High durability

Best for:

• Factory automation

• Outdoor applications

---

RJ45 Connector Types Comparison

---

How to Choose the Right RJ45 Connector

Ask yourself:

1. Do you need shielding?

2. What speed is required?

3. What environment will it be used in?

4. Do you need integrated magnetics?

👉 Quick recommendation:

• Office → UTP Cat6

• Data center → Shielded Cat6

• Industrial → Industrial RJ45

---

Why Quality Matters

Low-quality connectors can cause:

❌ Signal loss
❌ Packet errors
❌ Short lifespan

👉 Key factors:

• Gold plating

• Contact precision

• Shielding quality

---

Looking for a Reliable RJ45 Connector Manufacturer?

At JIA XUN, we offer:

✔ Full range of RJ45 connector types
✔ Integrated magnetics (MagJack)
✔ OEM / ODM customization
✔ Strict quality control

👉 Serving global networking and industrial clients.

---

Get Free Samples & Quote

📩 Contact us for:

• Samples

• Datasheets

• Custom solutions

---

FAQ

1. What is the most common RJ45 Connector?
UTP Cat5e/Cat6 connectors.

2. Do I need shielded RJ45?
Only in high-interference environments.

3. What is MagJack?
RJ45 connector with built-in magnetics.

---

Final Thoughts

👉 Choosing the right RJ45 connector ensures stable and high-performance networking.
👉 Always match connector type with cable and application.
